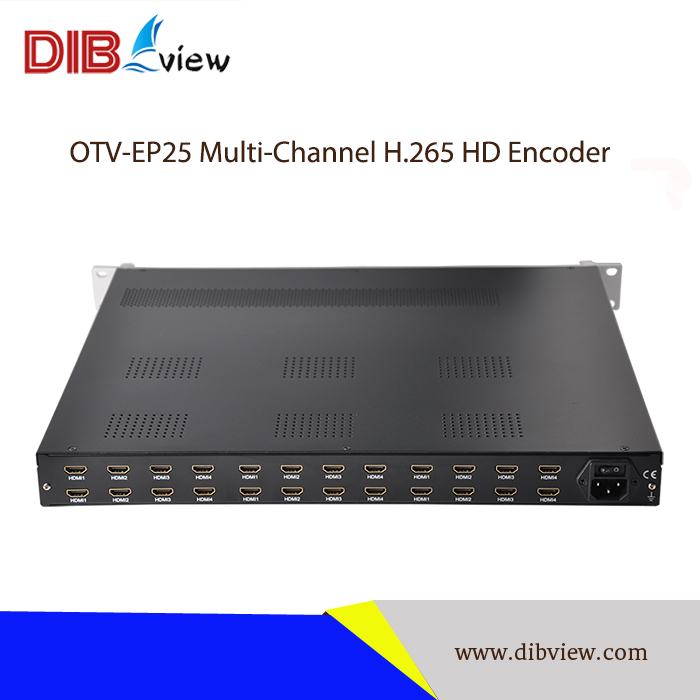

NameOTV-EP25 24ch H.265 HD Encoder
Brand Name:Dibview
Model Number:OTV-EP25
Product name:24ch H.265 Encoder
Input:4/8/12/16/20/24 HDMI, 2DVB-ASI
Output:IP, 2DVB-ASI
Video Encoding:H.265/H.264
Protocols:Support UDP RTP Multicast Unicast
Audio Encoding:MPEG-1 Layer 2, AAC, AC3 (optional)
IP Output:512 SPTS/4MPTS
Application:Digital TV Head-end System
key words:24ch H.265 Encoder

Product Description


OTV-EP25 Multi-Channel HD Encoder with H.264/H.265 video encoding mode by default, H.265 high compression ratio can help to save bandwidth up to 75% than H.264. Besides that, this device can provides MPTS/SPTS/ASI independent multiplexing output and IP output channel switch.


With PSI/SI technology to modify the audio and video PID information of the output program, OTV-EP25 Multi-Channel HD Encoder also supports to insert a NIT information table into the WEB to achieve better compatibility with the backend devices. OTV-EP25 supports to edit program number and name of the output video stream, and the logical channel number setting can also be added to the encoder.


Overall Dibview 's encoder/modulators with OSD/Logo/QR code Insertion function, which perfectly suit any professional SD/HD Video company, including TV Channels, Live broadcasters, Government applications, Hotel, Campus, Entertainment facilities, education broadcasting systems at schools and government buildings and many others. Many outstanding features are integrated into OTV-EP25, In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end (CATV), digital TV broadcasting (DTV), and OTT IPTV streaming projects.

Key Features:

  • Distribute up to 4/8/12/16/20/24 channels of HD Programs Content

  • H.264/H.265 video encoding compression

  • Two separate ASI input for External TS Multiplexing

  • ASI Multiplexing Inputs and Outputs: Compatible with traditional ASI Ports connected in Digital TV head-end Solution

  • Simultaneously MPTS and SPTS over UDP/RTP IP out

  • Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2, AC3

  • Audio gain adjustment supported

  • Selectable the Value of PCR PID same as Video PID

  • CBR mode supported

  • Selectable LOGO,QR code, OSD insertion for every, All or Each module of local channel

  • Support TTL editing

  • LCN (Logical Channel Number) support

  • PSI/SI editing & inserting

  • PID Remapping & Filtering

  • Support PCR correct and PCR interval adjusting

  • Control via web management, and easy updates

Technical Specifications:



Video Specifications

Input Resolution:

1920×1080@60P, 1920×1080@60i,

1920×1080@50P, 1920×1080@50i,

1280×720@60P, 1280×720@50P



Output Resolution:

1920×1080@30P, 1920×1080@25P,

1280×720@30P, 1280×720@25P,




H.265/MPEG-4 AVC/H.264

Bit-rate: 1Mbps~13Mbps

Rate Control: CBR

GOP Structure: IPPPP (P Frame adjustment, without B Frame)

Audio Specifications

Audio compression: MPEG-1 Layer2, LC-AAC, HE-AAC (v1&v2).

Dolby Digital AC3(optional)

Sampling rate: 48KHz

Sampling accuracy: 24-bit

Encoding bit rate: 64Kbps~320Kbps

Stream Output

RJ45 Port 100/1000M GbE Port

Simultaneous output with N*SPTS (from HDMI channels)

and 1*MPTS (modulation or MPTS channels)

MPEG-4 TS over UDP, unicast, and multicast streaming


Configurable packet size(2-7)x188Bytes, Filter Null Packet

Total Bitrate: 1-200Mbps (Should be More than Encoding bitrate)

ASI Input

Connector: BNC female, 75Ω

Signal Level: 200-800mVp-p

Packet Length: 188 bytes

Maximum bit-rate per port:≤100Mbps

Number of Input Ports: Dual separate ASI ports

ASI Output

2 Separate ASI, (Select from modulation Channels or MPTS channel)

75Ω, BNC, 188Bytes

MPEG-4 TS over DVB-ASI (EN 50083-9)


Local interface: LCD+control buttons

Remote management: Web/NMS

NMS interface: RJ45, 100M

Language: English

The Working Environment

Dimension: (WxLxH) 482mm×380mm×44mm

Gross Weight: 4.6KG

Temperature: 0 to 45(For working), -20 to 80(For storing)

Input Voltage: AC 100V-220V±10%, 50/60Hz
