NameDibview OTV-NSH NDI HX H.265 H.264 HDMI SDI Streaming Encoder Decoder With USB Video Recording
Brand Name:Dibview
Model Number:OTV-NSH
Product name:H.265 H.264 HDMI SDI Streaming Encoder Decoder With USB
Input Network Streams:HDMI SDI 3.5mm Line-In Audio can be used simultaneously
HDMI 3.5mm Line-Out Audio can be used simultaneously:Yes, support
HDMI SDI Input:Yes
Support:USB
Video encoding:H.264/H.265
Application:Hotel

Product Description

Overview:

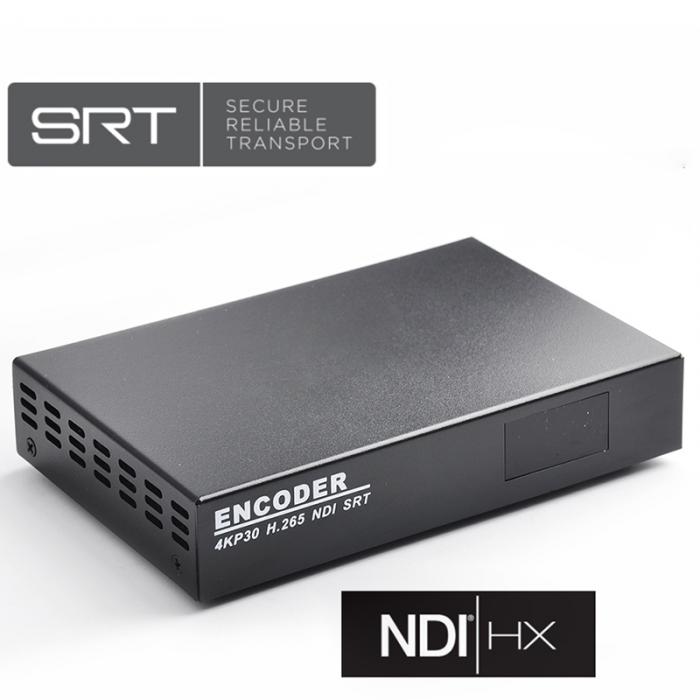

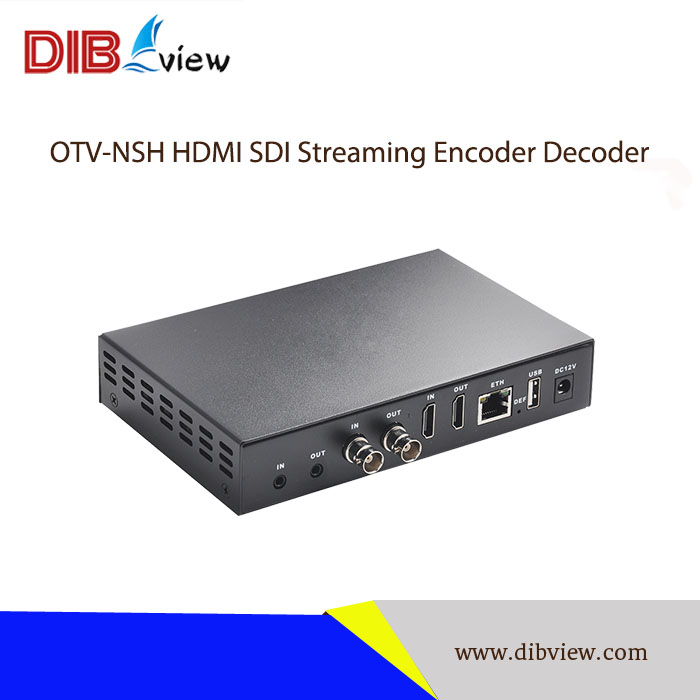

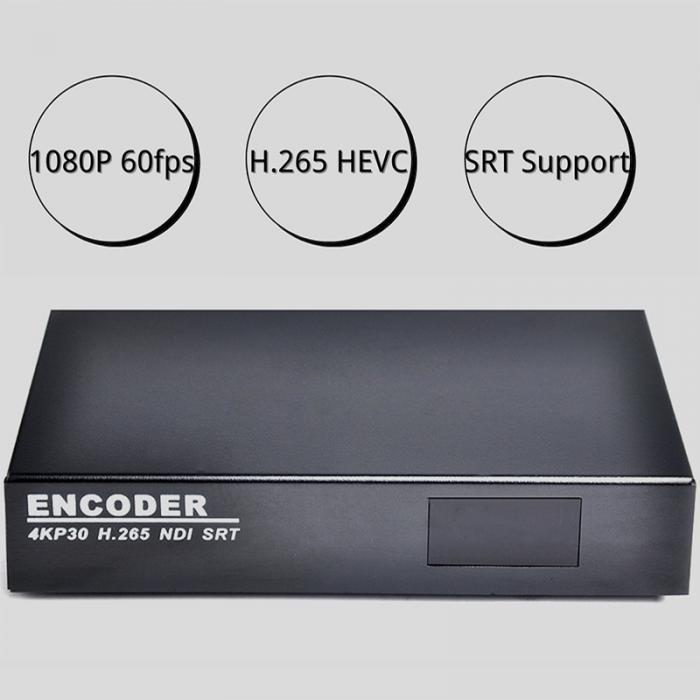

Dibview OTV-NSH NDI HX H.265 H.264 HDMI SDI Streaming Encoder Decoder With USB Video Recording.



It features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/H.264/AVC. As encoder, it suppprt video source through the local USB files, HDMI/SDI video or over Ethernet in normal protocol of HTTP/HLS/RTSP/RTP/UDP/RTMP/RTMPs, or in NDI HX streams for use with other NDI HX compatible systems, converted it to IP.



Meanwhile, It support Decoding function, IP streams or NDI HX streams input , HDMI out.



OTV-NSH NDI HX H.265 H.264 HDMI SDI Streaming Encoder Decoder support 1 Channel of 1080P H.265 video card and stereo audio simultaneously, build-in self-developed full frame rate de-interlacing technology.



OTV-NSH NDI HX H.265 H.264 HDMI SDI Streaming Encoder Decoder provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.


Key Features:

  • Support NDI HX encoding and NDI HX decoding functions. At the request of NewTek, the copyright owner, customers who need to use

    The complete NDI functions need to purchase NDI Authorization separately. If no authorization, only can be use 30 minutes but

    No affect on other functions.

  • Audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

  • Encoding & Transcoding& Decoding multi-function in one device

  • LED Screenshot content can be custom in web management

  • Embedded hardware encoder

  • USB Interface can be used for WIFI, Recording storage, 4G LTE module

  • H 265,H 264 Main profile

  • HDMI Input: Maximum support 4K@30fps

  • SDI Input:3G-SDI,Maximum support 1080p@60fps

  • HDMI Output: Maximum support4K@60fps,can be HDMI loop out, can be decoded HDMI out

  • SDI Output: SDI Loopout

  • Signal Source Resolution 4K 30fps, 1080P, 720P, 1080i, 720i

    1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×4801600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480

  • Support High-bandwidth Digital Content Protection (HDCP)

  • Coded Format:H.264 Baseline Profile

    H.264 Main Profile

    H.264 High Profile

    H.265 Main Profile

    MJPEG/JPEG Baseline

  • Decoding Format: H.264 MJPEG

  • Audio output format AAC,MP3,PCMA,MPEG-2

  • Coding Resolution: 4k,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480

  • Frame Rate:1-60 Adjustable

  • Support 1-channel decoder HDMI output and multiple live streams mix video output

  • Support CBR,VBR,AVBR

  • Highest code rate 40Mbps

  • Automatic scene change detection technology, improve the coding effect

  • Every channel is inserted with de-interlacing scanning algorithm

  • Support use space pre-treatment and block filtering technology for moving scenes

  • Support a variety of common platforms such as NDI, wowza, FMS, youtube, facebook, NJ and so on Web-based management.


Technical Specifications:

Item

Description

Performance Parameters

Main Chip:HI3521DV100

CPU: ARM Cortex-A7@1.3GHz 32KB I-Cache, 32KB D-Cache

RAM: 512MB DDR3

Flash: 256MB SPI Nand Flash

Input Interface: HDMI 1.4 Highest Support 4K@30fps

                          SDI 3G SDI Support 1080P@60fps

Resolution: 4K 30fps, 1080P, 720P, 1080i, 720i

1600x1200, 1440x900, 1366x768, 1280x1024, 1280x768, 800x600, 640x480

Video compression: H.264 Main Profile, H.264 Baseline Profile, H.264 high Profile, H.265 main Profile, Mjpeg/JPEG Baseline

Decoding format: H264, H264, MJPEG

Encoding Resolution:  Main 4K, 1080P, 720P, 360P, Sub 720P, 360P

Frame rate: 1~60 adjustable

Multiple reference frame: Stand by SmartP, DualP

Maximum bit rate: 40Mbps

Rate Control: CBR/VBR/AVBR/FIXQP/QPMAP

Audio Processing

Input Interface: HDMI, SDI 3.5mm Line-in, Audio can e used simultaneously

Output Interface: HDMI, 3.5mm Line-out, Audio can be used simultaneously

Audio compression: AAC, MP3, MPEG2, PMCA, PMCU

Sampling Rate: 48KHz, 44.1KHz, 32KHz, 16KHz, 8KHz

Network Parameters Management

Wired Interface: 10/100/1000M RJ45 Network Port

Wireless Interface: Support USB Wifi Module, support USB 4G Module

Transfer Protocol: SRT, NDI, RTSP, RTMP, HTTP, HLS, UDP Unicast Multicast

ONVIF: Support

The Working Environment

Voltage: 12V 1A

Consumption: Less than  8W

Operating temperature:  0~45℃(operation), -20~65℃(storage)

Dimensions: 170mm(W)*110mm(D)*30mm(H)

Net weight: about 0.4kg/pc

Software Function

Basic skills: WEB configuration, parameter hot update, firmware upgrade, network setting, password management


Special effects overlay: Logo, watermark, subtitle, rolling caption, mosaic, time stamp


Video mixing: Picture-in-picture, 4 pictures, 9 pictures, etc., support real-time switching, support mixing


Resource management: Customize fonts, upload watermark logo images

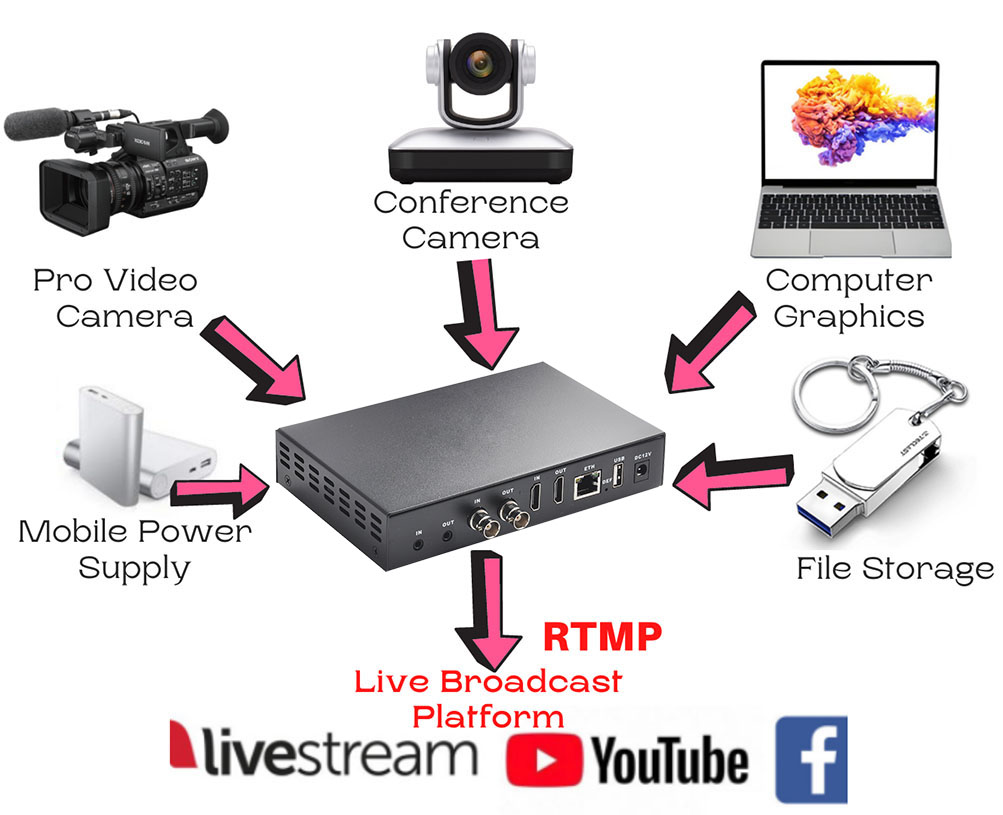

Applications:

Network video and audio broadcast based on IP protocol.

Suitable for all kinds of video conference software developers, system developers to do the acquisition end

Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions

Live broadcast for various IPTV Server/live platform(Wowza/Youtube/Ustream/CDN/......)

Applicable to video live broadcast business of government, media industry & other portal

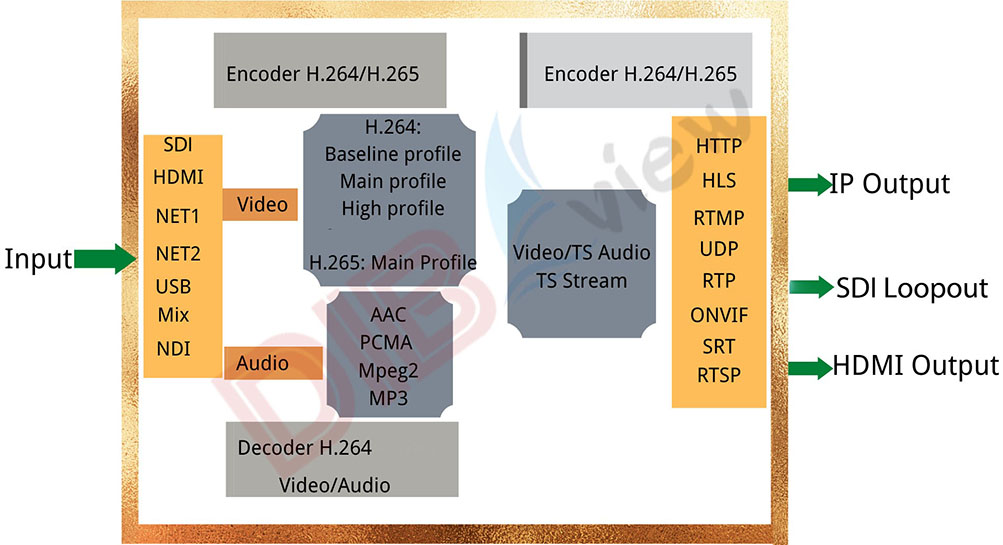

Key Diagram:

Key OTV-NSH Diagram 1003.jpg
