NameOTV-MT26 DVB-T DVB-T2 Modulator
Product Name:OTV-MT26 DVB-T DVB-T2 Modulator
Input 1:4 ASI input ports
Input 2:TS over IP input (UDP)
Output:DVB-T2 RF output
Output signal bandwidth:5M, 6M, 7M, 8MHz
RF Output Level:-25~+3 dBm, 0.1db stepping
RF Range:30~999Mhz, 1hz stepping
Mode:Mode A: Single-PLP
Application:DVB-T2 Project

Product Description


OTV-MT26 DVB-T2 modulator is our new product developed complying with the DVB-T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold.


OTV-MT26 DVB-T2 modulator also supports single-PLP and multi-PLP (option) to receive T2-MI from DVB-T2 gateway through its ASI and IP port. (This function is also option.)

Moreover, OTV-MT26 DVB-T2 Modulator can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T2 STB.

Key Features:

  • 4 ASI input ports (for 1 channel TS input with 3 ports for backup)

  • DVB-T2 RF output

  • TS over IP input (UDP); T2-MI over IP input (Option)

  • Fully complying with EN302 755 standard

  • 10MHz input/loop out, 1PPS input/loop out

  • Supports single PLP, multi-PLP (Option) , Support MISO and SISO

  • Support QPSK/16QAM/64QAM/256QAM (normal or rotated)

  • Support TS format: T2-MI (Option) or TS (Mode A)

  • High performance output: MER>43dB, shoulder level>56dB

  • Output signal bandwidth: 5M, 6M, 7M, 8MHz

  • Support MFN and SFN (Option) net mode

  • Supports non-linear and linear digital pre-distortion (DPD) (To Video) for optional

  • RF output level: -25~+3 dBm, 0.1db stepping

  • Constant temperature crystal oscillator, as high as 0.1ppm stability

  • Keyboard operation and LCD display

  • Web Network management system(GUI)

Technical Specifications:



IP Input

T2MI input over ASI and IP (Option), 100 Mbps Ethernet port

TS input over ASI and IP port (UDP)

10MHz reference clock input and loop out, BNC interface

1PPS input and loop out, BNC interface

RF Output


N Type, 50ΩImpedance

RF range

30~999Mhz, 1hz stepping

Output level ATT

-25~+3 dBm, 0.1db stepping


> 43db

Shoulder Level


Modulation Part


EN302 755


Mode A: single-PLP;

Mode B: multiple-PLP (Option)

PLP Constellation

QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated)

L1Post Constellations


FEC Length

Short(16K), Normal (64K)

FEC Rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Pilot Pattern

PP1 - PP8

Guard Interval

1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4

FFT Mode

1k, 2k, 4k

8k, 16k, 32k (normal or extended)


5MHz, 6MHz, 7MHz, 8MHz

Net Mode

MFN, SFN (Option)

System Management

LCD display, keyboard and web Network management

Supporting software upgrading through network

The Working Environment


3 years with free telephone support

Power Supply

AC 100V-220V±10%, 50/60Hz

Operation/Storage temperature

-10 -50°C/-20-80°C


482mm x 410mm x 45mm

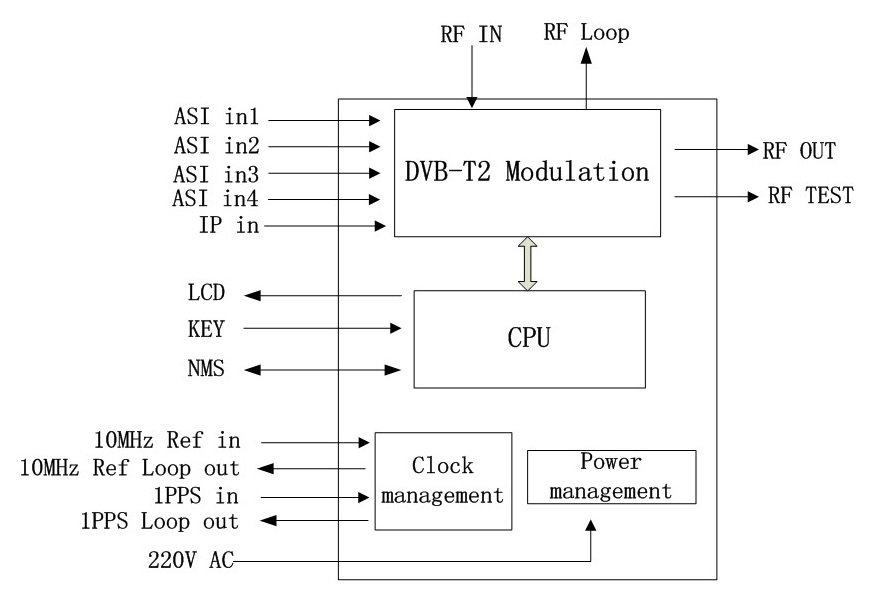

Key Diagram:
