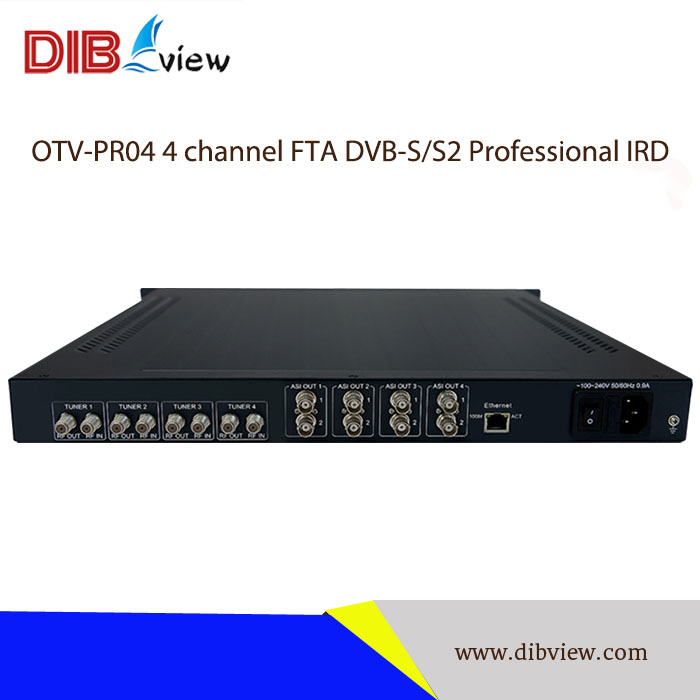

| Name | OTV-PR04 Professional 4 Channel FTA DVB-S2 IRD |
| Product name: | OTV-PR04 Professional 4 Channel FTA DVB-S2 IRD |
| Brand: | Dibview |
| Input: | 4DVB-S/S2 |
| Loopout: | 4DVB-S/S2 |
| Output: | 8ASI (4 groups) |
| Input Frange: | 950~2150Mhz |
| Application: | DTV Heandend System |
Product Description
Overview:
OTV-PR04 4-channel FTA DVB-S/S2 Professional IRD supports 4*DVB-S/S2 RF input and 4*DVB-S/S2 RF Loopout. With current world-class advanced QPSK/8PSK demodulation technology, it can receive all DVB/MPEG-2 compatible digital satellite television programs and output 8-channel (4 groups) ASI TS streams.

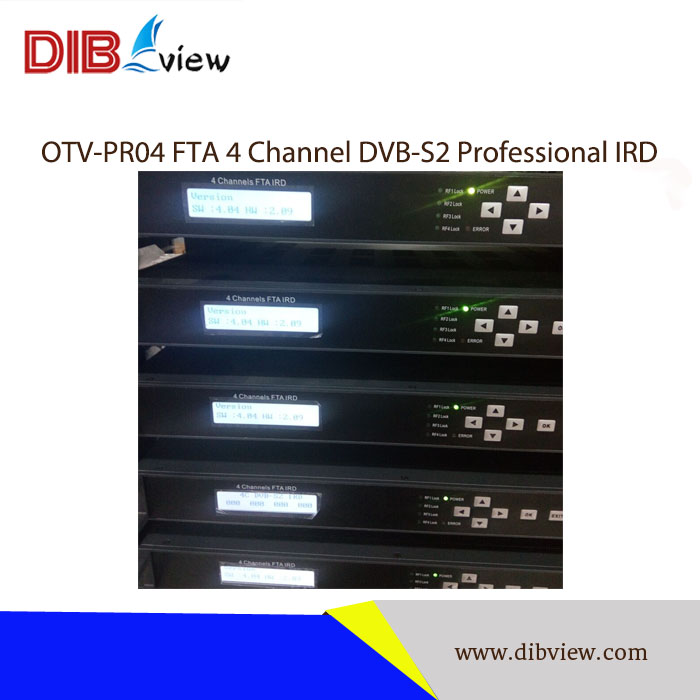

OTV-PR04 4-channel FTA DVB-S/S2 Professional IRD suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Key Features:
4*RF (DVB-S/QPSK, DVB-S2/8PSK) input
4*RF DVB-S/S2 Loopout
8*ASI (4 groups) output
LCD/Keyboard control by front panel
Easy-to-Use System Management via Web
Technical Specifications:
Item | Description |
Inputs | |
Input: 4*RF, F-head Input Frequency: 950~2150Mhz Modulation Mode: DVB-S/S2 Symbol Rate: 1~45Mbaud/s Error-correction Codes: RS coding 188/204 Input: 4*RF, F-head | |
Output | |
ASI: 8*ASI (4 groups) Looput: 4*RF DVB-S/S2 Output level: =115dBμV Impedance: 75Ω Output return loss: =12dB | |
Management | |
Interface | RJ-45, 10/100 Base-TX, Keyboard+LCD |
Remote Control | Web management |
Language | English |
The Working Environment | |
Power Supply | AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz |
Operation temperature | 0 -50°C |
Storage temperature | -20-80°C |
Dimensions | 482mm*410mm*44mm |
Weight | 4.5Kg |

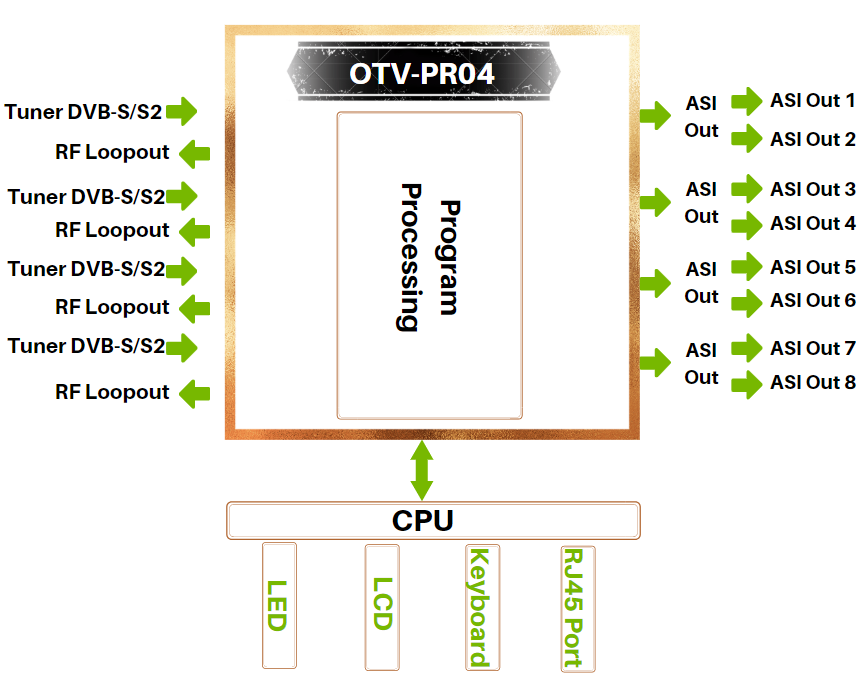

Key Diagram:
