Your Location : Home >> Product Center >> H.265 HEVC Encoder >> H2658 Multi-Channel HDMI H.265 HEVC Encoder with good price

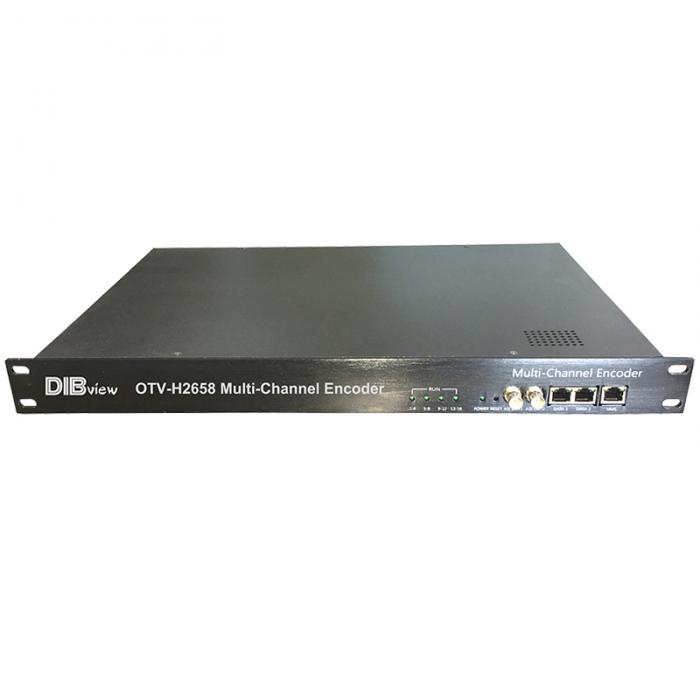

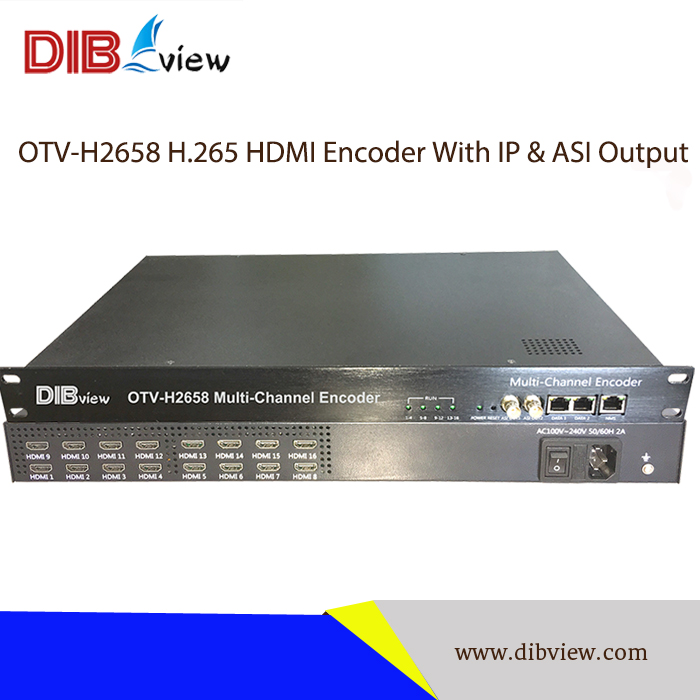

Name	H2658 Multi-Channel HDMI H.265 HEVC Encoder with good price
Brand Name:	Dibview
Model Number:	H2658
Product Name:	H2658 Multi-Channel HDMI H.265 HEVC Encoder
Input:	16HDMI
Input 2:	32 IP Streaming
Video Format:	Up to 1080P 60fps
Encoding mode:	HEVC/H.265 High Profile, MPEG-4 AVC/H.264 Baseline/Main Profile/ High Profile
Support:	LOGO,QR code, OSD insertion
Output:	1 MPTS/16 SPTS over 2ASI Port or GbE IP Port

Product Description

Order Guide:

4*HDMI IN, 2*ASI output, 1 MPTS and 4 SPTS output

8*HDMI IN, 2*ASI output, 1 MPTS and 8 SPTS output

12*HDMI IN, 2*ASI output, 1 MPTS and 12 SPTS output

16*HDMI IN, 2*ASI output, 1 MPTS and 16 SPTS output

Overview:

H2658 Multi-channel HDMI H.265 HEVC Encoder can provide up to 16 channels of superior quality constant bitrate CBR/VBR/AVBR/FIXQP/QPMAP HEVC/H.265, MPEG- 4 AVC (H.264) with AAC(optional), AC3 Bypass and MPEG-1 L2 audio.

Very flexible configurable the number of channels inputs to plug-in HDMI board. It also support up to 32 IP (SPTS/MPTS) input, and 2*ASI output, 1 MPTS and 16 SPTS via GbE IP Port output (Unicast/multicast) Mutual mirror output. This HDMI Video encoder supports H.265 encoding, which is ideal choice for customers who need lower bit rate video transfer over LAN networks, whilst maintaining high quality video.

H2658 Multi-channel HDMI H.265 HEVC Encoder used to stream video and audio across any IP network, can be widely used in DTV, OTT/IPTV, Mobile TV multi-screen applications, CATV systems, monitoring systems and etc...

With it’s powerful program processing capabilities and leading technology advantages, H2658 Multi-channel HDMI H.265 HEVC Encoder meets the market demands such as broadcasting, VOD, education, medical care, health center, live broadcast and so on, help to save bandwidth resources for operators, and while also providing users with a better viewing experience.

Key Features:

Video encoding mode support HEVC/H.265 High Profile,
MPEG-4 AVC/H.264 Baseline/Main Profile/High Profile
Support up to 16 HDMI Full HD Channels input, up to 32 IP input (MPTS/SPTS)
Simultaneous outputs via 1 MPTS/16 SPTS over 2*ASI Port or GbE IP Port
Video bitrate modes support: CBR/VBR/AVBR/FIXQP/QPMAP
Output stream supports real-time monitoring
Audio encoding mode support MPEG-1 Layer 2, AC3
Bypass, LC-AAC, HE-AAC (AAC optional)
Support LOGO,QR code, OSD insertion
MPTS stream supports overflow monitoring
Empty packet filtering
PSI/SI editing & inserting
PID mapping & PCR correct
Support online upgrade and configuration file import and export
Easy-to-Use System Management via Web

Technical Specifications:

Item	Description
Inputs

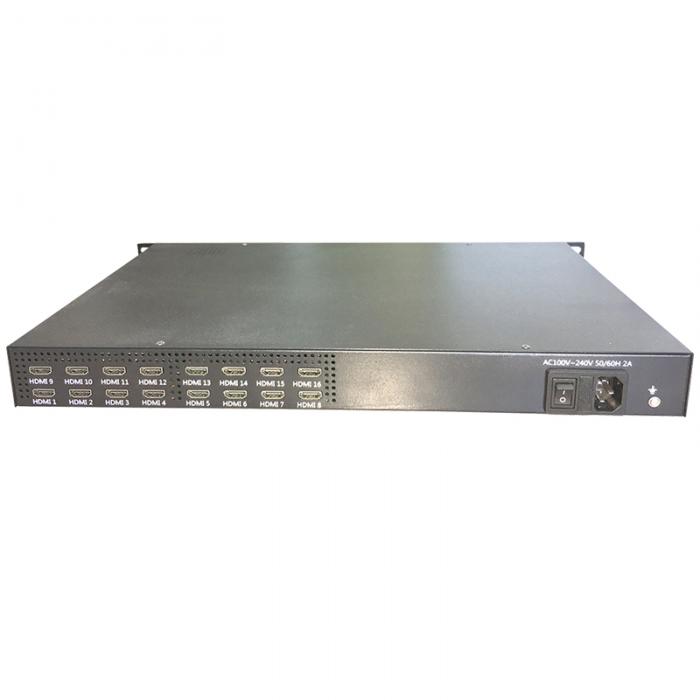

HDMI in	16 *HDMI inputs
IP Input Port	1 port, Up to 32 IP streams (MPTS/SPTS)
Video Format	Auto, 1920×1080_60P, 1920×1080_50P 1920×1080_60i, 1920×1080_50i 1280×720_60P, 1280×720 _50P 720x576_50i, 720x480
Output
IP Output Port	1port, 1000M base-T
ASI Output Port	2 ports (as mirror of IP output)
Bit rate	1~30Mbps(SPTS), 60Mbps(MPTS)
Data Protocol	MPEG TS over UDP, Unicast, and Multicast streaming 7x188 bytes per packet Filter Null Packet
Video Encoding
Resolution	Auto, 1920×1080_60P, 1920×1080_50P 1920×1080_60i, 1920×1080_50i 1280×720_60P, 1280×720 _50P 720x576_50i, 720x480
Comply to the International standard	H.265 (ISO/IEC 23008-2 HEVC), MPEG-4 AVC/H.264 (ISO/IEC 14496–10) GY/T 257.1-2012, AVS P2 Profile (GB/T 20090-2006 standard), GY/T 170-2001, GYT 271-2013
Encoding mode	HEVC/H.265 High Profile MPEG-4 AVC/H.264 Baseline/Main Profile/ High Profile
Bit rate	0.2～40 Mbps
Bit rate mode	CBR/VBR/AVBR/FIXQP/QPMAP
Video preprocessing	Deinterlacing, 3D noise reduction, sharpening 8 area OSD overlay Anti-flicker for output videos and graphics
Audio Encoding
Sampling Rates	48KHz
Bit rate	64Kbps~384Kbps (each channel)
Encoding Format	AC3 Bypass, MPEG-1 L2, AAC
Quantization	24bit, HDMI embedded
Management

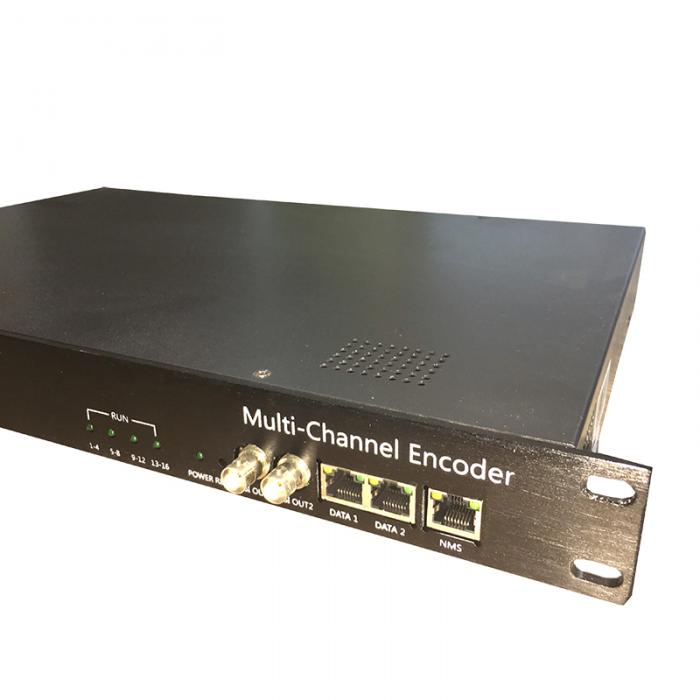

Interface	2RJ-45, 1000 Base-T, 1 Data port
Remote Control	Web management
Language	English
The Working Environment
Power Supply	AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz
Operation temperature	0 -50°C
Storage temperature	-20-80°C
Dimensions	482mm x 410mm x 44mm
Weight	4.5Kg
