Overview:

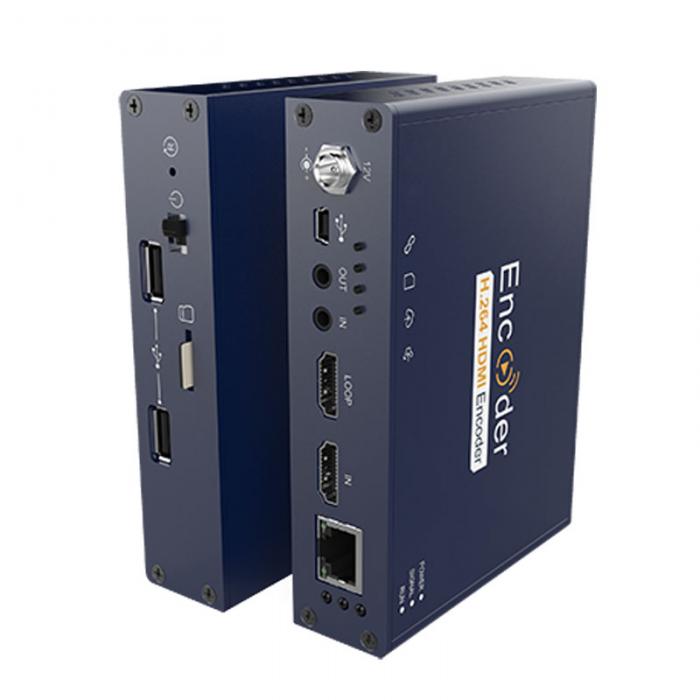

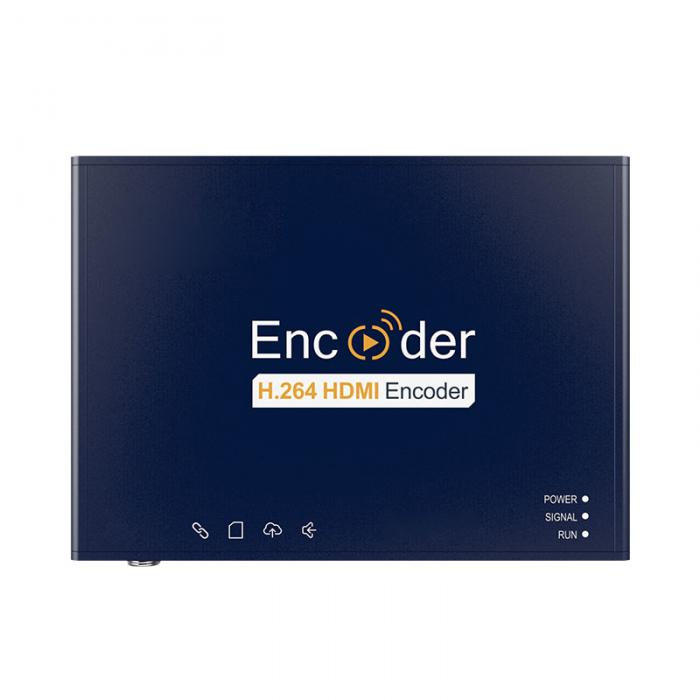

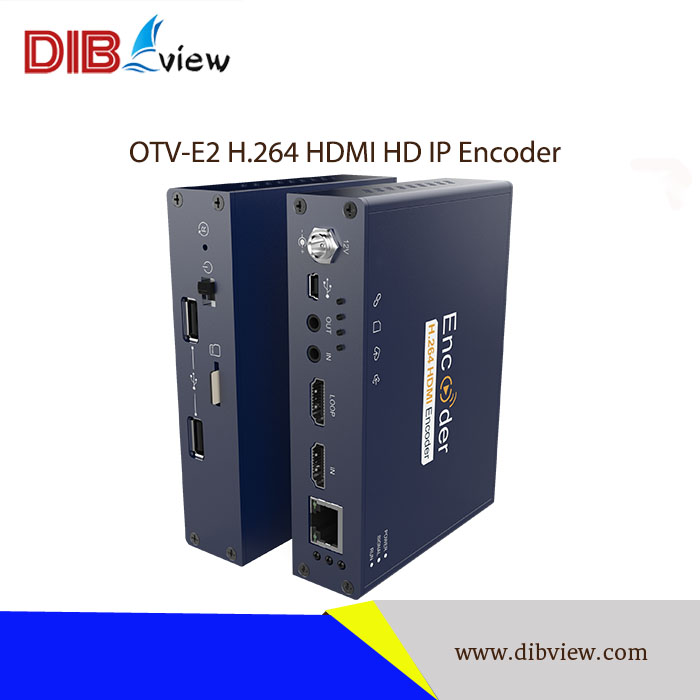

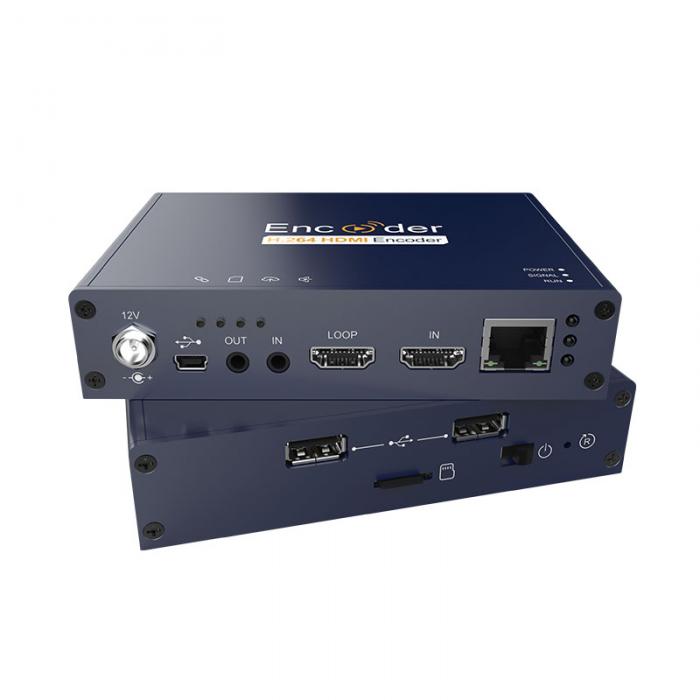

OTV-E2 H.264 HDMI TO IP Video Streaming Encoder can deliver H.264 encoding HDMI video streams of independent IP output to various servers for live broadcasting application, such as Wowza media server, windows media server, social media platform, and some other streaming servers based on RTP/RTSP/RTMPs/SRT/HLS/TS/Onvif/SIP protocols.

OTV-E2 H.264 HDMI TO IP Video Streaming Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV system application, remote multi-window video conference, remote education and remote medical treatment, live broadcasting.

Not only 1-channel HDMI, we also produce multi-channels HDMI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.

Key Features:

H.264 video encoding

Full live platforms supported

SDK provided

Branded chip

HDMI loop monitoring

Low bandwidth transmission

Voice intercom

SRT supported

Cost-effective price

Technical Specifications:

Product Advantage:

High bandwidth adaptability, makes it possible to transmit high definition, low-latency, non-padding image under low bit network.

With branded chips solution together with video dynamic noise reduction and image enhancement technology,

it can realize good encoding image under low bit transmission. Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network.

Advanced video buffering technology and FEC technology ensures video encoding delay ≤ 67ms adjustable and smooth transmission.

Adjustable bit rate from 64kbit/s~40Mbit/s.

Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.

Powerful streaming media service function, supports RTSP/ RTMPs/TS /Onvif/ SIP/ GB/T281 and SRT protocols.

RTP/RTSP/RTMPs/ HLS/TS/Onvif/ SIP and some other streaming media protocols supported for live broadcast on Facebook,

YouTube, Ustream, Twitch, Wowza etc or security platform/NVR system.

SRT supported to ensure secure and reliable transmission.

Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.

Portable size, image and characters overlay supported with functions of voice intercom, NAS storage, loop monitoring etc.

Portable and low power consumption makes it 24 hours continuous working available.

Capable with customized text and image overlay function, which can be displayed at any position on the screen.

Audio embedding encoding supported, with voice intercom function (need to deploy voice. intercom software).

Supports NAS network storage

With video real-time loop function, there is no delay and convenient for live monitoring.

Strong flexibility to support secondary development, customized service available

Open API programming, SDK provided for second development.

Customization service available is based on client's needs.

Applications:

DTV & Professional Broadcasting Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Events Streaming

Government, Education, Healthcare and Music

Digital Signage Project

Public Security Video Monitoring
