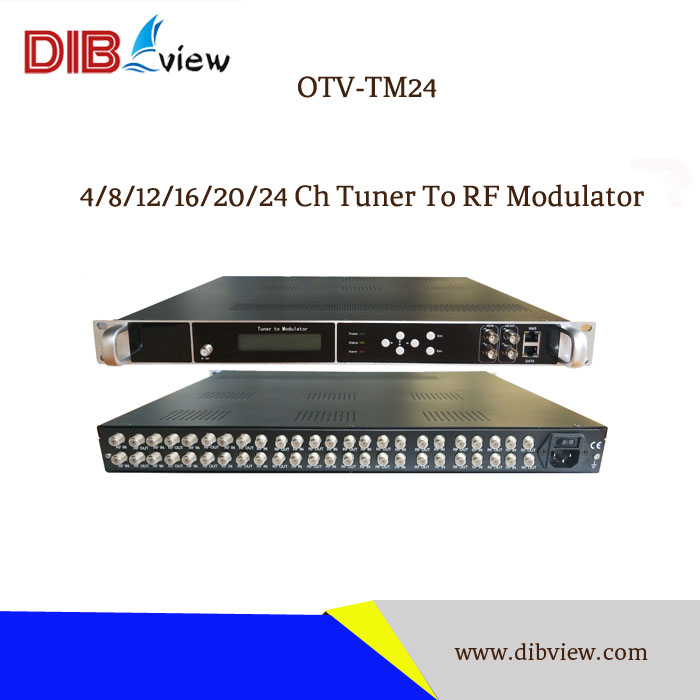

| Name | OTV-TM24 4/8/12/16/20/24 Ch Tuner To RF Modulator |
| Brand: | Dibview |
| Model Name: | OTV-TM24 |
| Input: | 24 FTA Tuners |
| RF Tuner: | DVB-T/DVB-C/DTMB/ISDB-T/ATSC |
| Output: | DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation |
| RF Carrier out Number: | 4/8Carrier RF Out |
| Support: | 4MPTS and 256SPTS over UDP/RTP IP out |
| ASI Input: | Two separate ASI input for External TS Multiplexing |
Product Description
Overview:
OTV-TM24 4/8/12/16/20/24 Channel Tuner To RF Modulator is a high-density, modular and FTA professional TS processor equipped with 24 independent tuners, which can be either of DVB-S2X/DVB-S2/S, ATSC types. and option modulation (DVB-C/ DVB-T/ISDB-T/ATSC/DTMB) to convert Video/Audio signals into RF over exist Coax Cable distribution. It provides a best-of-class gateway platform for Digital TV Owners and IPTV operators.
OTV-TM24 4/8/12/16/20/24 Channel Tuner to RF Modulator is a head-end interface conversion device and Routes Any or All Transport Streams via IP Output Port by 256*SPTS and 4*MPTS channels simultaneously. It is integrated with tuner demodulation with ASI input and gateway function, which can demodulate from 24 tuners and directly convert the TS from DVB-ASI, then output the IP package through different IP address and ports.
OTV-TM24 4/8/12/16/20/24 Channel Tuner to RF Modulator enables an all-IP Head-end architecture, resulting in a more scalable and lower-cost transition to IP-based services. It distribute any HD and SD of unencryped Tuners Channels to unlimited TVs over the existing TV coax cables with real time perfect quality at any distance. This is an ideal solution for environments where you have a large number of air Channel, and used largely to Medium-Scale IPTV, Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast environments in limited budget severely.
Used in some of the most famous ballparks in the world, this is an ideal solution for environments where you have a large number of displays, such as stadiums, entertainment facilities, or broadcast environment. This Tuner to RF Modulator is designed especially for high channel density environments where Rapid deployment, Easy management and compatibility are critical.
Key Features:
Distribute Up to 24 FTA Tuners over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
Selectable DVB-S2x/DVB-S2/DVB-T/T2/DVB-C/ ATSC-T/ISDB-T free to air Tuners inputs
Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation, 4/8*Carrier RF Out
Two separate ASI input for External TS Multiplexing
Simultaneously 4*MPTS and 256*SPTS over UDP/RTP IP out in Tuners Gateway
4 separate multiplexing and Up-converter modulating adjacent carrier out
Selectable the Value of PCR PID same as Video PID
LCN (Logical Channel Number) support
PSI/SI editing & inserting
PID Remapping & Filtering
Support PCR correct and PCR interval adjusting
Superior Shoulders and Excellent modulation quality MER
Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≤87600 Hours
Easy-to-Use System Management via Web
Low Cost per channel–Competitive Price!
Technical Specifications:
Item | Description | ||||
FTA Tuner | |||||
Number | 8/12/16/20/24 FTA Tuners In/Loop Out | ||||
Tuners | DVB-S/S2/S2x/DVB-T/ATSC-T/ISDB-Tb | ||||
Connecter | F-female type | ||||
DVB-S/S2 Tuner | |||||
Input Frequency | 950-2150Mhz | ||||
Symbol rate | 2~45Mbauds(DVB-S QPSK) 1~45Mbauds(DVB-S2 QPSK) 2~30Mbauds(DVB-S2 8PSK) | ||||
Signal Strength | - 65 ~ -25dBm | ||||
FEC Demodulation | 1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-2 QPSK/8PSK) | ||||
Roll Off | 0.20; 0.25; 0.35(Only DVB-S) | ||||
Demodulation Mode | QPSK, 8PSK(Only DVB-S2) | ||||
LNB Polarity Selection Vol | 0, 13V, 18V Selectable | ||||
LNB Band Selection Tone | 0/22Khz Selectable | ||||
Input Impedance | 75 Ω | ||||
FEC (Code Rate) | 1/2,2/3,3/4, 5/6,7/8 | ||||
ATSC-T Tuner input | |||||
Frequency range | 50–860 MHz | ||||
Key reference Spec. | ATSC A/53 | ||||
Input level | -34 to +40 dBmV | ||||
Constellation | 8-VSB | ||||
Bandwidth | 6Mhz | ||||
DVB-T/T2 Tuner input | |||||
Input Frequency | 146-861Mhz | ||||
Bandwidth | 6M, 7M, 8M | ||||
DVB-C Tuner input | |||||
Type | Female 75Ω | ||||
Constellations: | QAM 16/32/64/128/256 | ||||
Frequency Range | Range: 51-859Mhz | ||||
Input Signal Level | -20 to +20dBm (64QAM) | ||||
ISDB-T Tuner input | |||||
Frequency Range | 152~862Mhz | ||||
RF input level | -70 ~ -25dBm | ||||
Constellation | DQPSK, QPSK, 16QAM, 64QAM | ||||
Banwidth | 6M, 7M, 8M | ||||
DVB--ASI input | |||||
Connector | BNC female, 75Ω | ||||
Signal Level | 200-800mVp-p | ||||
Packet Length | 188 bytes | ||||
Maximum Bit-rate per port | ≤100Mbps | ||||
Number of Input Ports | Dual separate ASI ports | ||||
Multiplexing | |||||
Maximum PID Remapping 180 input per channel PID remapping by automatically or manually | |||||
PSI/SI | SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting | ||||
Max Numbers | 4 mux for RF and 1 Mux for MPTS IP out in Modulation 4 Mpts IP out In Tuners gateway | ||||
RF Modulation | |||||
Connector | 1 Port, F-Type, 75 | ||||
Output Return Loss | 14 dB | ||||
MER | ≥40dB | ||||
RF output level | -30 ~ -10dbm,0.1db step | ||||
RF frequency | 47-860Mhz, 1KHz step | ||||
Numbers of RF Channel | 4/8 | ||||
Modulation Mode | DVB-C, DVB-T, ATSC, ISDB-T, DTMB | ||||
DVB-T Standard EN300744 | |||||
FFT mode | 2K, 8K | ||||
Bandwidth | 6M, 7M, 8M | ||||
Constellation | QPSK, 16QAM, 64QAM | ||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
DVB-C Standard J83.A (DVB-C, J83.B, J83.C) | |||||
Carrier | ANNEX A | Annex B | Annex C | ||
Constellation(QAM) | 16,32,64,128, 256 | 64 | 256 | 64/256 | |
Bandwidth(Mhz) | 8 | 6 | 6 | 6 | |
Symbol Rate(Mbaud) | 5-7 | 5.057 | 5.361 | 4.2-5.3 | |
Constellation(QAM) | 16,32,64,128, 256 | 64 | 256 | 64/256 | |
ISDB-T Standard ARIB STD-B31 | |||||
Constellation | DQPSK, QPSK, 16QAM, 64QAM | ||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||
Transmission Mode | 2K, 4K, 8K | ||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||
Code rate | 1/2, 3/4, 5/6, 7/8 | ||||
Bandwidth | 6Mhz | ||||
ATSC-T Standard 6Mhz ATSC A/53 | |||||
Constellation | 8 VSB | ||||
DTMB Standard 6Mhz GB20600-2006 | |||||
Constellation | 4QAM, 16QAM, 32QAM, 64QAM | ||||
Code rate | 0.4, 0.6, 0.8 | ||||
Guard Interval | 420, 595, 945 | ||||
Stream Output | |||||
DVB-ASI | 2 Separate ASI, 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) Selectable Mirror of Any MPTS or RF Channel | ||||
RJ45 Port | 100/1000M GbE Port Simultaneous output with 256* SPTS and 4*MPTS | ||||
(Note: In Modulation, Only 1*MPTS) MPEG-2 TS over UDP, unicast, and multicast streaming MPEG-2 TS over RTP/RTSP Configurable packet size(2-7)x188Bytes Filter Null Packet | |||||
SPTS limit selectable | 2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M, 5.7M, 7.6M, 11.5M, 23M | ||||
Management | |||||
LCD/keyboard, Web/NMS management, remote upgrading | |||||
Power off memory, saving the settings for auto-loading after reboot | |||||
The Working Environment | |||||
Warranty | 3 years with free telephone support | ||||
Power Supply | AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz | ||||
Power consumption | 55W | ||||
Operation temperature | 0 -50°C | ||||
Storage temperature | -20-80°C | ||||
Dimensions | 482mm x 382mm x 44mm | ||||
Weight | 5.5Kg | ||||

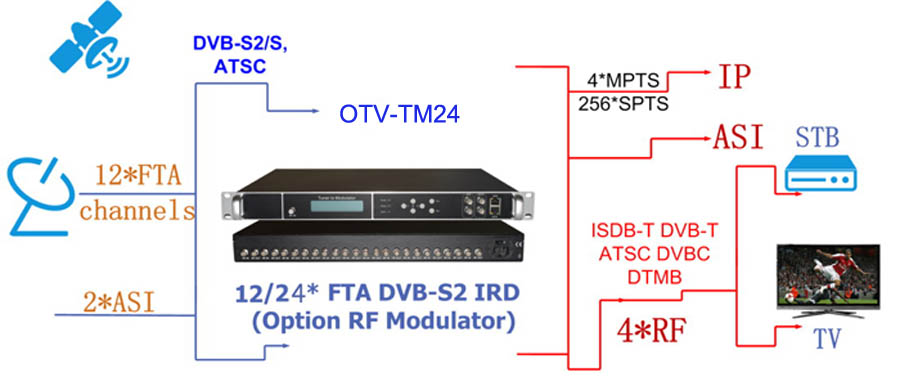

Key Diagram:
