Product Description

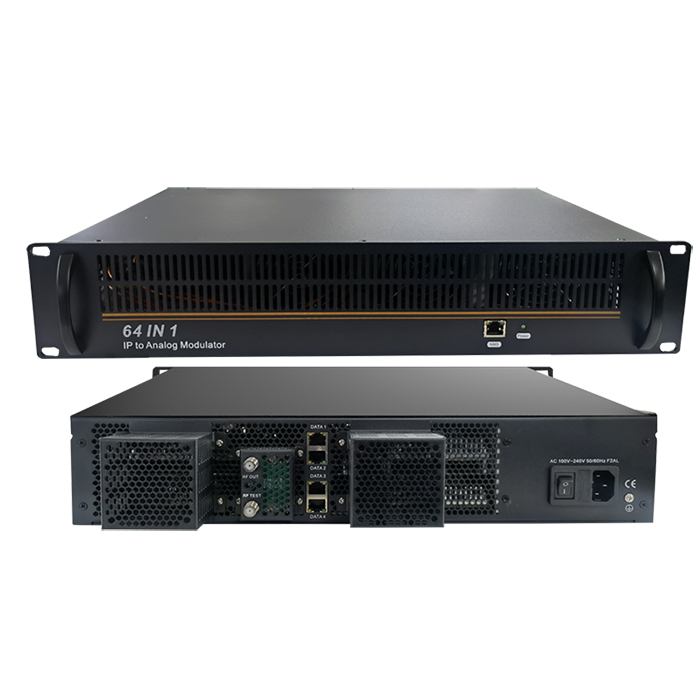

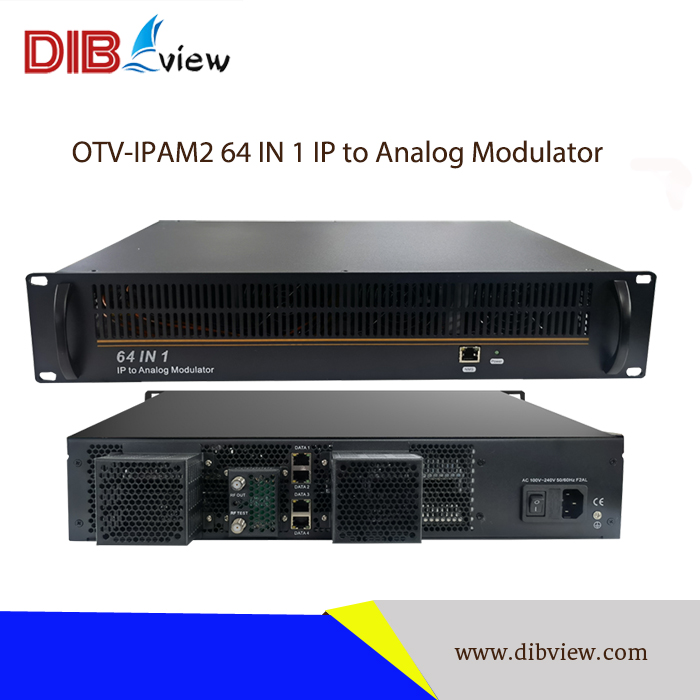

OTV-IPAM2 2U chassis high density analog modulator can ingest multiple HD or SD IP streams in either MPEG-2/ H.264 /H.265 format and convert them to PAL-B/G, PAL-DK, PAL-I, PAL-M, PAL-N, NTSC modulated RF analog outputs for delivery to legacy analog TV networks.

It can decode MPEG-2, H.264 and H.265 encoded video streams in SD and HD quality. In case of HD decoding, automatic downscaling to SD resolution is performed. Numerous audio formats and modes can be decoded and modulated on TV channels.

OTV-IPAM2 ensures a high agility inside the whole RF output frequency range. This enables full flexibility and makes the most efficient use of the available channel spectrum. This allows operators to support legacy analog tiers of service while simplifying headend equipment and power consumption and integrating with modern IP video headend architectures.

Main Features:

• 4 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input

• With 2U chassis high density

• Support H.265/HEVC H.264/AVC, MPEG-2 TS Decapsulation

• MPEG-1/2 Layer 1/2, (HE-)AAC, AC3, E-AC3 audio decoding

• Processing of up to 64 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 64 standard PAL or SECAM TV programs (SECAM is under developing)

• 64 non-adjacent or adjacent carriers output, each 32 carriers within 400MHz

• OSD (Logo and Caption) insertion for each channel, easy operation

• CC/Subtitle/Teletext

• BISS De-scrambling (Under developing)

• Support program info modify, multiple audio choose

• Automatic HD to SD downscaling

• Multi-system (PAL-B/G, PAL-DK, PAL-I, PAL-M, PAL-N, NTSC) support

• Support Brightness, Saturability, Contrast adjust

• Web-based Network management

Technical Specifications:
