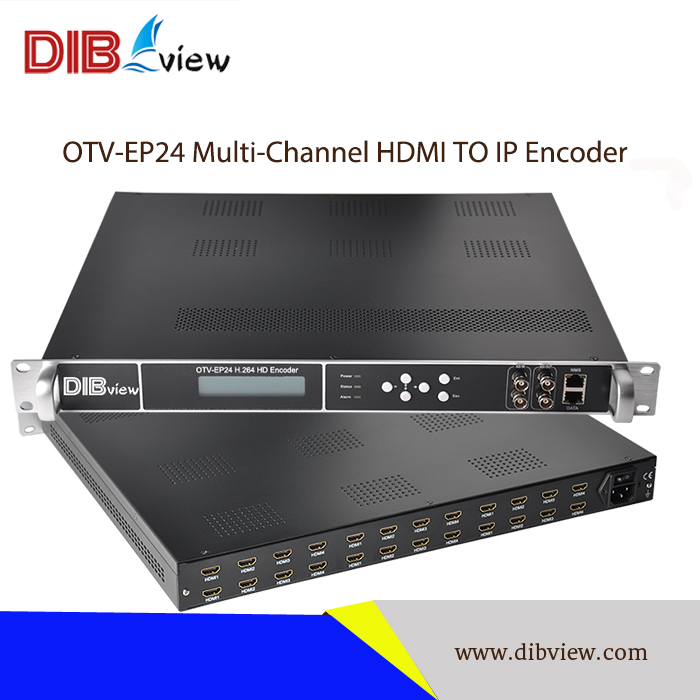

NameOTV-EP24 Multi-Channel HDMI TO IP Encoder
Brand Name:Dibview
Model Name:OTV-EP24
Video Input:4/8/12/16/20/24 HDMI
Output:IP and ASI
Video encoding:MPEG-4 AVC/H.264
Audio encoding:MPEG-1 Layer 2
Protocol:Support UDP RTP Multicast Unicast
Application:Digital TV Head-end System
HDMI TO IP:YES
VBR and CBR mode:Supported

Product Description

Overview:


OTV-EP24 Multi-channel HDMI TO IP Encoder with perfect video quality MPEG-4 AVC Encoder up to 24 HDMI sources from Satellite Receiver, PC, Blue ray, Local Playout, the latest new device which integrate encoding (MPEG-4 AVC/H.264). A key feature of H.264 HDMI video encoder is an outstanding choice of inputs, programs input via ASI can also be multiplexed and remapped to the ASI output, adding another function to the unit as an ASI multiplexer.


OTV-EP24 4/8/12/16/20/24 H.264 HDMI TO IP Encoder is designed especially for high density Distribution Video Engineering project, which can support rapid deployment. OTV-EP24 already have been picked by well known companies not only because our high performance encoders ensure 100% uptime and stability of the system, but also because they come with advanced support for stable configuration, which is critically important to all live broadcasting applications.


Overall Dibview 's Encoder perfectly suit any professional AV company, including TV Channels, Live broadcasters, AV Installers and Integrators, Government applications, Hotel, Campus, Entertainment facilities, education broadcasting systems at schools and government buildings and many others.


Key Features:


  • 4/8/12/16/20/24 HDMI input, MPEG-4 AVC/H.264 Video encoding

  • Full HD 1080P 60fps supported

  • 4/8/12/16/20/24× HDMI inputs with 4/8/12/16/20/24 SPTS and 1 MPTS output, IP output over UDP and RTP protocol

  • 2 ASI inputs for external TS Multiplexing

  • 2 ASI Independent output (optional) as copy of 1MPTS

  • Support “Null PKT Filter” function

  • Support PID Remapping/PCR accurate adjusting

  • Selectable the Value of PCR PID same as Video PID

  • VBR and CBR mode

  • Easy-to-use System Management via Web, front panel with LCD Display

  • Low-Cost Per Channel, competitive price


Technical Specifications:


Item

Description

Encoding HDMI Inputs

Numbers of Boards

4 HDMI ports per module

Up to 6 Modules in Back panel

Numbers of Ports

8; 12; 16; 20; 24 Channels

DVB-ASI   Inputs

Connector

BNC female, 75Ω

Signal Level

200-800mVp-p

Packet Length

188 bytes

Maximum bit-rate per port

≤100Mbps

Number of Input Ports

Dual separate ASI ports

Video Processing

Input Resolution

1920×1080@60P, 1920×1080@60i,

1920×1080@50P, 1920×1080@50i,

1280×720@60P, 1280×720@50P

720×576@50i,720×480@60i

Output Resolution

1920×1080@50P (for optional),1920×1080@30P, 1920×1080@25P,

1280×720@30P, 1280×720@25P,

720×576@25P,720×480@30P

Encoding

MPEG-4 AVC/H.264

Bit-rate

1Mbps~13Mbps

Rate Control

CBR,VBR

Audio Processing

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

64kbps, 128Kbps, 192kbps, 224kbps,256kbps, 320kbps,   384kbps

Audio Gain

0-255

Multiplexing

Maximum   PID Remapping 180 input per channel

PID   remapping by automatically or manually

PSI/SI

SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT  Insert

Accurate PCR adjusting

Max Numbers

4 mux  for  RF and  1 Mux for  MPTS   IP out in Modulation

4 Mpts  IP out  In Tuners gateway

Stream Output

DVB-ASI

2 Separate ASI,  (Select from    modulation Channels or MPTS  channel)

75Ω, BNC, 188Bytes

MPEG-2 TS over DVB-ASI (EN 50083-9)

RJ45 Port

100/1000M GbE Port

Simultaneous output with N*SPTS (from HD MI   channels) and  1*MPTS ( modulation or MPTS channels)

MPEG-2 TS over UDP, unicast, and multicast streaming

MPEG-2 TS over RTP/RTSP

Configurable packet size(2-7)x188Bytes

Filter Null Packet

Total Bitrate

1-200Mbps (Should be More than Encoding bitrate)

Management

LCD/keyboard, Web/NMS management,   remote upgrading

Power off memory, saving the settings for auto-loading after   reboot

The Working Environment

Warranty

3 years with free telephone support

Power Supply

AC 110V±10%,50/60Hz or   AC 220V±10%,50/60Hz

Power consumption

55W

Operation temperature

0 -50°C

Storage temperature

-20-80°C

Dimensions

482mm x 382mm x 44mm

Weight

5.5Kg
