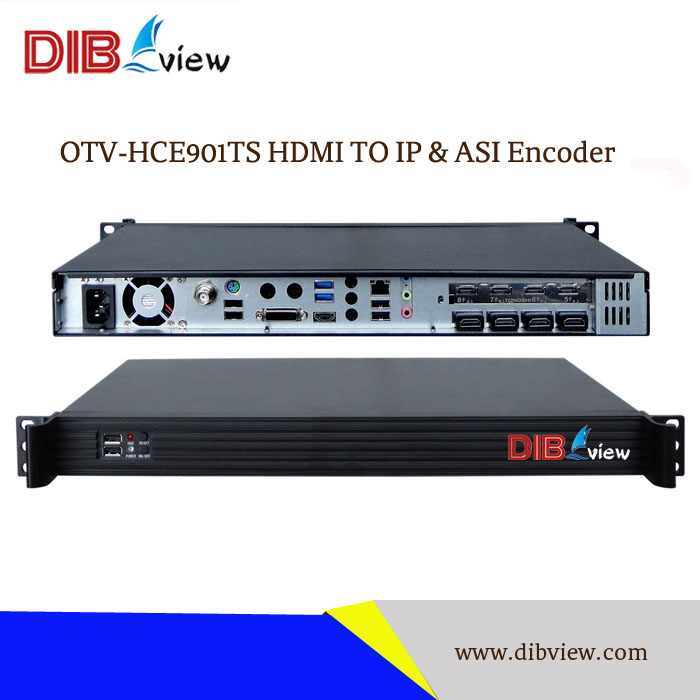

NameOTV-HCE901TS HDMI TO IP & ASI Encoder
Brand Name:Dibview
Model Number:OTV-HCE901TS
Product name::HDMI TO IP & ASI Encoder
Input:8HDMI
Protocol:RTMP/UDP/RTP/HTTP
Audio & video hashcode hidden:Yes, sure support
HDMI Input:1080i@50/60
Support:ASI & RJ45 100/1000Mbps

Product Description

Overview:


OTV-HCE901TS HDMI to IP Streamer & ASI output with Hash code remove functions, this 1U Rack-mounted video streaming encoder is designed for HDMI Video hashcode/watermark/ fingerprint/logo & Audio hashcode remove, hide or blurring on the fly. It comes with 8 channels HDMI input, by real-time H.264 encoding, output RTMP/HTTP/UDP/RTP TS and ASI for DVB.



With highly integrated hardware and software, the equipment is convenience for you send streaming to IPTV Media Streaming Server, such as wowza, Xtream Codes, or DVB modulators.



OTV-HCE901TS Encoder by compare with 2 STBs' HDMI input signals, automatically detect & hide the different video contents, such as the hashcodes/video logo/watermark, etc.. (2 HDMI input, 1 stream output) *1


Note:


a. Two STBs' output HDMI must be same channels (programs), and STB need to be same brand, same settings.

b. The encoder can only output 4 hashcode remove streams when do compare for hide watermark.


Key Features:


8 Channels normal TS streaming or 4 Channels compared Streaming, support audio & video hashcode hidden, blurry, logo add & erase for specify are.

Output streaming video quality adjustable.

Add logo for your stream supported.

With RTMP/UDP/RTP/HTTP protocols & ASI output for DVB modulators.

Software to be upgraded.


Technical Specifications:


Item

Description

HDMI Input and the suggested stream quality as below

HDMI Input

Stream Quality

Stream Resolution

1080i@50/60

Super

1920*1080P@25/30

Ultra

1440*1080P@25/30

720P@50/60

Excellent

1280*720P@25/30   50/60

Good

1120*630P@25/30   50/60

Fair

960*540P@525/30   50/60

Poor

800*468P@25/30     50/60

Mobile

480*270P@25/30     50/60

Management

Interface

ASI & RJ45 100/1000Mbps

Software

Preview & Live Stream Broadcast

OS

Linux(Centos7.5)

Display output

DVI/HDMI

The Working Environment

Power Supply

AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Operation temperature

0 -50°C

Storage temperature

-20-80°C

Dimensions

482mm x 250mm x 45mm

Weight

5.5Kg

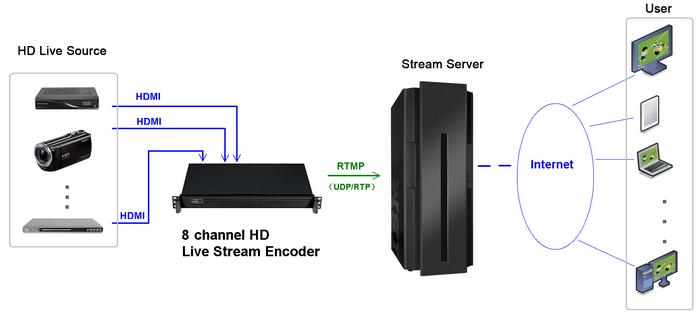

Key Diagram:
