Overview:

In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.

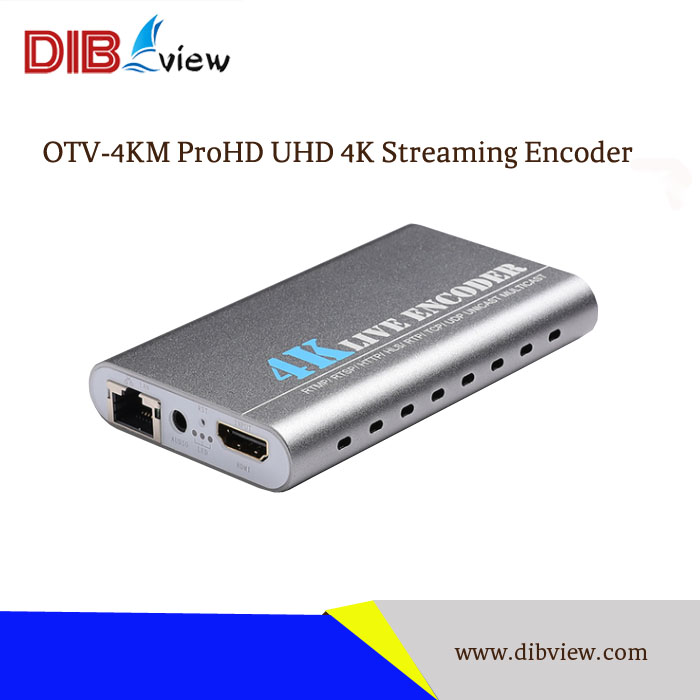

OTV-4KM ProHD UHD H.265/H.264 4K Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 4K@30fps. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.

OTV-4KM ProHD UHD H.265/H.264 4K Streaming Encoder accepts 1*HDMI input, then output 4 groups TS over IP in H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. This 4K Encoder has widely applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Key Features:

• Video Input: 1*channel HDMI in

• Video compression up to Full HD 4K@30fps

• Resolution:3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customized)

• Support Main TS stream and the sub TS stream use in different protocol.

• Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )

• Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:

• Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K

• Video bitrate Control: CBR/VBR 16KBIT/S~12MBIT/S

• Video packaging: A mode: FFMPEG, B mode: VLC

• Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)

• Support Text/ image OSD, images superimposing.

• Adjustable coordinates: 1920x1080; the font size: 8 to 72.

• Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.

• Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

• Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.

• Support encoding without video signal;

• Take effect immediately when applied the settings, don’t need to restart.

• Support one-key recovery to default setting.

• Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications

• Switchable of audio output mode: Left, right and Stereo

• Configurable of Multi-bitrate, Multi-resolution, Multi-protocol

• Providing HLS, RTSP, HTTP, UDP and RTMP protocol

• Compatible with HDCP, ONVIF Network Video Protocol

• Any IOS browsers (iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime

• Anywhere by HLS protocol without install any software players.

• Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64/WIN10, LINUX

• Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER

• Compatible with Windows VFW software architecture and WDM mode.

• Web-based management

Technical Specifications:

Applications:

Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference

IPTV/OTT system

Government, Education and Music

Digital Signage Project

Video Monitoring
