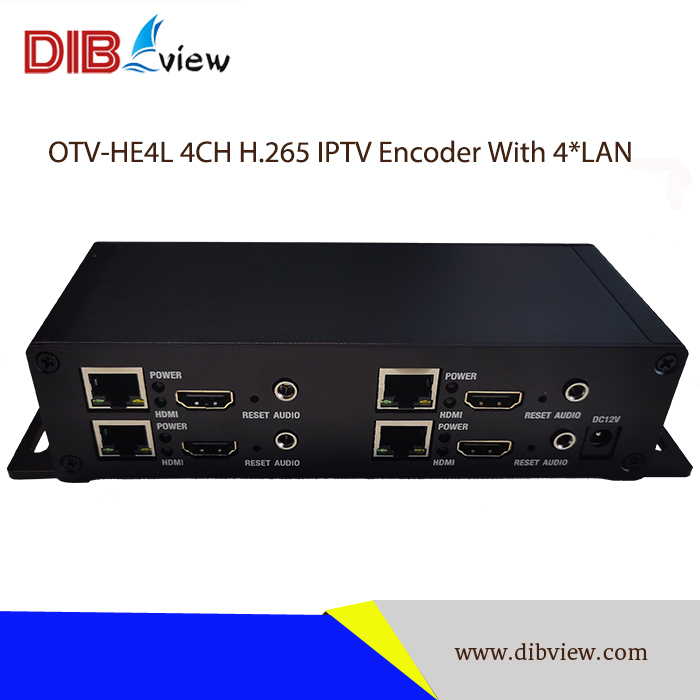

| Name | OTV-HE4L 4 Channel H.265 H.264 HD Encoder With 4 LAN Port IP Output |
| Brand Name: | Dibview |
| Model Number: | OTV-HE4L |
| Product name: | HDMI IPTV Streaming Encoder |
| Input 1: | 4HDMI |
| Output 1: | IP SRT/HLS/RTMP/UDP/RTP/HTTP |
| Output 2: | 4 LAN IP |
| Function: | IPTV Head-end System |
| Application: | Live streaming, TV production |
| Key Words 2: | IPTV Streaming Encoder |
| Key Words 3: | HDMI TO IP Encoder |
| key words: | IPTV System |
Product Description
Overview:
OTV-HE4L H.265 H.264 HDMI To IP Video Encoder. It features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265 HEVC. As encoder, HDMI video or over Ethernet in normal protocol of HTTP/SRT/HLS/RTSP/RTP/UDP/RTMP/RTMPS, convert it to IP.
OTV-HE4L H.265 H.264 HDMI To IP Video Encoder, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
Main Features:
H265/H264 Main profile
4 HDMI input with 4x4=16 Streaming via 4 LAN Port output
Support High-bandwidth Digital Content Protection (HDCP)
Audio output format AAC,MP3,MP2, AC3
Coding Resolution: 1080P Max.60fps
Support CBR,VBR
Support a variety of common platforms such as Wowza, FMS, Youtube, Facebook, and so on
Technical Specifications:
Item | Description |
Video Audio Input | |
Video Input:4-Channel HDMI Audio Input:4-Channel HDMI built-in audio, 4-Channel external 3.5mm audio | |
Video Encoding | |
Encoding Type:H.264/H.265/MJPEG Encoding Frame Rate:5~60fps adjustable Keyframe Interval(Frame):5~300 adjustable Bitrate(kbit):32~32000 adjustbale Encoding Resolution: 1920x1080/1680x1200/1680x900/1280x1024/1280x720/1024x768/1024x576/960x540/850x480/800x600/ 720x576/720x540/720x480/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272 H.264 Profile:Baseline/Main/High Optional Stream Control:CBR/VBR Optional Network Stream:RTMP/RTSP/HTTP TS/HTTP FLV/HLS/SRT/UDP/RTP Multicast | |
Audio Encoding | |
Encoding Sample Rate:44100/48000 optional Encoding Methold:"AAC/AAC+/AAC++/Mp3/MP2/AC3/Opus for optional" Encoding Bit Rate:"AAC: 48000~256000 adjustable, AAC+: 24000~48000adjustable AAC++: 12000~32000 adjustable, MP3: 64000~320000 adjustable MP2: 64000~320000 adjustable, AC3: 40000~640000 adjustable Opus:8000-25600 Audio Input:Digital/Analog/Mix Left and right channel:L+R/L/R Digital volume gain:-50 to 50 adjustable RTSP streams are encoded using G711A:Disable/enable/enable and resampling is 8K optional | |
OSD | |
OSD text support, OSD image support, image scrolling support, text scrolling support, time support, mosaic support, font size optional, background color RGB color optional, font color RGB color optional | |
ONVIF Protocol | |
ONVIF protocol customization support, sound support G711A/G711U, support for mainstream platforms hikvision, Dahua, Dynamic configuration:port, device name, channel name, type Support ONVIF official standard protocol | |
GENERAL OPTIONS | |
Network: Gigabitx4*LAN Power Supply: 12V/DC, 2A Power: 8W Configuration: By Web Working Temperature: -20℃~60℃ Working humidity≤90% no condensation Size: 19.8x7x4.5CM, Weight: 450g | |
