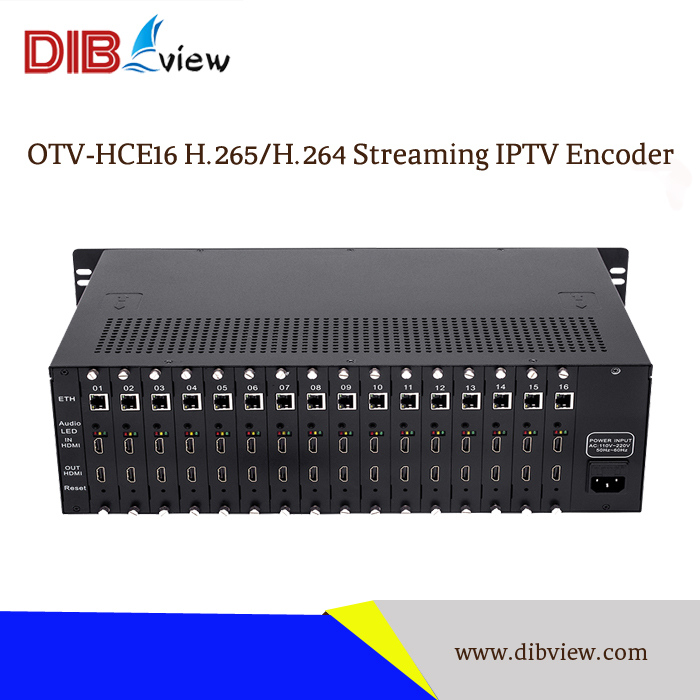

NameOTV-HCE16 16 Channel HDMI H.265 H.264 Encoder
Brand Name:Dibview
Model Number:OTV-HCE16
Application:IPTV & OTT system
Input:16 HDMI Input, 16 hdmi loopout (For optional)
Output:TS over IP output
Video Encoding:H.264 H.265
Protocols:SRT/HLS/RTMP/RTSP/HTTP/UDP protocol
Resolution:Support up to 1080P HD video input
Product Name:IPTV Streaming Encoder
Application:Live Streaming

Product Description

Order Guide:


1. 16*HDMI Input (We send this item by defaulty)

2. 16*HDMI Input with 16*HDMI Loopout (if clients also need the hdmi loopout function, please tell us before paid the payment, it should add extra cost)


Overview:


OTV-HCE16 H.265 H.264 Streaming HD 16-Channel IPTV Encoder features high performance, low latency and ultra-low bit rate for IPTV/OTT systems, realize Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of h.265/MPEG-4 AVC, which realizes its resolution to be up to full HD 1080P high quality image. Moreover, with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare with traditional broadcast Encoder.


OTV-HCE16 H.265 H.264 Streaming HD 16-Channel IPTV Encoder is equipped with 16 plug-in module card, every module support 1*HDMI in/Loopout streaming at the same time, and output up to 4 different streams with different resolution or protocols, which makes it suitable for multi-screen (PC, TV, Mobile) service. Also it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.


OTV-HCE16 H.265 H.264 Streaming HD 16-Channel IPTV Encoder owns 3U structure, perfect designing, adding fully supporting VLC decoding functions, can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.


Key Features:


  • Support h.265 Main/High/Baseline Profile and MP3 & AAC audio compression

  • Support up to 1080P HD video input

  • Video Input: 16-Channels HDMI in/loopout

  • Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s

  • Support streaming resolution settings

  • GOP frame rate settings supported

  • Capable of image parameter settings

  • Insertable of logo and Scroll Caption; Adjustable of audio gain;

  • Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications

  • Support up to 4* TS over IP stream out.

  • Switchable of audio output mode: Left, right and Stereo

  • Configurable of Multi-rate, Multi-resolution, Multi-protocol

  • Providing HLS/RTSP/HTTP/UDP or RTMP protocol

  • Support HDCP protocol, ONVIF Network Video Protocol

  • Support multiple equipments display at the same time on a computer

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

  • Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.

  • Web-based management, Full-duplex mode 1000M


Technical Specifications:


Item

Description


VIDEO SPECIFICATIONS


*Video compression: H.265/AVC High/Main/Baseline Profile Level 4.0
*Video inputs:16*HDMI in/Loopout
*Resolution:
  Main stream:  1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto
  Sub-stream: 1280x720, 800X450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352X288, 320X240, 320X180 auto.
*Bit-rate: 16kbps~12Mbps, CBR/VBR
*Video pre-processing: Noise reduction, Sharpen, Filtering


AUDIO SPECIFICATIONS


*Audio compression: AAC, MP3
*Sampling rate: Adaptive, selectable of re-sample.
*Sampling accuracy: 24-bit
*Re-sample: 32KHz,44.1KHz
*Audio bit-rate: 48Kbps,64 Kbps,96 Kbps,128 Kbps,160Kbps,192 *Kbps,256 Kbps,384Kbps


OUTPUTS


*Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP, HLS protocol
*For each HD/SDI to IP output, 4*TS over IP stream out (HTTP/RTSP/UDP or RTMP, HLS protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application)
*Connector: RJ45, 1000M


PHYSICAL AND POWER


*Voltage:AC220V±10%, 50/60 Hz
*Consumption: 80 W
*Operating temperature: -20~80°C
*Dimensions: 484mm(W)*365mm(D)*148mm(H)
*Weight: 7.9kg/pc

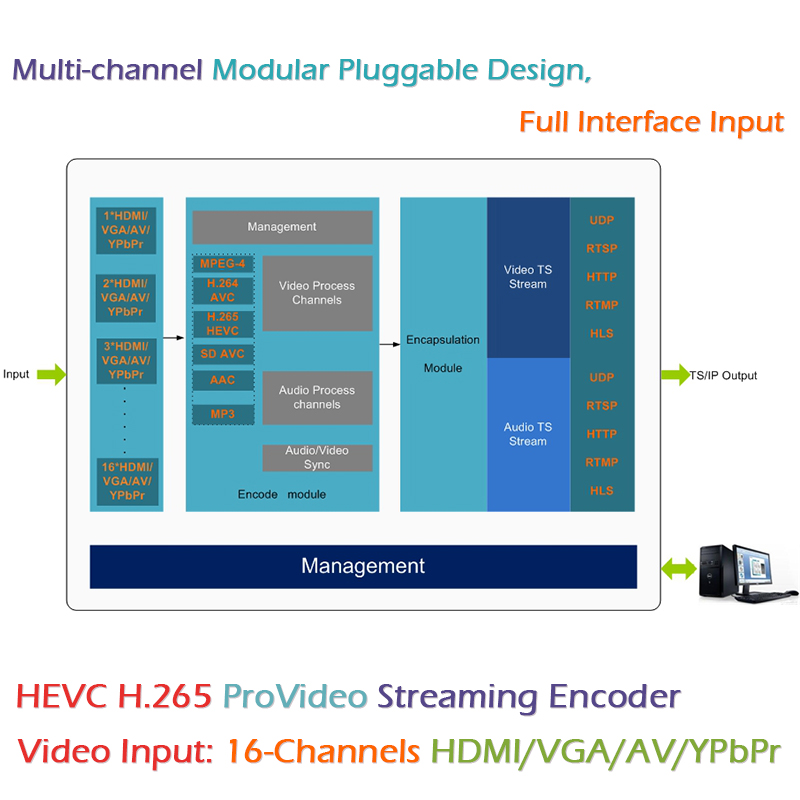

Basic Functions:


IPTV Streaming Encoder.jpg

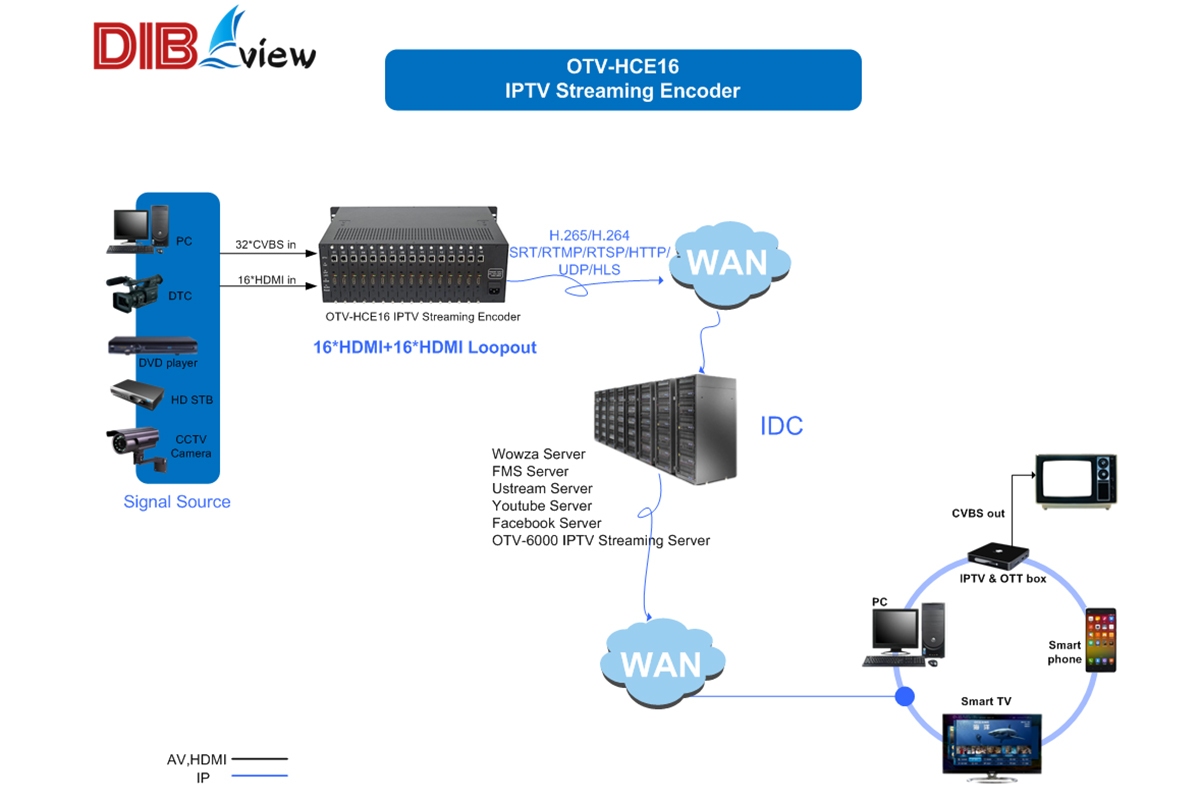

Field Of Application & Details:




OTV-HCE16 IPTV Streaming Encoder 2.jpg
