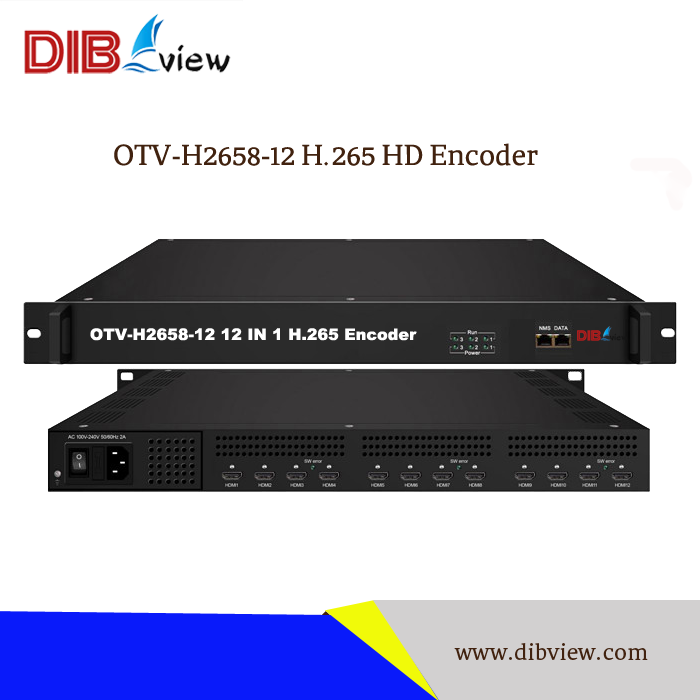

NameOTV-H2658-12 H.265 HEVC 12 In 1 HD Encoder with ASI out fujitsu chipset
Brand:Dibview
Model:OTV-H2658
Product Name:H.265 HD Encoder
Encoding:H.265/HEVC, MPEG-4 AVC/H.264
Input:4/8/12 HDMI Input
Support:1080P 60fps
CBR video bitrate mode:Yes, support
IP Output:1/2/3 MPTS & 4/8 SPTS over UDP and RTP
Output ASI:Sure support

Product Description

Overview:


OTV-H2658-12 H.265 HEVC 12 In 1 HD Encoder is a professional HD audio & video encoding and multiplexing device. It has HDMI Channels (4/8/12 HDMI optional) video input interfaces, supporting H.265 video encoding and MPEG 1 Layer 2 audio encoding.



OTV-H2658-12 HD Encoder can simultaneously encode (4/8/12 HDMI optional) channel HD audio & video; moreover, it has an IP output port can support 1/2/3 MPTS and (4/8/12 SPTS) IP out.



In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.


Key Features:


  • Support 4/8/12 HDMI 1.4 input, HDCP 1.4

  • Support H.265/HEVC and H.264/AVC video encoding

  • Support up to 1080P 60Hz input

  • Support CBR video bitrate mode

  • Support MPEG1 Layer 2 audio encoding

  • Support IP Output 1/2/3 MPTS & 4/8/12 SPTS over UDP and RTP; IP null packet filter

  • Real-time output bit-rate monitoring


Technical Specifications:


Item

Description

Input

4/8/12 HDMI inputs ( 4/8/12 input for optional)

Video Resolution

Input

1920×1080_60P, 1920×1080_59.94P

1920×1080_50P, 1920×1080_30P

1280×720_60P, 1280×720_59.94P

1280×720_50P, 1280×720_30P

Encoding

H.265/HEVC, MPEG-4 AVC/H.264

Bit-rate

0.5Mbps~15Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IBBP (low bitrate) IPPP

Audio Encoding

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

48kbps~384kbps each channel

Audio Gain

0~255

Stream Output

1/2/3 MPTS and 4/8/12 SPTS output over UDP/RTP, 1000M/100M Base-T Ethernet   interface (unicast/ multicast)

IP null packet filter

System Function

Network management(WEB)

Chinese and English language

Ethernet software upgrade

The Working Environment

Warranty

3 years with free telephone support

Power Supply

AC 100V-220V±10%,   50/60Hz

Power consumption

75W

Operation temperature

-10 -50°C

Storage temperature

-20-80°C

Dimensions

482mm x 328mm x 45mm

Weight

4.1Kg

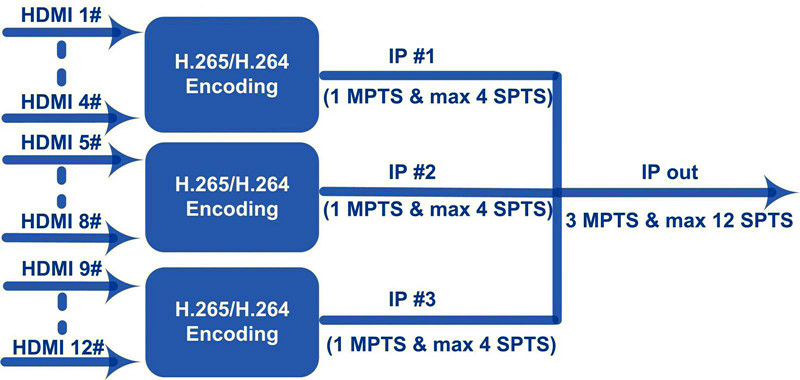

Key Diagram:


OTV-H2658-12 (2).jpg


H.265 Advantage:


A. Providing smooth TS for modulators


HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS for modulators.

It is widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.


B. Encoding with highest compression format—B frame (IBBP)

What is B Frame?

There are 3 major picture types used in the different video algorithms, they are I, P and B.

They are different in the following characteristics:

I frames are the least compressible but don't require other video frames to decode.

P frames can use data from previous frames to decompress and are more compressible than Iframes.

B frames can use both previous and forward frames for data reference to get the highest amount of data compression.


1. High Compression Ratio:



TS (1080P)

Video Bitrate

1M

1.5M

2M

Audio Bitrate

128kbps

128kbps

128kbps

PAT, PMT, SDT, table

640kbps

691kbps

896kbps

Total Bitrate

1.75M

2.3M

3M



2. Save Frequency:



Video Format

Mpeg-4 HD

H.265 HD

Bitrate

8M

3M~4M

Program No.

2

5~7



3. High Quality Picture:




1 Set SD Program

1 Set HD Program

Video format

H.264

H.265

Bitrate

3M/4M

3M/4M
