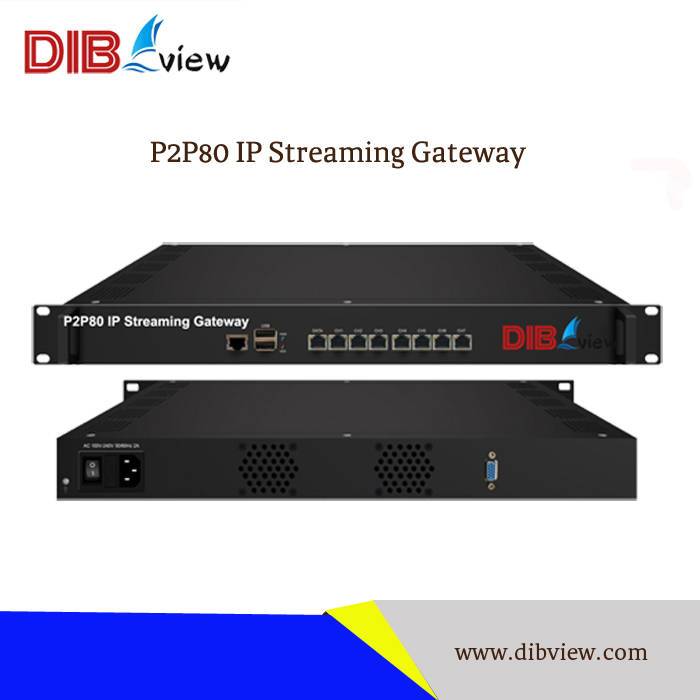

| Name | P2P80 80 SD/HD ip protocol conversion ip streaming HLS/HTTP/RTMP/RTSP/UDP gateway |
| Brand Name: | Dibview |
| Model Number: | P2P80 |
| Product Name: | IP Streaming Gateway |
| Input: | CH1 ~ CH7(1000M) |
| IP Output: | HTTP, HLS and RTMP (Unicast) |
| CH1 ~ CH7 Protocol: | HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS |
| Memory: | 4G |
| Solid-State Disk(SSD): | 16G |
| Application: | IPTV Gateway Controller & Control |
| Function: | Scrolling caption/boot image/boot video |
| Unique features: | APK downloaded android STB and TV |
| Available users: | 150 terminals |
Product Description
Overview:
P2P80 IP Streaming Gateway is a powerful with low power consumption, rack-mount Controller & Control Interface for 24/7/365 operation. Excellent modular design enables integrators and operators to select from various protocol to customized operation and on-going service.
P2P80 IP Streaming Gateway can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The platform can achieve the integration by receiving a variety of commercial streaming media services, and can provide streaming media services directly.
Designed for the centralized control of Android STB’s the control protocol conversion function acts, used for the protocol conversion scenarios and streaming media distribution scenarios, to the commonly deployed STB’s in the hotel, hospitality, corporate, education and entertainment sectors.
Key Features:
Low power consumption, rack-mount design
8 Data ports:
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1~CH7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
TS files uploading through Web management
IP anti- jitter function
Adding scrolling caption, welcome words, boot image and boot video
Support downloading Dibview IPTV APK directly from this device
Up to 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast)
Support program playing with APK downloaded android STB and TV, maximum 150 terminals
Control via web-based NMS management through DATA port
Technical Specifications:
Item | Description |
Inputs | |
CH1~CH7(1000M) | Over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS TS files uploading through Web management |
IP Output | |
Data port (1000M) | Over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) |
System | |
Memory | 4G |
Solid-State Disk(SSD) | 16G |
Channel switching time | HTTP (1-3s), HLS (0.4-0.7s) |
Function | Scrolling caption Welcome words boot image boot video (only in IP out application and the STB/Android TV installed DIBVIEW IPTV APK) |
Maximum 150 terminals | Play programs with APK downloaded android STB and TV |
Management | web-based NMS |
Maximum 80 HD/SD programs | Bitrate 2 Mbps each programs HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization |
The Working Environment | |
Power Supply | AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz |
Power Humidity | 9~ 89% non-condensed |
Operation temperature | 0 -50°C |
Storage temperature | -20-80°C |
Dimensions | 482mm x 325mm x 44mm |
Weight | 5.5Kg |

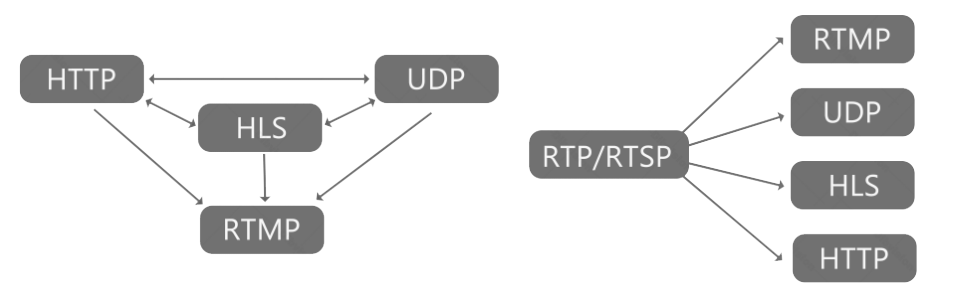

Protocol Conversion:

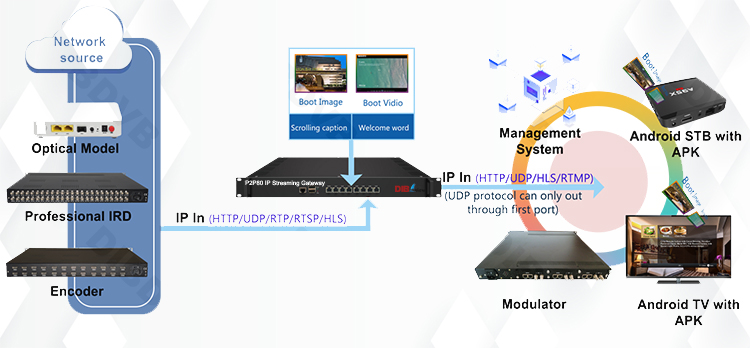

Application:
Protocol conversion scenarios
Contribution and Distribution
IPTV Gateway Controller & Control
