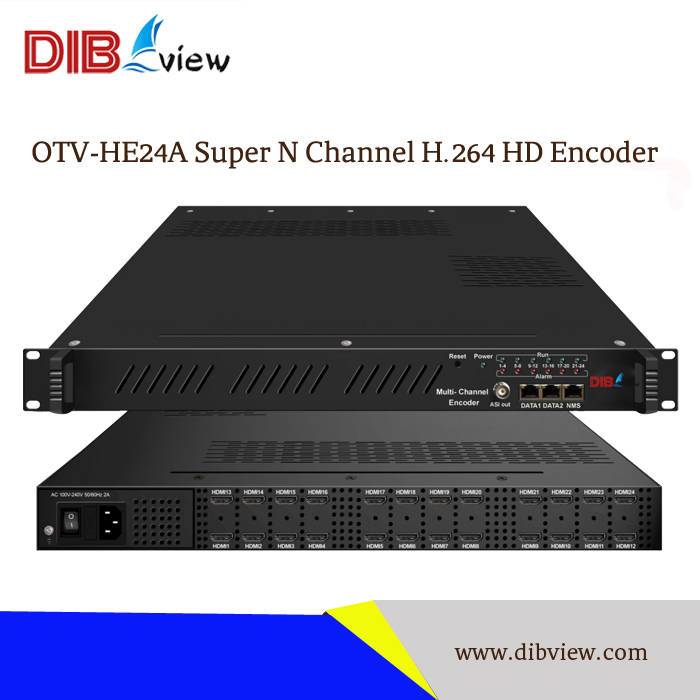

Name	OTV-HE24A Super N Channel H.264 HD Encoder
Brand Name:	Dibview
Model Number:	OTV-HE24A
Product Name:	N Channel H.264 HD Encoder
Input:	4/8/12/16/24 Channel
Output:	1 MPTS and N SPTS IP & ASI
Protocol:	UDP RTP
Encoding:	MPEG-4 AVC/H.264
Bit Rate:	1Mbps~13Mbps each channel
Support:	QR code, LOGO, OSD, caption insertion
Support:	Resolution downscale conversion—For 8/12 HDMI input version

Product Description

Overview:

OTV-HE24A Super N Channel H.264 HD Encoder is a professional HD audio & video encoding and multiplexing device. It has HDMI Channels (4/8/16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio encoding.

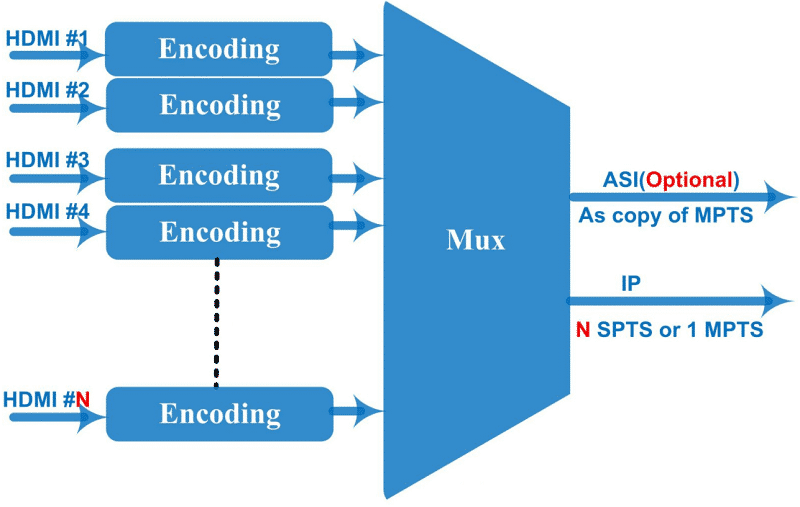

OTV-HE24A Super N Channel H.264 HD Encoder can simultaneously encode N (4/8/16/20/24 HDMI optional) channel HD audio & video; moreover, it has an IP output port can support 1MPTS and (4/8/16/20/24 SPTS) N IP out.

In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.

Key Features:

8× HDMI video inputs with 8 SPTS and 1 MPTS output through Data 1 or Data 2
12 × HDMI video inputs with 12 SPTS and 1 MPTS output through Data 1 or Data 2
16 × HDMI video inputs with 16 SPTS and 1 MPTS output through Data 1 or Data 2
20 × HDMI video inputs with 20 SPTS and 1 MPTS output through Data 1 or Data 2
24×HDMI video inputs with 24 SPTS or 1 MPTS output through Data 1 or Data 2
Support MPEG4 AVC/H.264 video encoding format
MPEG1 Layer II audio encoding format, support audio gain adjustment
Support 1 ASI output (optional) as copy of MPTS
Support IP output over UDP and RTP
(Language Supported: 中文, English, العربية, ไทย,, руская, اردو for more languages please consult us…)
Support output resolution downscale conversion—For 8/12 HDMI input version
Support QR code, LOGO, OSD, caption insertion
Support “Null PKT Filter” function
Support PID Remapping
Support PCR accurate adjusting
Support PSI/SI editing and inserting
Control via web management, and easy updates via web
Lowest cost per channel, breakthrough price

Technical Specifications:

Item	Description
Input
N Channel HDMI inputs (4/8/16/20/24 input optional)
Video Resolution
Input	1920×1080_60P, 1920×1080_60i 1920×1080_50P, 1920×1080_50i 1280×720_60P, 1280×720_50P 720×576_50i,720×480_60i
Output	1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, -- for 16/20/24 HDMI input version NEW 160×124≤Output resolution≤input resolution have frame rate --for 4/8/12 HDMI input version
Encoding	MPEG-4 AVC/H.264
Bit-rate	1Mbps~13Mbps each channel
Rate Control	CBR/VBR
GOP Structure	IP…P (P Frame adjustment, without B Frame )
Audio Encoding
Encoding	MPEG-1 Layer 2
Sampling rate	48KHz
Resolution	24-bit
Bit-rate	64kbps,128Kbps,192kbps,224kbps,256kbps, 320kbps,384kbps
Multiplexing
Maximum PID Remapping	180 input per channel
Function	PID remapping ( automatically or manually)
	Accurate PCR adjusting
	Generate PSI/ SI table automatically
Stream Output
ASI output(optional) as copy of MPTS IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol (8/12 HDMI inputs with 8/12 SPTS and 1MPTS output 16/20/24 HDMI inputs with 16/20/24 SPTS or 1MPTS output )
System Function
Network management(WEB)
Chinese and English language
Ethernet software upgrade
The Working Environment
Warranty	3 years with free telephone support
Power Supply	AC 100V-220V±10%, 50/60Hz
Power consumption	75W
Operation temperature	-10 -50°C
Storage temperature	-20-80°C
Dimensions	482mm x 410mm x 44mm
Weight	8Kg
