Your Location : Home >> Product Center >> HDMI/CVBS/VGA Decoder >> D-TINY 1 CHANNEL 4K VIDEO STREAMING DECODER WITH USB

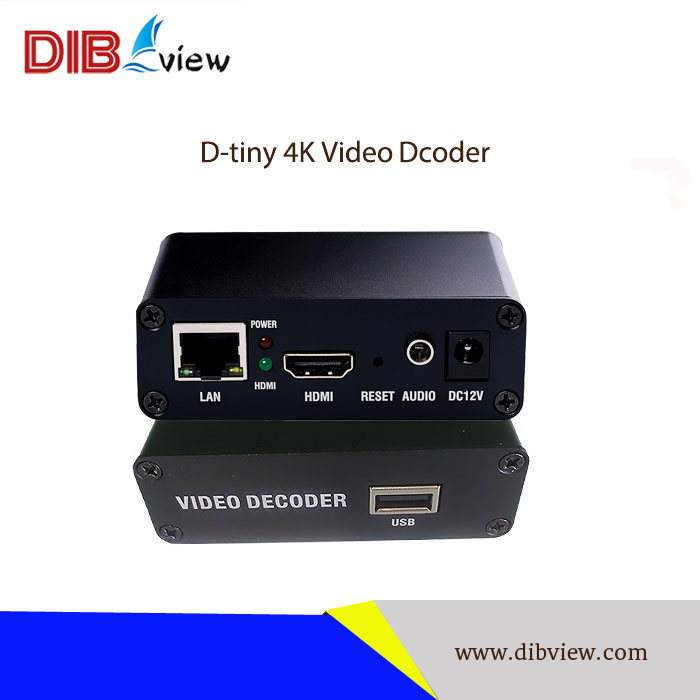

Name	D-TINY 1 CHANNEL 4K VIDEO STREAMING DECODER WITH USB
decoding type:	H.265/H.264
Resolution:	Max.Support 2160P@30
output:	HDMI
Support USB:	YES

Product Description

D-Tiny ProHD H.265/H.264 Streaming Decoder with HDMI output, which used advanced H.265 Video compression technology, integrated data transmission over HLS/RTSP/HTTP TS/HTTP FLV/RTMP/UDP With embedded operating system.

D-Tiny ProHD UHD H.265/H.264 Streaming Decoder provides the features of stability, excellent network agility, which makes it a new generation network media decoder. Besides that, with embedded linux system designing makes this device widely used in variety of professional field where required 24/7/365 running, such as point to point contribution system, education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Technical Specifications:

Item	Description
Protocol
Standard Protocol:RTSP/HTTP TS/HTTP FLV/HTTP HLS/RTMP/UDP/SRT Private Protocol:HTTP PTE
Video Decoding
Type:H.265/H.264 Frame Rate:1-60 Bitrate(kbit):32-32000 Resolution:Max.Support 2160P@30 Channels:1 to 4
Audio Decoding
Type:G711A/G711U/AAC+/AAC++/MP2/MP3 Channels:Single Channel/Dual Channel Sampling Rate:8000/11250/22500/44100/48000 Channels:1
Video Output
HDMI:1080P@60/1080P@50/1080P30/1080P25/720P60/720P50/576P50/480P60 Color:Brightness,contrast, hue, saturation, volume adjustable
Audio Output
HDMI:48KHz dual channel output 3.5MM:Dual channel output Enable:Enable/Disable
GENERAL OPTIONS

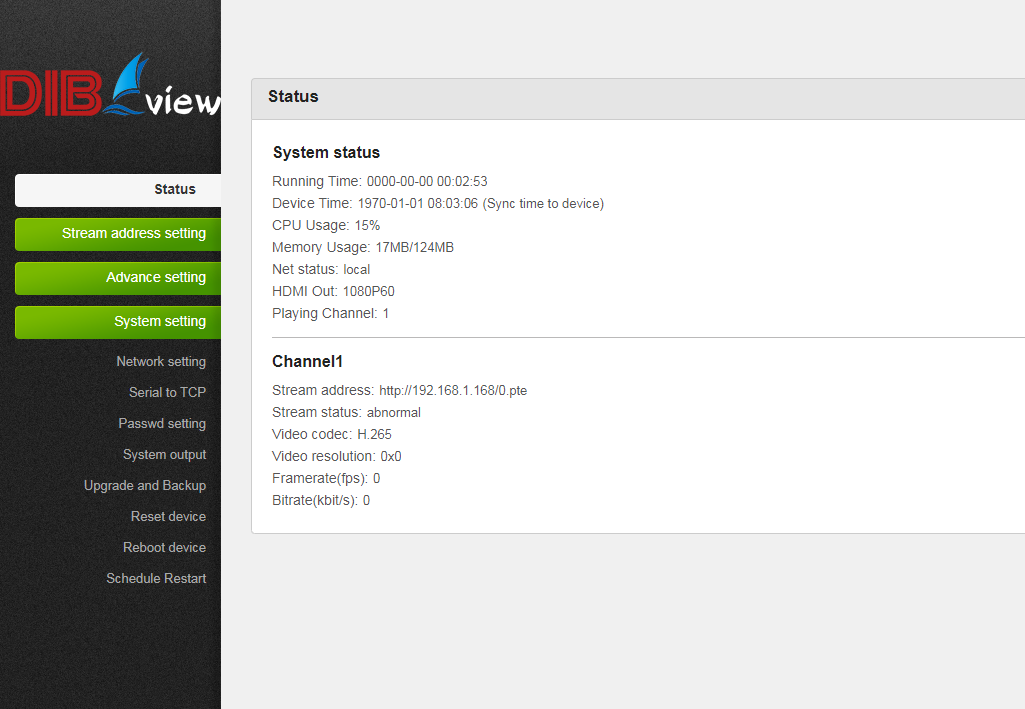

Configuration management:Configuration management via WEB Power Supply:12V/DC,2A Power:<1W Working Temperature:-20°C+60°C Working Humidity:<90%, no condensation Size:8.4cm x 5.3cmx2.7cm
