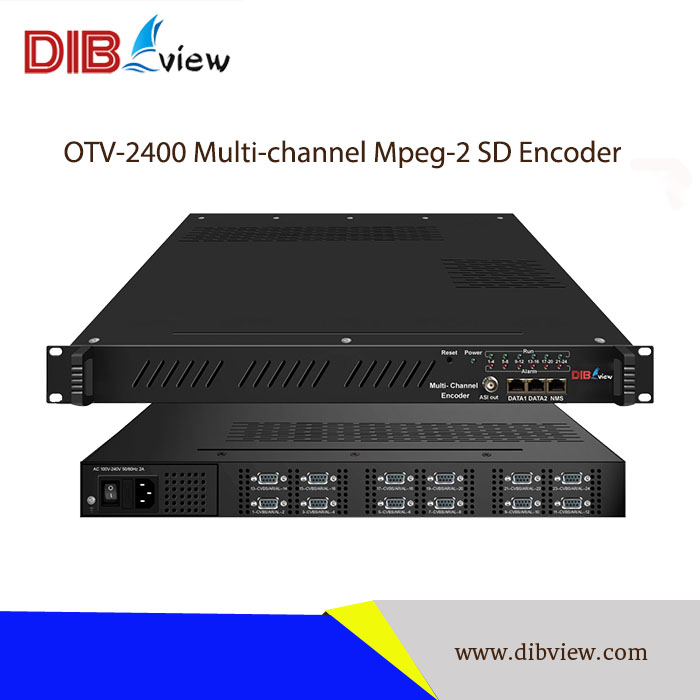

Name | OTV-2400 Multi-channel Mpeg-2 SD Encoder |
Brand: | Dibview |
Product Name: | OTV-2400 Multi-channel Mpeg-2 SD Encoder |
Input: | 8/12/24CVBS |
Output: | IP (MPTS/SPTS) output over UDP/RTP/RTSP |
Support: | CC (closed caption) |
MPEG1 Layer II, AC3 (2.0) Audio encoding: | Yes, support |
Support: | QR Code, Caption, Logo insertion |
Null PKT Filter: | Yes, support |
Video Compression: | Mpeg-2 |
Product Description
Overview:
OTV-2400 Multi-Channel Mpeg-2 SD Encoder is a professional audio & video encoding and multiplexing device. It supports to convert 8/12/24 CVBS video inputs to MPTS or SPTS IP output. To meet customers’ various requirements, it is also equipped with 1 ASI output as copy of MPTS.
In conclusion, OTV-2400 Multi-Channel Mpeg-2 SD Encoder high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.
Key Features:
8/12 CVBS video inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2
24×CVBS video inputs with 24 SPTS or 1 MPTS output through Data 1 or Data 2
Supports PAL and NTSC SD video formats, MPEG-2 Video encoding
Support MPEG1 Layer II, AC3 (2.0) Audio encoding and support audio gain adjustment
Support 1 ASI output as copy of MPTS
Support CC (closed caption)
Support QR Code, Caption, Logo insertion----OTV-2400A
Support "Null PKT Filter" function
Support PID Remapping/PCR accurate adjusting/PSI/SI editing and inserting
Real-time effective encoding output bit-rate monitoring
Control via web management, and easy updates via web
Technical Specifications:
Item | Description |
Input | |
Video Input | 8/12/24CVBS inputs , RCA interface |
Video Encoding | |
Resolution | 720×480_60i, 544×480_60i, 352×480_60i 352×240_60i, 320×240_60i,176×240_60i, 176×120_60i 720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i, 176×288_50i, 176×144_50i |
Encoding | MPEG-2 |
Bit-rate | 0.5Mbps~8Mbps each channel |
Rate Control | CBR/VBR |
GOP Structure | GOP_0_B, GOP_1_B, GOP_2_B, GOP_3_B |
Advanced Pretreatment | De-interlacing, noise reduction |
Audio Encoding | |
Sampling Rates: 48 KHz | |
Bit rate: 64, 128, 192, 256, 384kbps each channel | |
Audio encoding: MPEG-1 Layer 2, AC3(2.0) | |
Resolution: 24-bit | |
Multiplexing | |
PID re-mapping (automatically or manually) | |
PCR accurate adjusting | |
Generate PSI/SI table automatically | |
Stream output | |
1 ASI as copy of MPTS IP (MPTS/SPTS) output over UDP/RTP/RTSP 8/12 CVBS inputs with 8/12 SPTS and 1 MPTS output 24×CVBS inputs with 24 SPTS or 1 MPTS output | |
Management | |
Network management (WEB) | |
Chinese and English language | |
Ethernet software upgrade | |
The Working Environment | |
Warranty | 3 years with free telephone support |
Power Supply | AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz |
Power consumption | 20W |
Operation temperature | 0 -50°C |
Storage temperature | -20-80°C |
Dimensions | 482mm x 410mm x 44mm |
Weight | 8Kg |

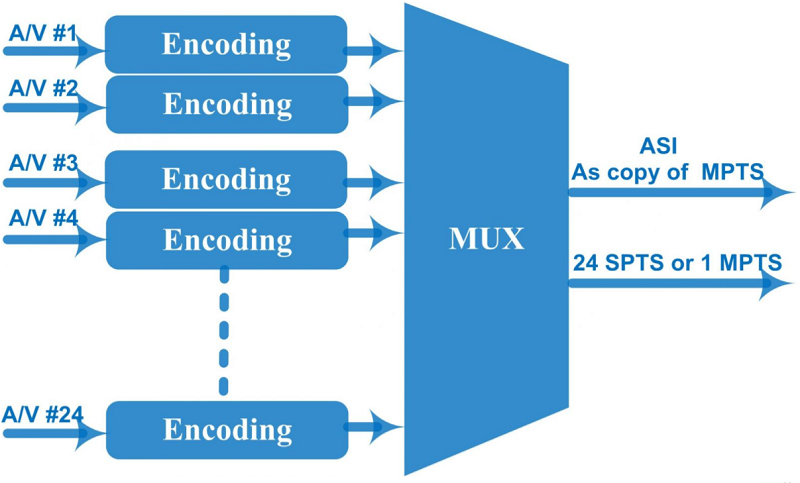

Key Diagram:
