Your Location : Home >> Product Center >> DVB Multiplexer/Scrambler >> OTV-1400 ASI IP Multiplexer Scrambler

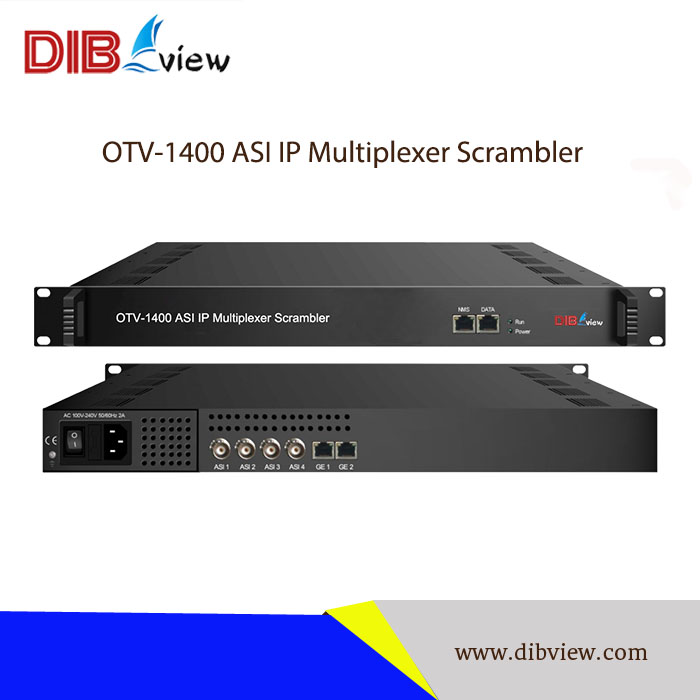

Name	OTV-1400 ASI IP Multiplexer Scrambler
Brand:	Dibview
Product Name:	OTV-1400 ASI IP Multiplexer Scrambler
ASI in/out:	Max. 4 ASI input/output thru 4 bi-direction ASI ports
IP in/out:	128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
Scrambling Function:	With up to 4 simulcrypt CAs
Management:	Web-based NMS management

Product Description

Overview:

OTV-1400 ASI IP Multiplexer Scrambler is Dibview’s latest multiplexing scrambling device, which has 4 bi-direction ASI and 3 bi-direction IP ports supporting up to 4 ASI and 128 IP input, after scrambling, it outputs 4 MPTS and max 4 ASI.

OTV-1400 ASI IP Multiplexer Scrambler has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Key Features:

Low power consumption, rack-mount design
ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)
IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
Support scramble with up to 4 simulcrypt CAs
Up to 512 PIDs remapping per output channel
Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
Huge buffer memory for saving the overflowing code stream
Alarming function
Web-based NMS management

Technical Specifications:

Item	Description
Input/Output
4 bi-direction ASI ports: max 4 ASI input/output, BNC 75Ω 3 bi-direction Data ports (RJ45): 128 IP input over UDP/RTP 4 IP (MPTS) output over UDP/RTP/RTSP 100/1000Mbps self-adaption Input Packet format: 204/188 self-adaption ASI: Max output bit-rate: 200Mbps (Each channel)
Multiplexer
Max PIDs: 512 per channel Functions: PID re-mapping PCR accurate adjusting Automatic generating PSI/SI table PID transparent: Any PID transparent and mapping achievable
Scrambling Parameters
Max simulcrypt CA	4
Scramble Standard	ETR289, ETSI 101 197, ETSI 103 197
Scramble Channel	1
Connection	Local/remote connection
System
Web-based management
Ethernet software upgrade
Language: English and Chinese
The Working Environment
Power Supply	AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz
Power Humidity	9~ 89% non-condensed
Operation temperature	0 -50°C
Storage temperature	-20-80°C
Dimensions	482mm x 300 x 44mm
Weight	3.5Kg
