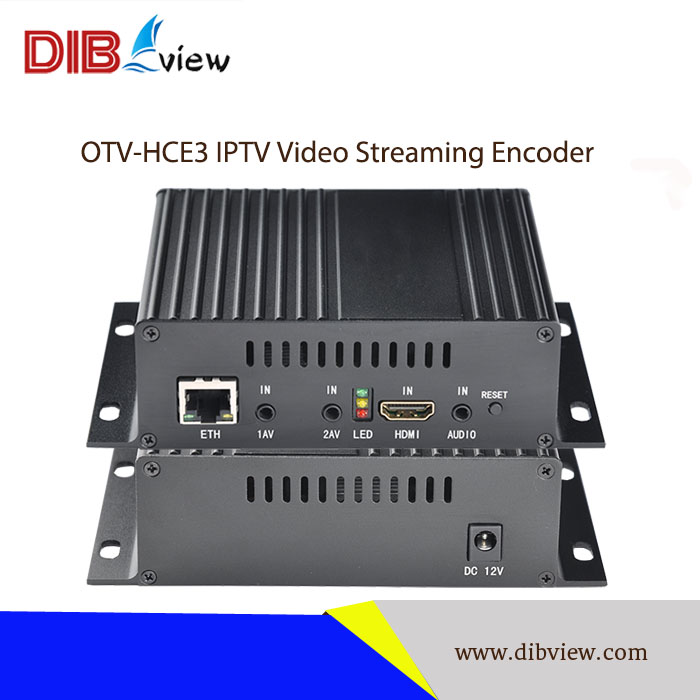

NameOTV-HCE3 IPTV Video Streaming Encoder
Brand Name:Dibview
Model Number:OTV-HCE3
Product name:OTV-HCE3 IPTV Video Streaming Encoder
Inputs:HD Interface+CVBS+Audio
Protocol:HTTP/RTMP/RTSP/HTTP/UDP protocol
Output:TS over IP output
Audio Compression:AAC, MP3
Resolution:Support up to 720P, 1080P HD video input
Compression:H.264 Main Profile/H.264 High Profile and AAC audio
Configuration:Web operation

Product Description

Overview:


OTV-HCE3 IPTV Video Streaming Encoder accepts both HDMI and 2*CVBS (AV) input working at the same time. Meanwhile, it outputs 12 channels stream by TS over IP transmission in H.264 Compression(Video), AAC, MP3 Compression(audio) with different resolution and protocols for delivering services to multiple Internet connected devices at the same time, including smart phones, tablets, different size TVs and other mobile device. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth.


OTV-HCE3 IPTV Video Streaming Encoder can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.


Key Features:

  • Support 1 channel HDMI+2 channel CVBS input working at the same time.

  • Support up to 12 TS over IP stream out.

  • Support H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression

  • Bitrate mode: CBR/VBR

  • Capable of image parameter settings

  • Switchable of audio output mode: Left, right and Stereo

  • Configurable of Multi-rate, Multi-resolution, Multi-protocol

  • Providing RTSP/HTTP/UDP or RTMP protocol

  • Compatible with HDCP

  • Any terminal devices/decoders can have streams from IPTV Streaming Encoder

  • directly by RTMP protocol with software players (such as VLC).

  • Support ONVIF Network Video Protocol

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

  • Web-based management

  • Full-duplex mode 1000M


Technical Specifications:

Item

Description

Video Processing

Video compression: H.264/AVC High Profile Level 4.0

Video inputs: HDMI (Compatible with HDCP), 2*CVBS

Analog video input mode: PAL, NTSC

Video resolution

HDMI main stream:

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,

720x404,704x576,640x480,640x360, auto

HDMI sub-stream:

1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,

640x300,352X288,320X240,320X180 auto

CVBS main stream:

NTSC max. supports 720*480

PAL max. supports 720*576

CVBS sub-stream:

NTSC: 720*480

PAL: 720*576

Bit-rate: 16kbps~12Mbps, CBR/VBR

Video pre-processing: Noise reduction, Sharpen, Filtering

Audio Processing

Audio in: 3.5mm Line in+HDMI Embedded in

Audio compression: AAC, MP3

Sampling rate: Adaptive, selectable of re-sample.

Sampling accuracy: 24-bit

Bit Rate: 48kbps,64kbps,96kbps,128kbps,160kbps,192kbps,256kbps

Re-sample:32KHz,44.1KHz

IP Output

Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol

For HDMI to IP output, 4*TS over IP stream out (HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution (up to 1080P) for large screen application, 2 channels with   lower resolution (up to 720P) for small screen application)

For each CVBS to IP output, 4*TS over IP streams output can be set with different resolution, bitrate, protocol.

Connector: RJ45, 1000M.

Management

Configuration Interface: Web-based

Upgraded: via network

Connector: RJ45, 1000M Ethernet interface.

The Working Environment

Dimension

144mm(W)*98mm(D)*38mm(H)

Gross Weight

0.48KG

Operating Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

12V /DC



Applications:

DTV & Professional Broadcasting Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Events Streaming

Government, Education, Healthcare and Music

Digital Signage Project

Public Security Video Monitoring
