1. RTMPS Setting

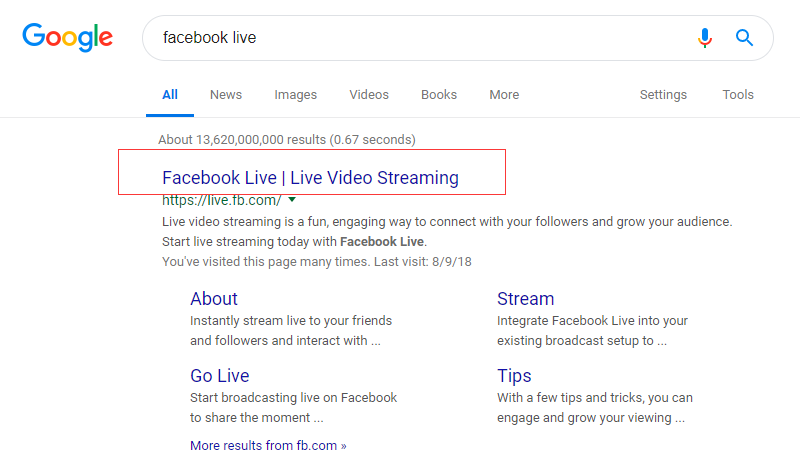

Step 1. Search ''Facebook Live'' in Google.com

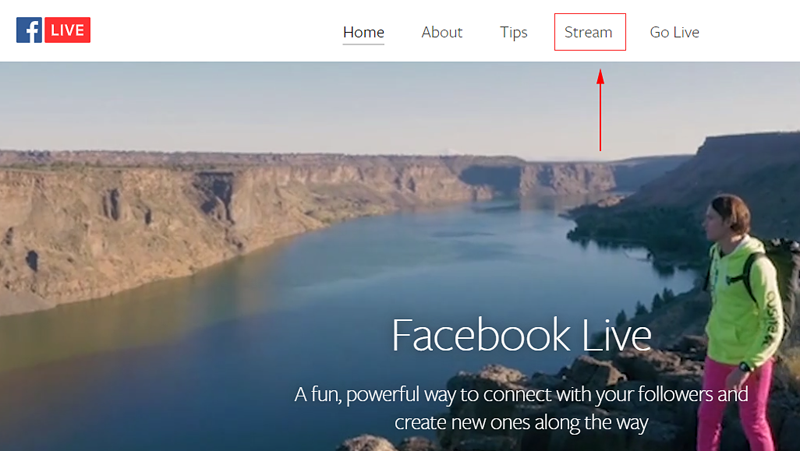

Step 2. Choose ''Stream''

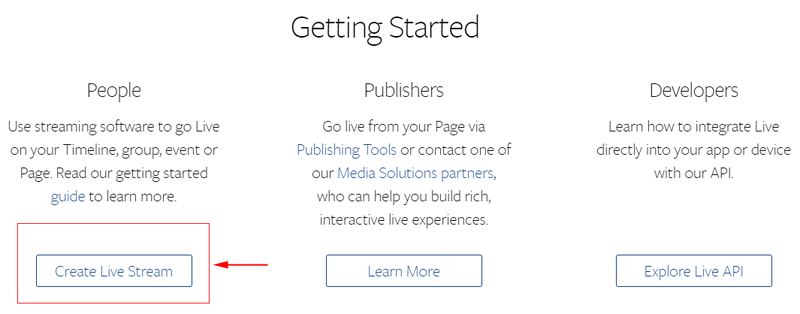

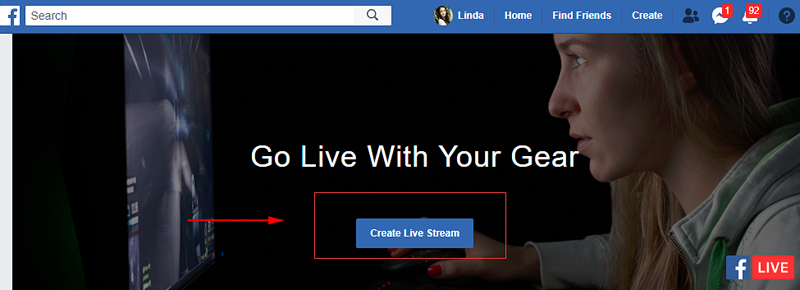

Step 3. Choose ''Creat Live Stream''

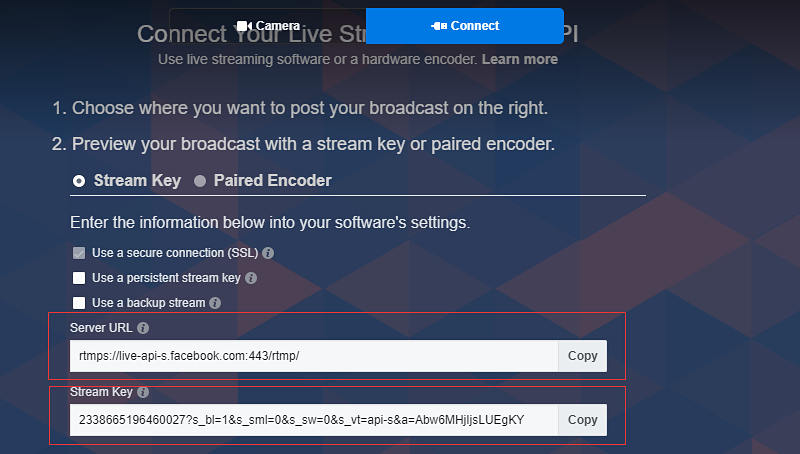

Step 4. Configure the setting of RTMPS, and choose ''enable''

For example, my ''Server URL'' is rtmps://live-api-s.facebook.com:443/rtmp/, my ''Stream Name /Key'' is 2338659960548?s_bl=1&s_sml=0&s_sw=0&s_vt=api-s&a=Abx5-hmGxER4YNCx. So according to the format of RTMPS setting, the setting of ''RTMP PUBLISH URL'' should be:

RTMP PUBLISH URL:      rtmps://live-api-s.facebook.com:443/rtmp/2338659960548?s_bl=1&s_sml=0&s_sw=0&s_vt=api-s&a=Abx5-hmGxER4YNCx

Step 5. Click ''Apply''

2. DNS Setting

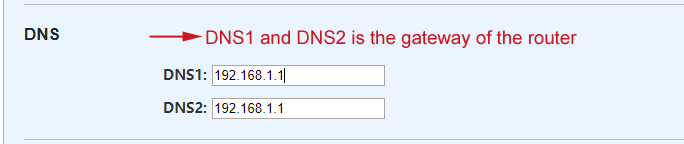

Step 6. Configure the ''DNS1'' and ''DNS2''

If your are using 4G mode, then you can ignore the DNS setting; If you are using WiFi mode or LAN port mode, then you need to configure DNS1 and DNS2.

The value of DNS1 and DNS2 is the gateway of the router.

3. Reboot The Encoder

Step 7. Reboot the video encoder
