| Name | OTV-PR08 8 Channels FTA Tuner Receiver to IP Converter |
| Brand Name: | Dibview |
| Protocol: | UDP, RTP, ARP, ICMP, IGMP |
| Product Name: | Tuner to IP Converter |
| Product Model: | OTV-PR08 |
| Input: | 8 Tuner |
| Tuner in type: | DVB-S/S2/C/ISDB-T/ATSC-T |
| Output: | 246SPTS or 16MPTS over IP(GigE)+2ASI(independent) |
| Scrambling: | DVB-CSA scrambling(optional) |
| CI slot: | No support |
| Support: | BISS decryption, Multiplexing, SimulCryption |
| Application: | Digital TV IPTV Headend |
Product Description
Overview:

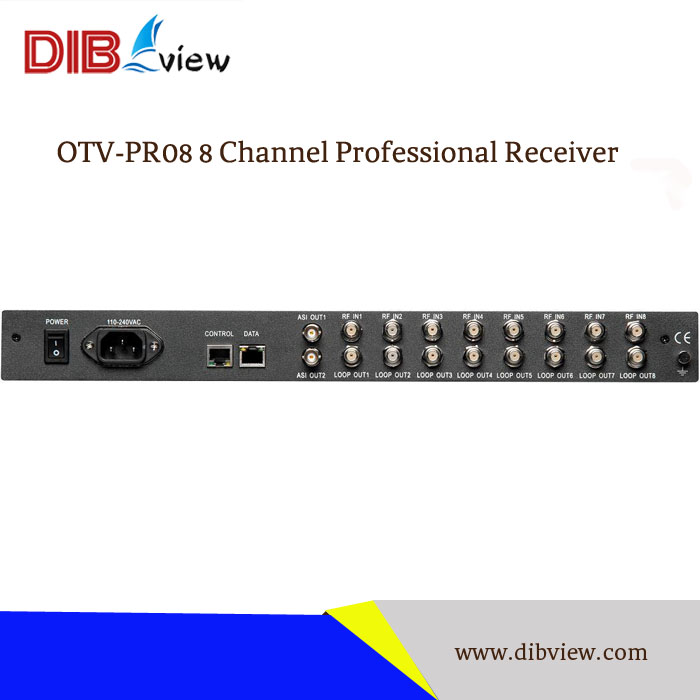

OTV-PR08 8 Channel Professional Receiver is a high density, digital tv professional receiver, multiplexer and scrambler, which was designed to receive up to eight FTA Tuner (DVBS/S2/T/T2/C/ISDBT/Tb) or BISS encrypted SD and HD broadcasting streams from satellite (or cable, terrestrial) network in 1U.
OTV-PR08 8 Channel Professional Receiver with multiple options, high density and superior performance, support up to five RF demodulation options, including DVB-S/S2 from satellite, DVB-C from cable, DTMB, ATSC and ISDB-Tb terrestrial input, each option with a maximum input eight channels simultaneously. It deliver high quality content or better system capacity for operators compared with the professional IRD on the world market today.
OTV-PR08 8 Channel Professional Receiver enables service providers to offers a wide range of cost-effetive, high-quality and reliable services to subscribers with a lower cost, It can be widely used in DTV front-end system and remote front-end systems.
Key Features:
Tuner inputs support DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb, ATSC-T, DTMB for option
Each Tuner input with loop out interface, for the convenience of next device
Up to 246*SPTS or 14*MPTS output over IP addresses or ports via GigE
IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol
Support PID mapping and PSI/SI processing
Capable of TS multiplexing, SimulCrypt CA, DVB-CSA scrambling, BISS decryption.
Realize optimum transmission performance in low latency
Easy and convenient operation, with keyboard on front panel and LCD display
Web-based management
Technical Specifications:
Item | Description | |||
Tuner RF Input Options | ||||
Standard Satellite Input Option | Number of Inputs | 8 x L-Band Input (with Loop Out each) | ||
Connector Type | F-Type (Female, 75Ω) | |||
Standards | DVB-S (EN300421) DVB-S2(EN302307) | |||
Demodulation | DVB-S: QPSK DVB-S2: QPSK/8PSK | |||
Frequency Range | 950MHz to 2150MHz | |||
Input Signal Level | -65 to -25dBm | |||
LNB Power Output | 0V/+DC 13V/18V, Imax=400mA | |||
DVB-S2 16APSK/32APSK Satellite Input Option | Number of Inputs | 8 x L-Band Input (with Loop Out each) | ||
Connector Type | F-Type (Female, 75Ω) | |||
Standards | DVB-S (EN300421) DVB-S2(EN302307) | |||
Demodulation | DVB-S: QPSK DVB-S2: QPSK/8PSK/16APSK/32APSK | |||
Frequency Range | 950MHz to 2150MHz | |||
Input Signal Level | -65 to -25dBm | |||
LNB Power Output | 0V/+DC 13V/18V, Imax=400mA | |||
DVB-C Cable Input Option | ||||
Number of Inputs | 8 x RF Input (with Loop Out each) | |||
Connector Type | F-Type (Female, 75Ω) | |||
Standards | DVB-C (EN300429) | |||
Constellations | 16/32/64/128/256 QAM | |||
Frequency Range | 50MHz to 860MHz | |||
Input Signal Level | -20 to +20dBm (64QAM) | |||
ISDB-T Terrestrial Input Option | ||||
Number of Inputs | 8 x RF Input (with Loop Out each) | |||
Connector Type | F-Type (Female, 75Ω) | |||
Standards | ISDB-T/Tb (ARIB STB B-31) | |||
Constellations | 16QAM, 64QAM | |||
Bandwidth | 6/7/8MHz | |||
Frequency Range | VHF: 174-216 MHz, UHF: 470-860 MHz | |||
Input Signal Level | >-81dBm | |||
ATSC-T Terrestrial Input Option | ||||
Number of Inputs | 8 x RF Input (with Loop Out each) | |||
Connector Type | F-Type (Female, 75Ω) | |||
Standards | ATSC A-53 | |||
Constellations | 8VSB, 16VSB | |||
Bandwidth | 6MHz | |||
Frequency Range | 100 to 900MHz | |||
BISS Decryption Option | ||||
BISS Modes | Mode 0, Mode 1 | |||
Decryption Capability | Up to 100 Session Words(SWs)/programs | |||
DVB ASI Output | ||||
Numbers of ASI | 2 x ASI Output | |||
Connector Type | BNC (Female, 75Ω) | |||
Data Format | 188/204 Bytes MPEG-TS packet length | |||
Bit Rate | 1.5 to 100Mbps each | |||
IP Streaming Output | ||||
Numbers of Output | 1 x 100/1000 Base-T Ethernet | |||
Connector | RJ-45 | |||
TS Format | 7 x 188Byte | |||
IP Encapsulation | MPEG TS-over-UDP/RTP | |||
MEPG TS Mode | MPTS or SPTS | |||
Number of Output TS | 14 SPTS or 246 MPTS | |||
Addressing | Unicast or Multicast | |||
Supported Protocol | UDP, RTP, ARP, ICMP, IGMP | |||
TS Multiplexing | ||||
Capacity of Multiplexing | Up to 24 TS and 512 programs | |||
Operation Mode | TS Pass through or Multiplexing | |||
PCR | Auto correction | |||
PSI | PSI auto-generation, manual insertion | |||
PID | Remapping, filtering and pass-through | |||
PSI/SI Standards | ISO/IEC 13818-1, DVB SI(ESI EN300468) | |||
Real-time Statistics | TS rate, program rate, PID rate | |||
Others | Smart search of programs | |||
TS Scrambling Option | ||||
Capacity of Scrambling | Up to 256 programs | |||
Scrambling Algorithm | Comply with DVB-CSA | |||
Numbers of CAS | Up to four DVB SimulCrypt CA(s) | |||
CAS Interface Protocol | TCP/UDP (via NM interface) | |||
EMM Bandwidth | Up to 3 Mbps | |||
Scrambling Level | Program-level | |||
Network Management | ||||
Interface | 1 x 10/100 Base-T Ethernet | |||
Connector | RJ-45 | |||
Management | Web and SNMP | |||
The Working Environment | ||||
Power Supply | AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz | |||
Power Humidity | 9~ 89% non-condensed | |||
Operation temperature | 0 -50°C | |||
Storage temperature | -20-80°C | |||
Dimensions | 482mm x 400mm x 44mm | |||
Weight | 5.5Kg | |||
