Overview:

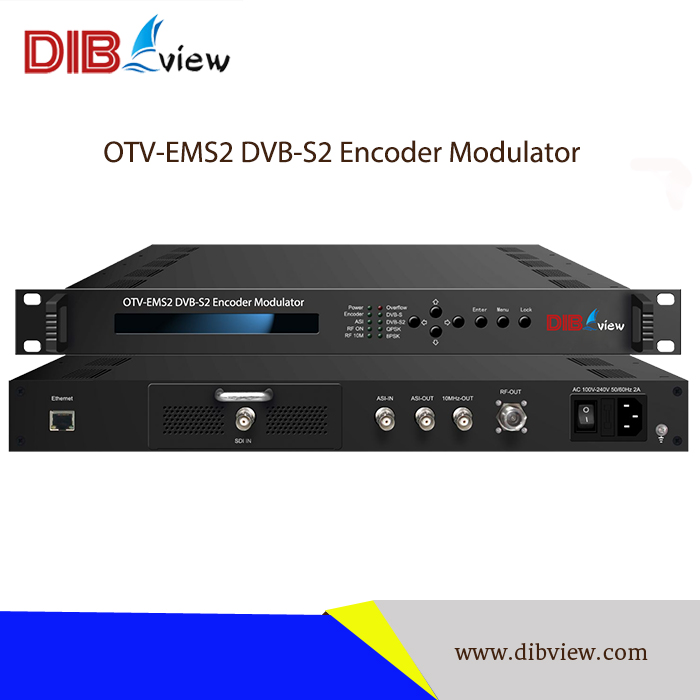

OTV-EMS2 DVB-S/S2 Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as request. It is also equipped with 1 channel ASI input for pass through or TS MUX. It outputs ASI and DVB-S/S2 RF.

The signal source could be from CCTV cameras, Blue-ray players and etc. OTV-EMS2 DVB-S/S2 Encoder & Modulator adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, OTV-EMS2 is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.

Key Features:

• CVBS/SDI/HDMI/YPbPr…optional signals in & 1*ASI in

• MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional

• Support DVB-S/S2 RF output and ASI output

• Output Frequency: 950-2150MHz (IF: 50-200MHz -----OTV-EMS2A)

• Symbol Rate: 0.05-20Msps

• Support Low latency

• Support BISS function

• Support RF 24V power output

• Support 10MHz reference clock output

• Support Web NMS and front panel LCD & Keyboard control

• Upgrade device through web NMS

Technical Specifications:

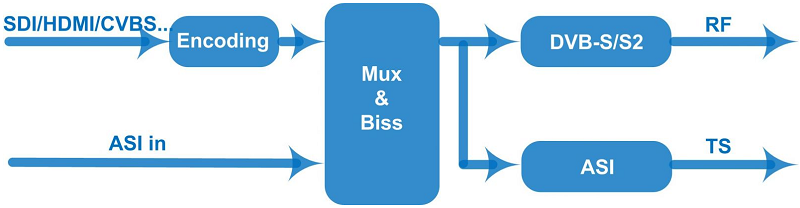

Key Diagram:
