Overview:

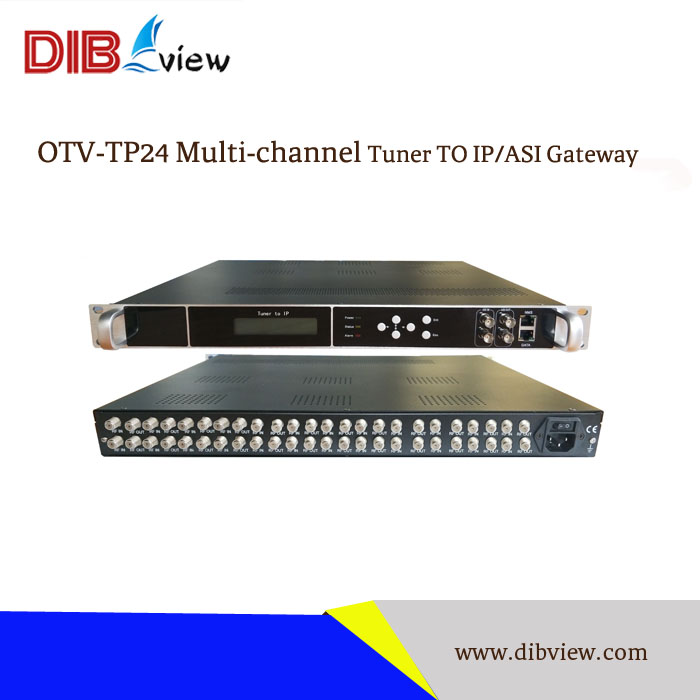

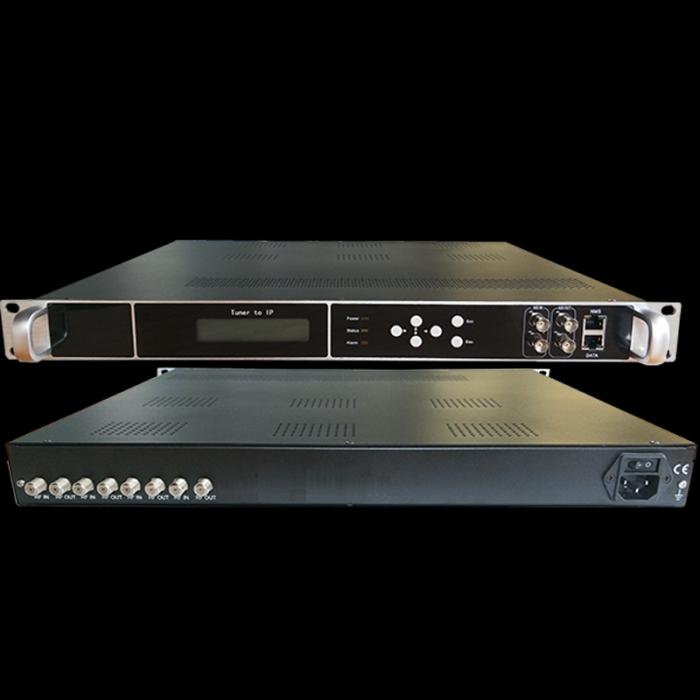

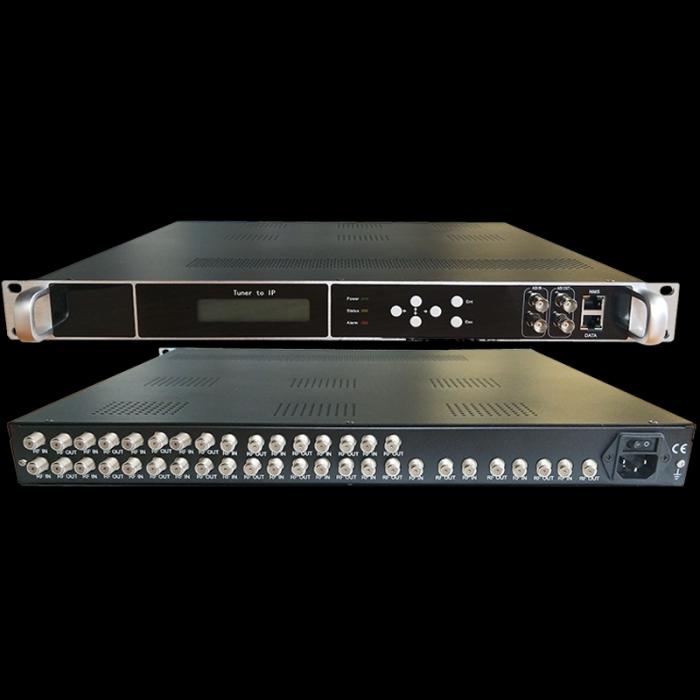

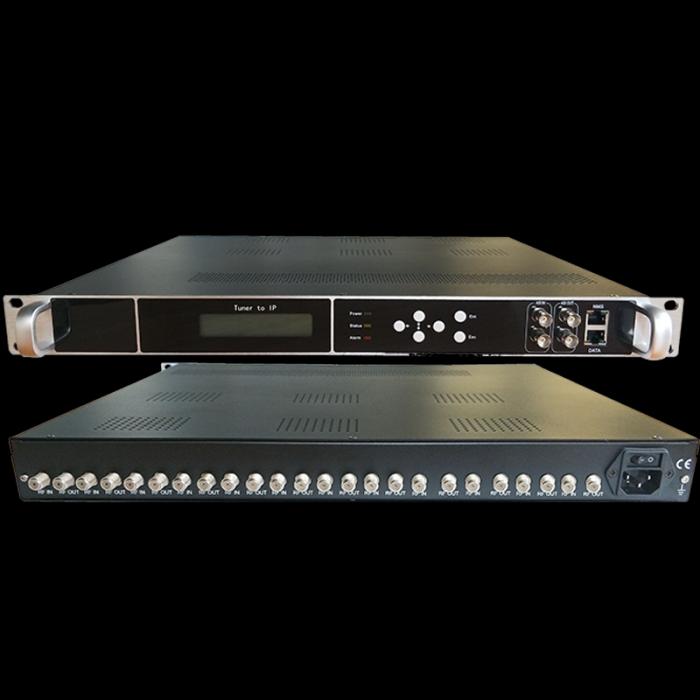

OTV-TP24 4/8/12/16/20/24 Channel Tuner To IP Gateway is a high-density, FTA Professional TS Processor equipped with multichannel independent tuners, which can be either of DVB-S2/S/ATSC/DVB-C/DVB-T/T2/ISDB-T/DTMB) input, demodulating to TS and encapsulating output IP packet by 256*SPTS and 4*MPTS channels simultaneously. It is integrated with tuner demodulation with ASI input  & gateway function, which can demodulate from Max. 24 tuners and directly convert the TS from DVB-ASI, then output the IP package through different IP address and ports.

OTV-TP24 enables an all-IP headend architecture, resulting in a more scalable and lower-cost transition to IP-based services. It distribute any HD and SD of unencryped Tuners Channels to unlimited TVs over the existing TV coax cables with real time perfect quality at any distance. This is an ideal solution for environments where you have a large number of air Channel, and used largely to Medium-Scale IPTV, Hotel, Entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast environments in limited budget severely.

OTV-TP24 can be used in some of the most famous ballparks in the world, this is an ideal solution for environments where you have a large number of displays, such as stadiums, entertainment facilities, or broadcast environment. This DVB to IP Gateway is designed especially for high channel density environments where Rapid deployment, Easy management and compatibility are critical.

Key Features:

• Up to 24  FTA  Tuners RF (DVB-T/T2/DVB-C/DTMB/ISDB-T/ATSC) input

• Two separate ASI input for External TS Multiplexing

• Two separate ASI output

• Simultaneously 4*MPTS and 256*SPTS over UDP/RTP IP out in Tuners Gateway

• 4 separate multiplexing and Up-converter modulating adjacent carrier out

• Selectable the Value of PCR PID same as Video PID

• LCN (Logical Channel Number) support

• PSI/SI editing & inserting

• PID Remapping & Filtering

• Support PCR correct and PCR interval adjusting

• Superior Shoulders and Excellent Modulation Quality MER

• Low Power Consumption and high reliability with MTBF( mean time between failure)≤87600 hours.

• Easy-to-use System Management via Web

• Low-Cost Per Channel, competitive price

Technical Specifications:
