Your Location : Home >> Product Center >> Others >> OTV-ProVideo UHD 4K IPTV Media Player Android TV Box

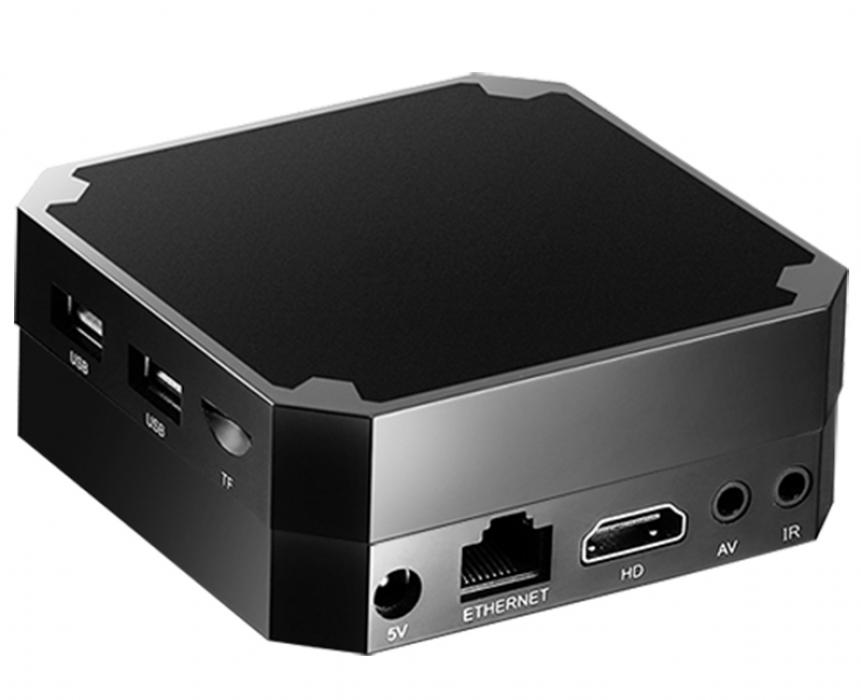

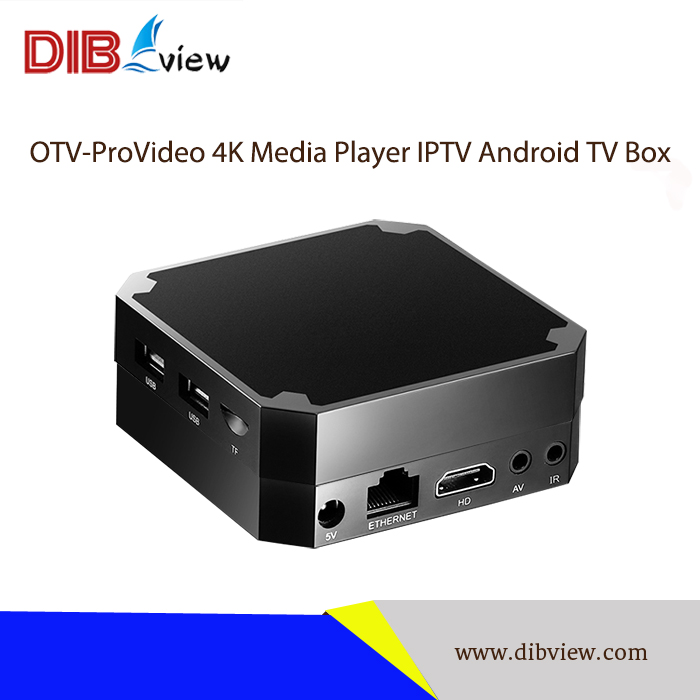

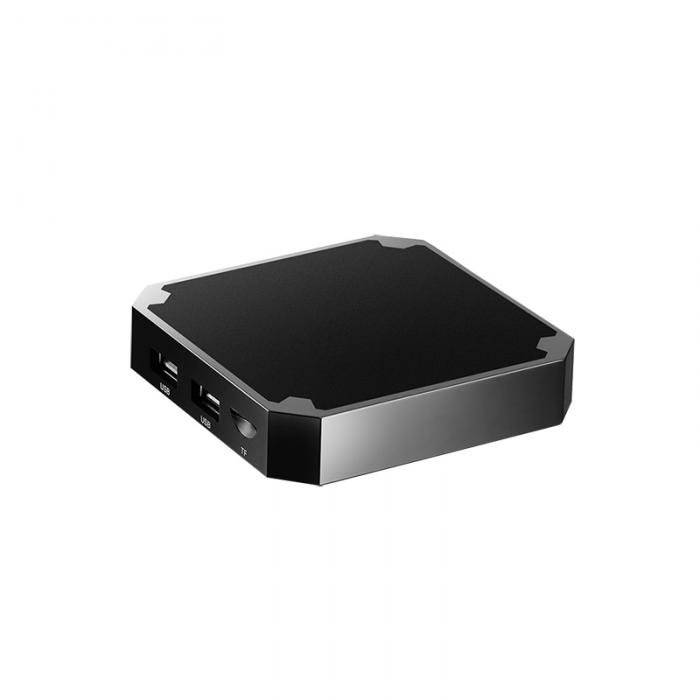

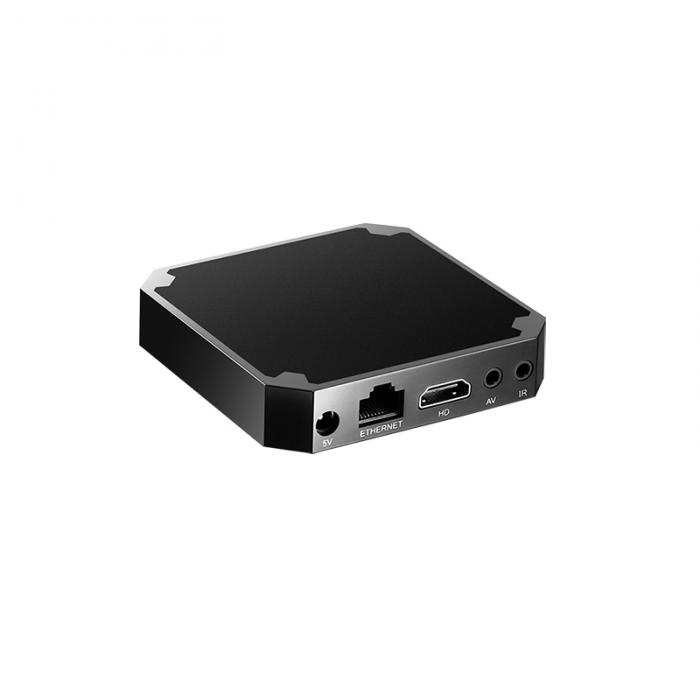

NameOTV-ProVideo UHD 4K IPTV Media Player Android TV Box
Brand Name:Dibview
Model Number:OTV-ProVideo
Ethernet:100M
CPU:Amlogic S905W Quad-core 64-bit
Internal Storage:16GB eMMC
Bluetooth:No
Video Output:HDMI 2.0
GPU:Penta-core Mali-450
Wireless:Yes
OS:ANDROID
Memory:2G DDR3
OTA Update:YES
GOOGLE Cast:YES

Product Description

Overview:


OTV-ProVideo UHD 4K IPTV OTT Media Player Android TV BOX is widely used in Hotel, Community, Hospital and others various system application. We offer OEM and ODM customization on user interface and function to meet all kinds of project requirements.


OTV- ProVideo UHD 4K IPTV OTT Media Player Android TV BOX is based on Android 7.1.2 OS, with powerful functions, not only support launch Hotel/Community Project APK when power on for system integrator, also open to built-in applications such as YouTube, Hulu, Netflix Flixster, Skype video call, MSN, facebook, twitter, QQ etc. for retailer OTT business, DDR3 1GB (2GB Optional) RAM and EMMC 8GB (16GB Optional)ROM allows higher speed to browse website, play games, run APPs, watch movie smoothly and gives more space to download APPs, movie, music, game, etc. It brings awesome home theater and gaming experience.


Key Features:

  • Wide application: It integrated the latest media player software, with full functions of the multimedia entertainment, Support the vast majority of Android APP

  • Language: English French German Spanish Italian etc. multilateral language

  • CPU Amlogic S905W Quad Core 64bit ARM Cortex-A53@2GHz

  • GPU Penta-Core ARM Mali-450MP @750MHz

  • Mouse/Keyboard: Support mouse and keyboard via USB

  • Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

  • Support Function Manual on Remote Controller, no need TV remote controller to control TVs, Box controller can control the TVs, mute, volume adjustment, power on/off, easy operation and save space

  • Support DLNA function

  • Support Email,office suit etc.

  • Support Image: HD JPEG, BMP, GIF, PNG, TIF

  • Local Media playback, Support HDD, U Disck ,TF Card .

  • Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.

  • Apps download freely form android market, amazon app store etc.


Technical Specifications:

Item

Description

Video

  • AMLogic Video Engine(AVE)with dedicated hardware decoders and encoders

  • Supports multiple“Secured”video decoding sessions and simultaneous decoding and encoding

  • Video/Picture Decoding:

  • VP9 Profile-2 up to 4K*2K

  • H.265 HEVC MP-10@L5.1 up to 4K*2K@

  • H.264 AVC HP@L5.1 up to 4K*2K

  • H.264 MVC up to 1080P@60fps

  • MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)

  • WMV/VC-1 SP/MP/AP up to 1080P@60fps

  • AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

  • MPEG2 MP/HL up to 1080P@60fps

  • MPEG1 MP/HL up to 1080P@60fps

  • RealVideo 8/9/10 up to 1080P@60fps

  • Low latency 1080P H.264 60fps encoder

  • HDR10 and HLG HDR Video Processing

  • Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats

  • Video/Picture Encoding

  • Independent JPEG and H.264 encoder with configurable performance/bit-rate

  • JPEG image encoding

  • H.264 video encoding up to 1080P@60fps with low latency

Audio

  • Low Power MediaCPU with DSP audio processing

  • Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

  • Built-in stereo audio DAC

  • Built-in SPDIF/IEC958 and PCM serial digital audio input/output

  • Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM

I/O

1*HDMI

4K*2K UHD Output, HDMI 2.0A

1*AV OUT

480i/576i standard definition output

2*USB

1*USB Host Port ,1*USB Device

1*IR Receiver

Remote Receiver Connect

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

Core Information

CPU

Amlogic S905W Quad Core ARM Cortex A53 @2GHz

GPU

Penta-core Mali-450MP GPU @ 750MHz

Memory

DDR3:1GB (Option: 2GB)

Flash

EMMC: 8GB (Option:16GB)

WiFi

IEEE 802.11 b/g/n

Management

OS

Android 7.1.2

Ethernet Interface

RJ45

The Working Environment

Dimension

82mm(W)*82mm(D)*17mm(H)

Module

Plastic: Black Color

Net Weight

0.3KG

Input Voltage

DC 5V/2A

LED indicator Working

Blue

Standby

Red

Packing

Qty per unit packing

1pc

Unit packing

(LxWxH)170*110*55(mm)

Unit packing (G.W.)

0.425Kg

Qty

Per export carton 20PCS

Export carton

(WxHxL)370*290*240(mm)

Accessories

HDMI cable*1

IR Remote *1

User Manual *1

Power adapter*1


Applications:

OTT System

Hotel/Community Various IPTV System
