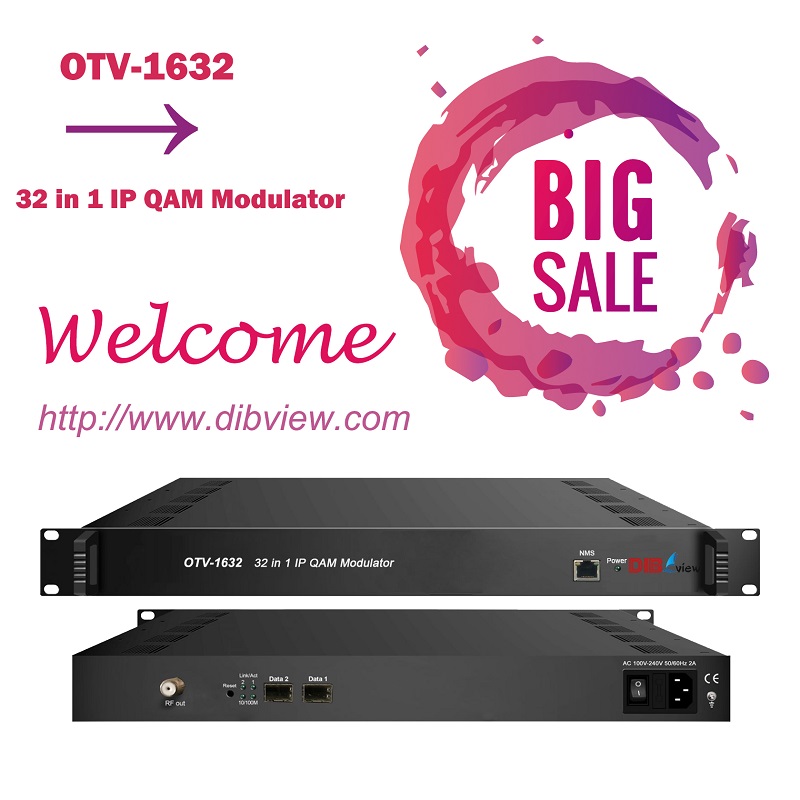

NameOTV-1632 32 in 1 IP Edge QAM Modulator
Brand Name:Dibview
Model Number:OTV-1632
Input:512 IP 100/1000M Ethernet port
IP Protocol:TS over UDP/RTP, unicast and multicast
Mux:1024 IP input, 32 IP output
Max Simulscrypt:4
Symbol Rate:5.0~7.0 Msps, 1ksps Stepping
Constellation:16, 32, 64, 128, 256 QAM
RF Range:50-960 MHz
TS output:32 IP output over UDP/RTP/RTSP
QAM Channel out:32 QAM RF out
Application:DTV Headend System

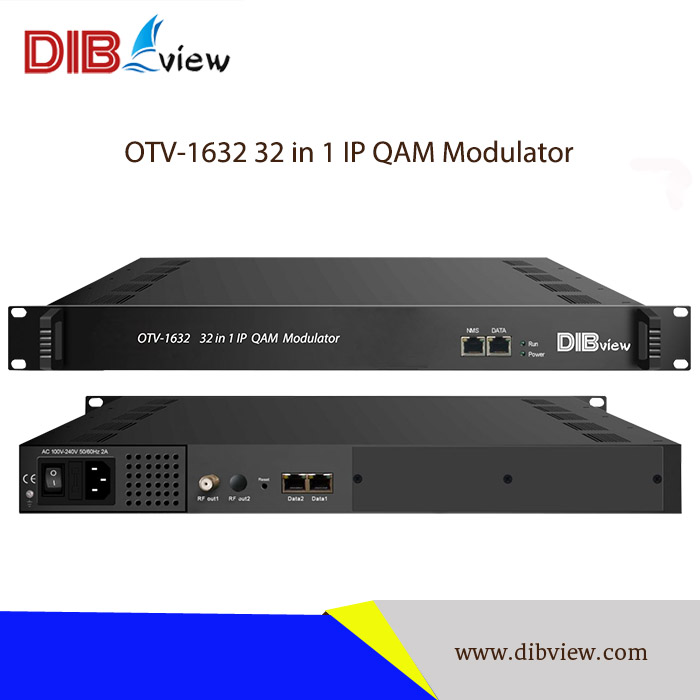

Product Description

Overview:


OTV-1632 32 in 1 IP QAM Modulator is DIBVIEW's Mux-scrambling-modulating all-in-one device.



OTV-1632 32 in 1 IP QAM Modulator supports maximum 1024 IP input through the GE ports and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.


Key Features:


  • 3 GE ports (max 1024 IP in) (SFP interface optional)

  • Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out

  • Data port (located on front panel), max 128 IP in

  • Max. 840Mbps for each GE input

  • Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing

  • Supports up to 256 PIDS remapping per channel

  • Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP

  • 32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B

  • Supports RS (204,188) encoding

  • Support Web-based Network management


Technical Specifications:


Item

Description

Inputs



Input

Max 1024 IP input through 3 (front-panel Data port

Data 1 and Data 2) 100/1000M Ethernet Port

(SFP interface optional).

Each Data1 or Data 2 port can input maximum 512 IP,

while front-panel Data port can input maximum 128 IP

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Rate

Max 840Mbps for each GE input

Mux

Input Channel

1024

Output Channel

32

Max PIDs

256 per channel

Functions

PID remapping(auto/manually optional)

PCR accurate adjusting

PSI/SI table automatically generating

Scrambling Parameters

Max simulscrypt

CA 4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

DVB-C Modulation Parameters

J.83A

Constellation:16/32/64/128/256QAM

Bandwidth : 8M

J.83B

Constellation: 64QAM/256QAM

Bandwidth : 6M

QAM Channel

32 non-adjacent carrier

Modulation Standard

EN300 429/ITU-T J.83A/B(DVB-C)

Symbol Rate

5.0~7.0Msps,1ksps stepping

Constellation

16, 32, 64 ,128, 256QAM

FEC

RS (204,188)

RF Output

Interface

1 F typed output port for 32 carriers, 75Ω

RF Range

50~960MHz, 1kHz stepping

Output Level

-20dBm~+10dBm(87~117dbµV), 0.1dB stepping

MER

≥ 40dB

Management

32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports

Network management software (NMS) supporting

The Working Environment

Power Supply

AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Operation temperature

0 -50°C

Storage temperature

-20-80°C

Dimensions

440mm x 420mm x 44.5mm

Weight

4.5Kg


Application:


Carrier-grade Cable TV, Satellite Up-link

Digital TV, OTT/IPTV head-end system

Remote live Rebroadcasts and real-time transmission

Video over Coax Cable solution in Hotel, Campus, Enterprise

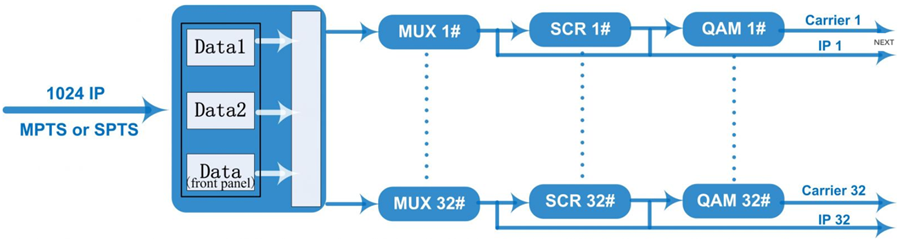

Key Diagram:





OTV-1632: 32 in 1 IP Edge QAM Modulator



OTV-1600: 16 in 1 IP Edge QAM Modulator
