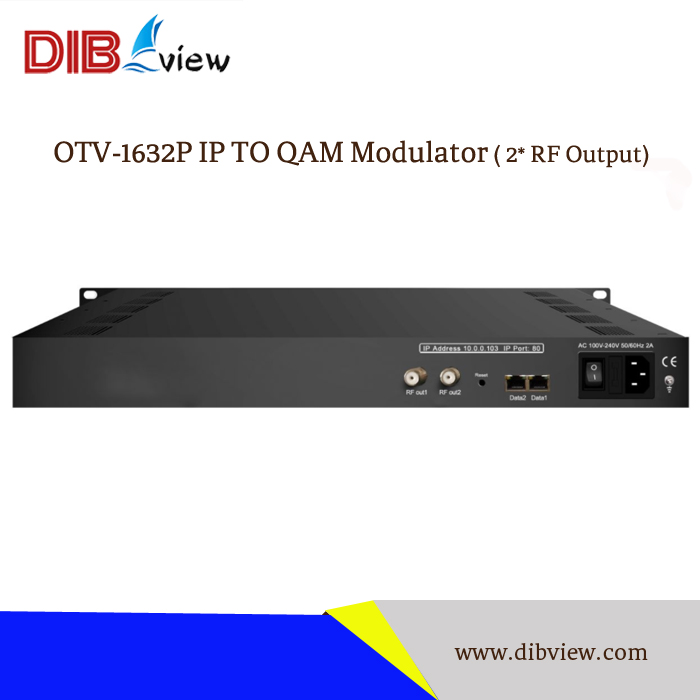

Name	OTV-1632P 32 in 1 IPEdge QAM Modulator With 2 RF Output
Brand Name:	Dibview
Model Number:	OTV-1632P
Input:	5122 IP 2100/1000M Ethernet port
IP Protocol:	TS over UDP/RTP, unicast and multicast
Mux:	1024 IP input, 32 IP output
Max Simulscrypt:	4
Symbol Rate:	5.0~7.0 Msps, 1ksps Stepping
Constellation:	16, 32, 64, 128, 256 QAM
RF Range:	50-96 MHz
TS output:	32 IP output over UDP/RTP/RTSP
QAM Channel out:	32 QAM RF out

Product Description

Overview:

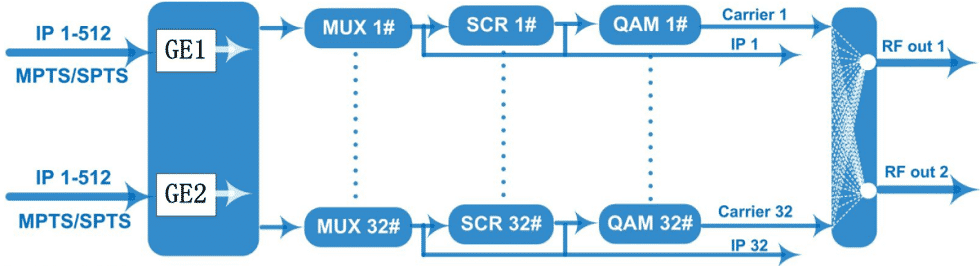

OTV-1632P 32 in 1 IPEdge QAM modulator is Dibview Mux-scrambling-modulating all-in-one device.

OTV-1632P supports maximum 1024 IP input through the GE port and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface.

OTV-1632P pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.

Key Features:

2 GE input, Data1 and Data2 (SFP interface optional)
Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
Max 840Mbps for each GE input
Supports accurate PCR adjusting
Supports CA filtering, PID remapping and PSI/SI editing
Supports up to 256 PIDS remapping per channel
Support 32 multiplexed or scrambled TS over UDP/RTP/RTSP output
32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
Supports RS (204,188) encoding
Support Web-based Network management

Technical Specifications:

Item	Description
Inputs
Input		512×2 IP input, 2*100/1000M Ethernet Port(SFP interface optional)
Transport Protocol		TS over UDP/RTP, unicast and multicast, IGMP V2/V3
Transmission Rate		Max 840Mbps for each GE input
Multiplexing
Input channel		1024 channels
Output channel		32
Maximum PID		256 per channel
Function		PID remapping (automatically or manually)
		PCR accurate adjusting
		Generate PSI/SI table automatically
The Scrambling Parameters
Maximum simulcrypt CA		4
Standard		ETR289, ETSI 101 197,ETSI 103 197
Connection mode		Local/ remote connection
DVB-C Modulation Parameters
J.83A		Constellation : 16/32/64/128/256QAM
		Bandwidth : 8M
J.83B		Constellation : 64QAM/256QAM
		Bandwidth : 6M
QAM Channel		32 non-adjacent carrier
Modulation Standard		EN300 429/ITU-T J.83A/B(DVB-C)
Symbol Rate		5.0~7.0Msps, 1ksps stepping
Constellation		16, 32, 64 , 128, 256QAM
FEC		RS (204, 188)
RF Output
Interface		2 F typed output port for 32 carriers, 75Ω
RF Range		50~960MHz, 1kHz stepping
Output Level		-20dBm~+10dBm(87~117dbµV), 0.1dB stepping
MER		≥ 40dB
TS Output
32 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports (SFP)
System
Network Management Software(NMS) Supporting
The Working Environment
Warranty		3 years with free telephone support
Power Supply		AC 100V±10%, 50/60Hz; AC 220V±10%, 50/60Hz
Power consumption		16W
Operation temperature		0 -45°C
Storage temperature		-20-80°C
Dimensions		420mm x 440mm x 44.5mm
Weight		5Kg
