NameOTV-1600 16 in 1 IPEdge QAM Modulator
Brand Name:Dibview

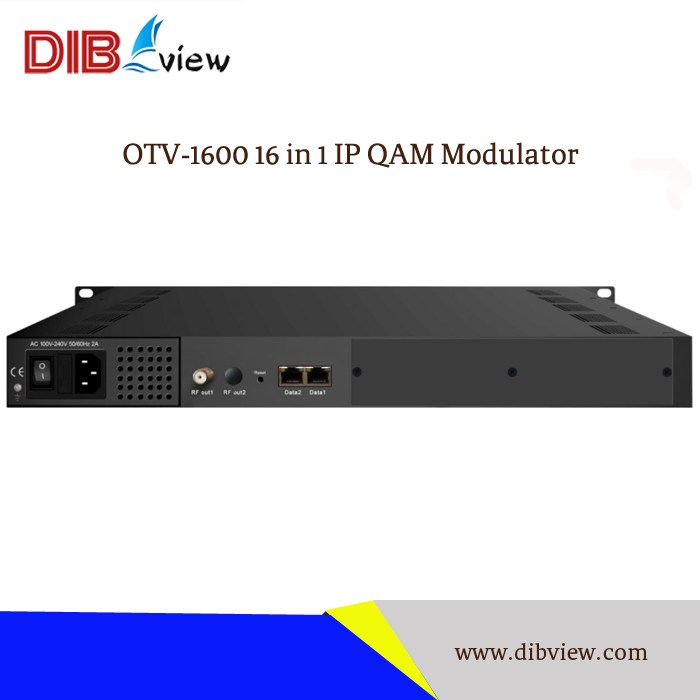

Model Number:OTV-1600
Product Name:16 in 1 IPEdge QAM Modulator

Product Description

Overview:


OTV-1600 16 in 1 IPEdge QAM modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by Dibview


OTV-1600 has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 512 IP input through the GE port and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface.


OTV-1600 is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.


Key Features:


  • 2 GE input, Data1 and Data2 (SFP interface optional)

  • Supports up to 512 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3

  • Max 840Mbps for each GE input

  • Supports accurate PCR adjusting

  • Supports CA filtering, PID remapping and PSI/SI editing

  • Supports up to 180 PIDS remapping per channel

  • Support 16 multiplexed or scrambled TS over UDP/RTP/RTSP output

  • 16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B

  • Supports RS (204,188) encoding

  • Support Web-based Network management


Technical Specifications:


Item

Description

Inputs

Input

512×2 IP input, 2*100/1000M Ethernet Port(SFP interface optional)

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Rate

Max 840Mbps for each GE input

Multiplexing

Input channel

512 channels

Output channel

16

Maximum PID

180 per channel

Function

PID remapping (automatically   or manually)

PCR accurate adjusting

Generate PSI/SI table   automatically

The Scrambling Parameters

Maximum simulcrypt CA

4

Standard

ETR289, ETSI 101 197,ETSI   103 197

Connection mode

Local/ remote connection

DVB-C Modulation Parameters

J.83A

Constellation : 16/32/64/128/256QAM

Bandwidth :8M

J.83B

Constellation : 64QAM/   256QAM

Bandwidth :6M

QAM Channel

16 non-adjacent carrier

Modulation Standard

EN300 429/ITU-T   J.83A/B(DVB-C)

Symbol Rate

5.0~7.0Msps, 1ksps   stepping

FEC

RS (204, 188)

RF Output

Interface

1 F typed output port for   16 carriers, 75Ω

RF Range

50~960MHz, 1kHz stepping

Output Level

-20dBm~+10dBm(87~117dbµV),   0.1dB stepping

MER

≥ 40dB

TS Output

16 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M   Ethernet Ports (SFP)

System

Network Management Software(NMS) Supporting

The Working Environment

Warranty

3 years with free telephone   support

Power Supply

AC 100V±10%, 50/60Hz; AC 220V±10%, 50/60Hz

Power consumption

16W

Operation temperature

0 -45°C

Storage temperature

-20-80°C

Dimensions

420mm x 440mm x 44.5mm

Weight

9Kg

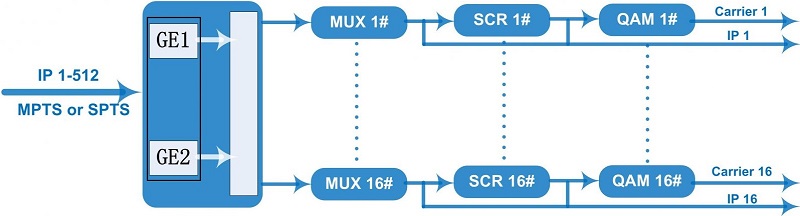

Key Diagram:
