Your Location : Home >> Product Center >> DVB Broadcast Decoder >> OTV-IPD8 Mpeg-2/H.264 4IP to 8 CVBS(AV) SD 8 in 1 Decoder

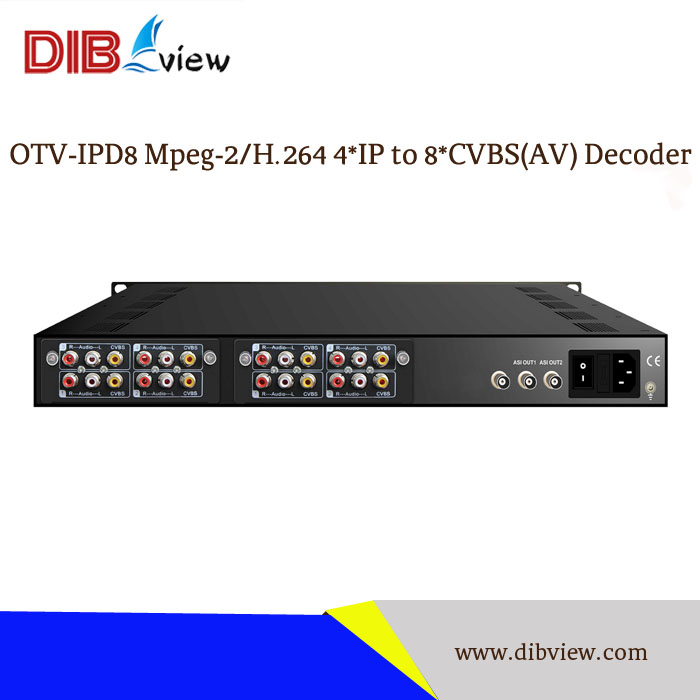

Name	OTV-IPD8 Mpeg-2/H.264 4IP to 8 CVBS(AV) SD 8 in 1 Decoder
Brand Name:	Dibview
Model Number:	OTV-IPD8
Input Signal:	4IP and 1ASI
Video Format:	MPEG-2/H.264/AVS
Interface:	8CVBS(RCA)
Video Resolution:	576i@25fps, 480i@29.97fps

Product Description

Overview:

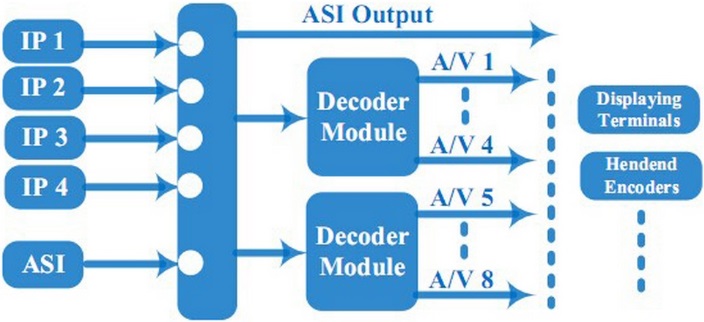

OTV-IPD8 Eight-Channel Mpeg-2/H.264 IPTV Decoder is the professional digital decoder with high reliability design and superior quality, excellent stable performance. This device is a 1 U case which supports digital TS input via both IP and ASI. After decoding process, it outputs as much as 8 channels of analog A/V signals. Its pluggable structure design greatly facilitates the change of decoder modules as needed.

To meet customers' various requirements, OTV-IPD8 is also equipped ASI output to deliver the TS stream to other equipment for more purposes.

Key Features:

Support MPEG-2/H.264/AVS+ Decoding format
With 4*IP and 1*ASI input
8*CVBS video/unbalanced stereo audio decoding out
Real-time bit rate monitoring
High reliability design, stable performance
Easy manage with LCD and web-server remote control

Technical Specifications:

Item	Description
Inputs	4xIP (MPTS/SPTS) (100Mbps Ethernet) (RJ45)
	IP Protocol	UDP (Unicast/multicast)
	1* ASI (BNC)
Decode Part	Video Format	MPEG-2/H.264/AVS+
	Interface	8X CVBS(RCA)
	Video Resolution	576i@25fps, 480i@29.97fps
	Audio Format	MPEG-1 Layer 2
	Interface	8*Unbalanced stereo (RCA)
	Video Format	MPEG-2/H.264/AVS+
General	Operation	LCD display/Control button; Web-server
	Language	Chinese/English
	Dimension (LxWxH)	44 mm×482 mm×410mm
	Environment	0~45°C (Work) -20~80°C (Storage)
	Power Supply	220VAC±10%,50Hz
	Consumption	<25W
