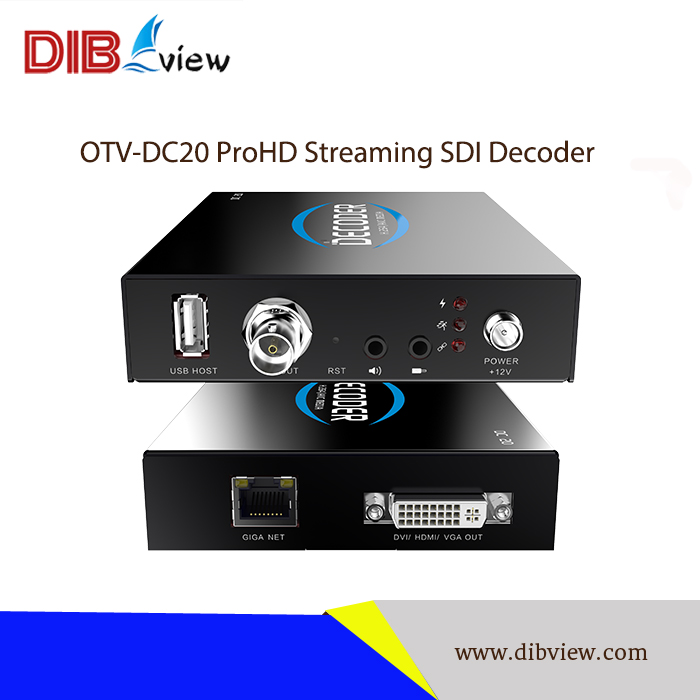

NameOTV-DC20 ProHD Streaming SDI Decoder
Brand:Dibview
Product Name:OTV-DC20 ProHD Streaming SDI Decoder
Video Output Interface:1SD/HD/3G SDI,1DVI-I (compatible with HDMI/DVI and VGA)
Output Signal:SD-SDI(270M), HD-SDI(1.485G) and 3G-SDI(2.97G)
Video Decoding:H.264
Audio Decoding:AAC-LC/G.711 (aLaw/uLaw)
Decoding Delay:≤ 200ms
Media transmission Protocols:RTP/RTSP RTP unicast/multicast, RTMP, HLS

Product Description

Overview:


Dibview OTV-DC20 ProHD Streaming SDI Decoder is a network (IP) HD video strong decoder with high performance. This decoder could get IP-Camera from network, stream media server or stream media from our OTT series encoders (based on RTSP, RTMP unicast or multicast), then outputs video and audio to SDI and HDMI/VGA/DVI through self-adaptive decoding. This decoder supports SDI signals including HD-SDI (1.485G) standard and 3G-SDI (2.97G), supporting 720p, 1080i and 1080p(maximum 60Hz); HDMI output supporting up to 1080p60Hz HD video signal; VGA supporting maximum UXGA output.


Dibview OTV-DC20 ProHD Streaming SDI Decoder support decoding simultaneously 2 channels HD video up to 1080p60, with functions of self-adaptive decoding and smart control on network delay. Under typical network environment, it can control decoding delay lower or equal to 200ms. Even though low code rate decoding and about 10% network packet loss, this decoder could use image enhancement and fault-tolerant technology to clearly restore encoding video and audio, no obvious distortion, smear, frame loss and mosaic phenomenon of pictures with features of actual color reproduction, clear sound and high fidelity. This decoder supports H.264 encoding video with bit rate high up to 12Mbps and decoding output of AACLC/ G.711 encoding video.

Dibview OTV-DC20 ProHD Streaming SDI Decoder has image scaling capacity, could let after-decoding video larger/smaller converting to adapt to different output video format. Audio could be embedded in SDI signal, then synchronously transmitting with video.

Dibview OTV-DC20 ProHD Streaming SDI Decoder supports ONVIF device detecting discovery. This Decoder provides open source SDK, supporting Windows/Linux/Unix cross-platform and programming second development to realize manage and control for equipments.


Key Features:


  • Only support single screen output

  • SDI and HDMI/VGA/DVI output simultaneously or separately output different decoding contents;

  • Gigabit Ethernet connecting, USB interface can be extended for external storage device or wireless network module;

  • Enhanced SDI Cable Driver can promise SD-SDI transmitting distance longer or equal to 350 meters, while HD-SDI transmitting distance is longer or equal to 180 meters, 3G-SDI transmitting distance longer than 100 meters;

  • Support SDI/HDMI various output formats like 1080p30/25, 1080i60/50,720p60/50;

  • HDMI/VGA supporting various common VESA standard display resolution;

  • Video scaling, frame rate conversion and image enhancement;

  • Support RTMP, RTSP, RTP unicast/multicast medial transmission protocol;

  • Input and output of analog audio could realize two-way voice intercom, analog audio with SDI and HDMI embedded audio could be transmitted synchronously;

  • Decoding delay is controlled by intelligent network, lower than 200ms in typical network environment;

  • Image enhancement and fault-tolerant technology, strong resisting error code capability, excellent picture quality, clear acoustic;

  • Provide communication protocol for software development SDK and device management control which can integrate seamlessly with the third-party application platform;

  • Simple and practical WEB management.


Technical Specifications:


Item

Description

Interface

Video output

1*SD/HD/3G SDI,1*DVI-I (compatible with HDMI/DVI and VGA)

Analog audio input

1*3.5mm

Analog audio output

1*3.5mm

Network

1*RJ-45, Gigabit Ethernet Connected

USB

1*USB 2.0 Type-A

Power Supply

DC 12V, 1A (Air screw connector)

Signal

SDI Signal amplitude

0.8Vp-p

SDI impedance

75 ohm

SDI coupling type

AC

Output signal types

SD-SDI(270M),HD-SDI(1.485G),3G-SDI(2.97G)

SDI timing jitter

SD SDI:≤ 0.15UI HD SDI:≤0.8UI 3G SDI:≤1.7 UI

SDI alignment jitter

SD SDI:≤ 0.15UI (1KHz)

HD SDI:≤ 0.2UI (10KHz)

3G SDI:≤ 0.25UI (10KHz)

SDI transmitting distance

Belden 1694A cable standard: SD SDI:≤350m; HD SDI:≤180m; 3D SDI:≤100m

Supported SDI output formats

1080P60/50,1080P30/25/24/ 1080i60/50 720P60/50 570i50 480i60/

HDMI/DVI

Compatible standard

HDMI 1.4 / DVI 1.0

HDCP encryption contents transmitting

Not support yet

HDMI/DVI Supported

output formats

1080p60/50, 1080p/25/30, 1080i60/50, 720p60/50, 480p/576p

VGA

Interface

DVI-I (through DVI-I to VGA adaptor)

Supported output

formats

1080p,720p,UXGA(1600x1200),SXGA(1280x1024),

XGA(1024x768),SVGA(800x600),VGA(640x480)and

compatible with other VESA formats.

Decoding

Video decoding

H.264

Audio decoding

AAC-LC / G.711 (aLaw /uLaw)

Video bitrate range

128Kbps ~ 40Mbps

Audio birate range

AAC: 8Kbps ~ 320Kbps G.711: 64Kbps

Decoding delay

≤ 200ms

Transmission

Media transmission

protocols

RTP/RTSP (compatible RTP over TCP transmission mode),

RTP unicast/multicast, RTMP, UDP, HLS

Controlling transmission

protocols

TCP

Network management

protocols

HTTP

Management

Management interface

Web

Remote Control

Support

Network management

protocols

HTTP

The Working Environment

Power Supply

DC12V 1A

Operation temperature

32 to 140°F / 0 to 60°C

Storage temperature

-20-80°C

Dimensions

138mm x 105mm x 27mm

Weight

0.9Kg

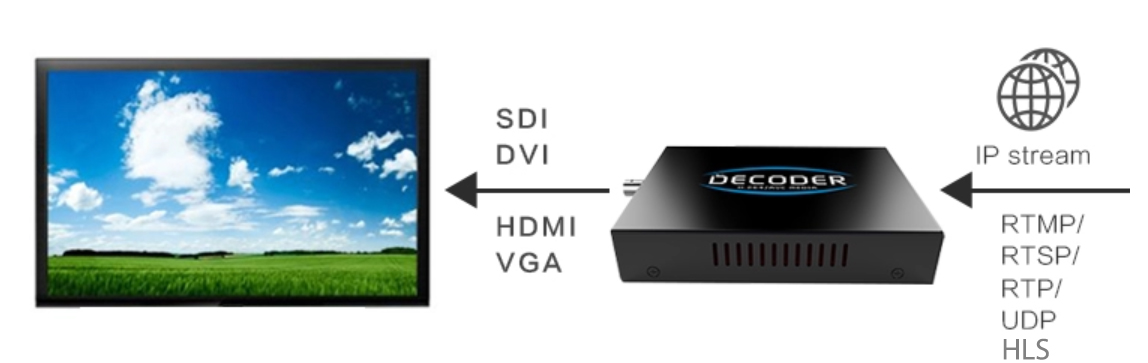

Application:
