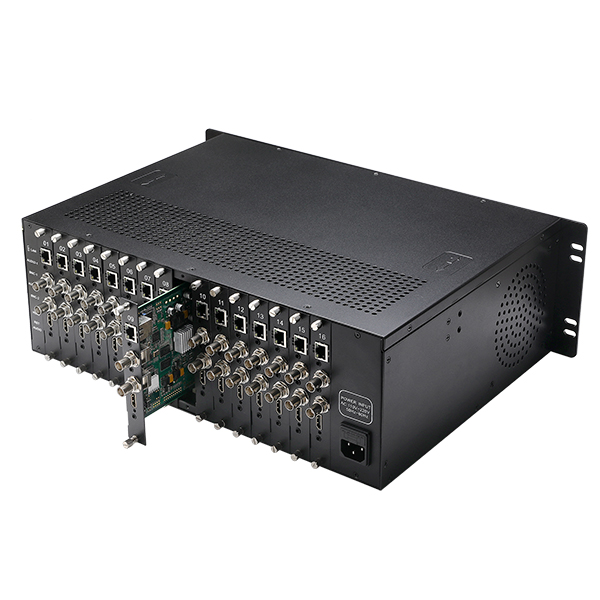

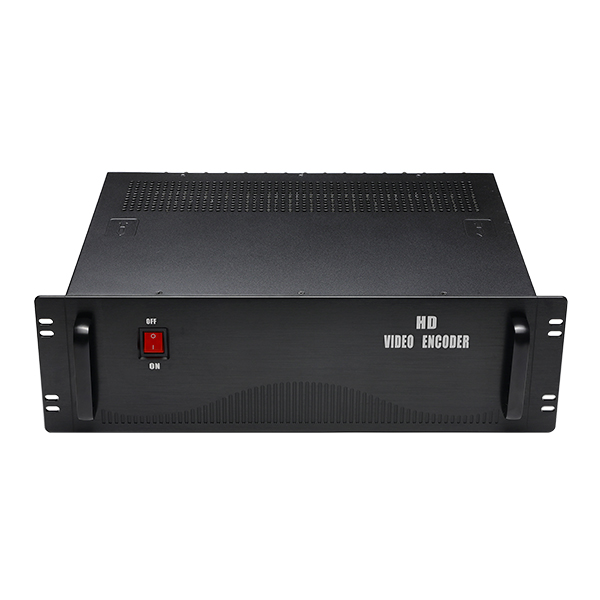

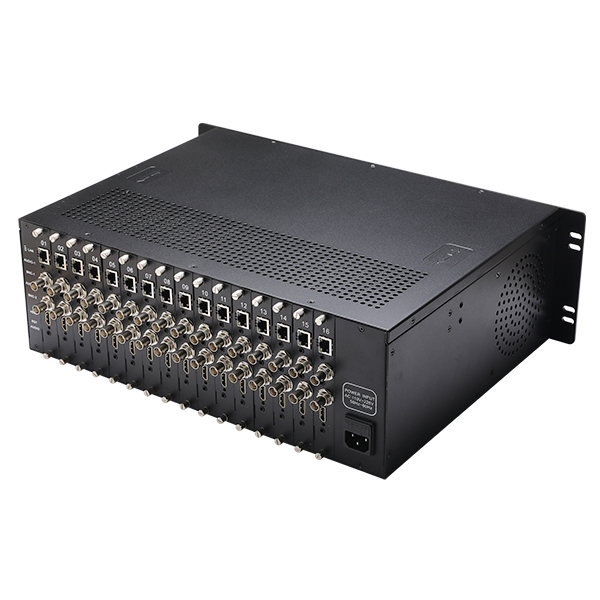

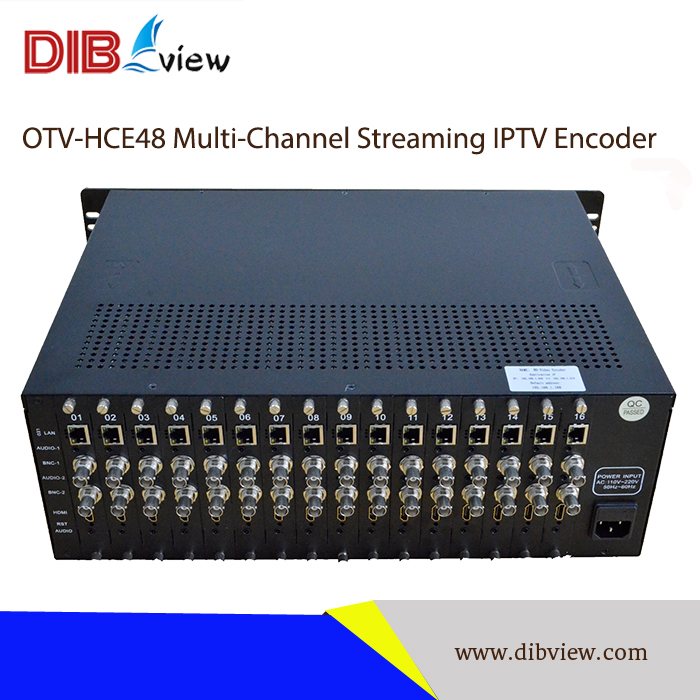

Name	OTV-HCE48 Multi-Channel IPTV Streaming Encoder
Brand:	Dibview
Product Name:	OTV-HCE48 Multi-Channel IPTV Streaming Encoder
Video Input:	16 Channel HDMI+32 Channel CVBS
IP Protocol ouput:	HLS/RTMP/RTSP/HTTP/UDP
Video Encoding:	H.264/AVC
Audio Encoding:	AAC,MP3
Resolution:	Up to 1080P Full HD
Application:	IPTV Headend System
Output:	Dual Stream

Product Description

Overview:

OTV-HCE48 Multi-Channel IPTV Streaming Encoder is most competitive cost and easy-to-use video streaming appliance designed for professional video producers. The product support 16 channel HDMI & 32 channel CVBS input, 16 audio 3.5mm input (optional). Encoding output dual stream of h.264 with MP3/AAC audio format. From any HDMI/CVBS input source such as a camera or switcher, it generates an H.264-encoded stream compliant with RTSP, RTP, HTTP, UDP, HLS and RTMP protocols.

With powerful video pre-compression and efficient adaptive video compression algorithm, OTV-HCE48 Multi-Channel IPTV Streaming Encoder is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.

Key Features:

16 channel HDMI & 32 channel CVBS, 16 audio 3.5mm input (optional)
Support HLS & SDK
Support non-signal encoding
Support TS with Audio Alone
Low power consumption design
Up to 720P, 1080P HD video input
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
Supports MP3 and AAC audio format selection
Encoding specification: BASELINE PROFILE/MAIN PROFILE/HIGH PROFILE
Support a click to restore the default configuration
Support STB decoding
Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
Support multiple equipments display at the same time on a computer
Support network directly connected, don't need match HD collection card.
Providing RTSP/RTP/HLS/HTTP/RTMP/UDP protocol
Support H.264 Main Profile/H.264 High Profile and AAC audio.
Web control interface
Comply with CBR/VBR 16KBIT/S~12MBIT/S standard

Technical Specifications:

Item		Description
Video Encoding
Input	16 channel HDMI & 32 channel CVBS
Resolution	HDMI main streaming: 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480, 720x404,704x576,640x480,640x360, auto HDMI sub-streaming: 1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto CVBS main streaming: NTSC max. supports 720480 PAL max. supports 720576 CVBS sub-stream: NTSC: 720480 PAL: 720576
Video Bitrate	0.8Mbps~12Mbps
Bitrate Mode	CBR/VBR
GOP Type	Adjustable
Video De-interlacing	De-interlacing, noise reduction, sharpening
OSD Image	Image, text
Audio Encoding
Encoding	AAC,MP3
Resample Rate	Adaptive output sample rate (option)
Sampling	32000,44100,48000
Bitrate	64Kb/s~384Kb/s
IP Streaming Output
Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol HDMI to IP out, 4TS over IP stream out (HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution (up to 1080P) for large screen application, 2 channels with lower resolution (up to 720P) for small screen application) CVBS to IP out, 4TS over IP streams output can be set with different resolution, bitrate, protocol.
Connector: RJ45, 100/1000M
Management
Configuration Interface: web-based UI
Upgraded: via network
Connector: RJ45, 100/1000M Ethernet interface
The Working Environment
Dimension		(WxDxH): 484mmx365mmx148mm
Gross Weight		8KG
Temperature		0 to 45(For working), -20 to 80(For storing)
Input Voltage		AC220V±10%, 50/60 Hz
Power Consumption		80W
