Overview:

OTV-D300 4K UHD H.265 HDMI SDI Live Video IPTV NDI Streaming Decoder is a professional hardware decoding device that can decode multiple video streams without relying on a computer, It outputs SDI signal and HDMI signal video, supports 4K UHD resolution, and supports multi-channels video stream split screen to the display wall and dynamic switching.

OTV-D300 4K UHD H.265 HDMI SDI Live Video IPTV NDI Streaming Decoder is an excellent Hardware decoder for professional broadcast level IPTV & OTT system, Point to Point Application, hospitality Hotel IPTV system application, remote multi-window video conference, remote education and remote medical treatment, live broadcasting.

When you need to decode and split the multi-channel 4K UHD network video stream, even if you need to switch the multi-channel network stream to the wall, you only need to connect the OTV-D300 4K UHD decoder to the network and the large screen interface. Various web videos can be presented in real time on a large screen according to your needs.

Key Features:

• High compatibility

• NDI HX/H.265/H.264 video decoding

• 4K UHD resolution

• Ultra low latency decoding

• Multi-stream switching

• Image scaling/ frame rate conversion

• 7*24h working mode

• SDK provided

• 16 channels video split to the screen Cost-effective price

Technical Specifications:

Product Advantage:

Powerful decoding function, support 4K H.265 decoding, support 16 channels of video simultaneous decoding output.

Support NDI HX/H.265, H.264 decoding, support 16 channels 1080p30, or 4 channels 4k HD video simultaneous decoding output.

HDMI and SDI dual interface output, support HDMI (up to 3840x2160@60Hz) and SDI (up to 1920x1080@60Hz) same or different content output.

Using Dibview's image enhancement and fault-tolerant technology, for low code-encoded Video, 10% of network packet loss video, etc., clear and distortion-free decoding output.

Using Dibview's intelligent delay control technology, the typical network environment is less than 200ms decoding delay.

With video stream dynamic switching function, it supports multi-screen custom split screen display.

Support 16 channels of video stream dynamic switching output, seamless switching is smooth.

Support 16 channels of video custom 1/2/4/6/8/9/16 split display.

Support audio mix output.

Support Tally display and column indication.

High compatibility, compatible with various types of network video decoding output, suitable for a wide range of video stream dynamic switching functions, support multi-screen custom split screen display.

The input supports mainstream network video protocols such as RTMP/HLS/TS over UDP/RTP/RTSP, and supports protocols such as SIP and VOCP. Compatible with hundreds of front-end encoding products, streaming media servers, network cameras, etc.

SRT supported to ensure secure and reliable transmission.

Support HDMI/SDI embedded audio output and analog audio output.

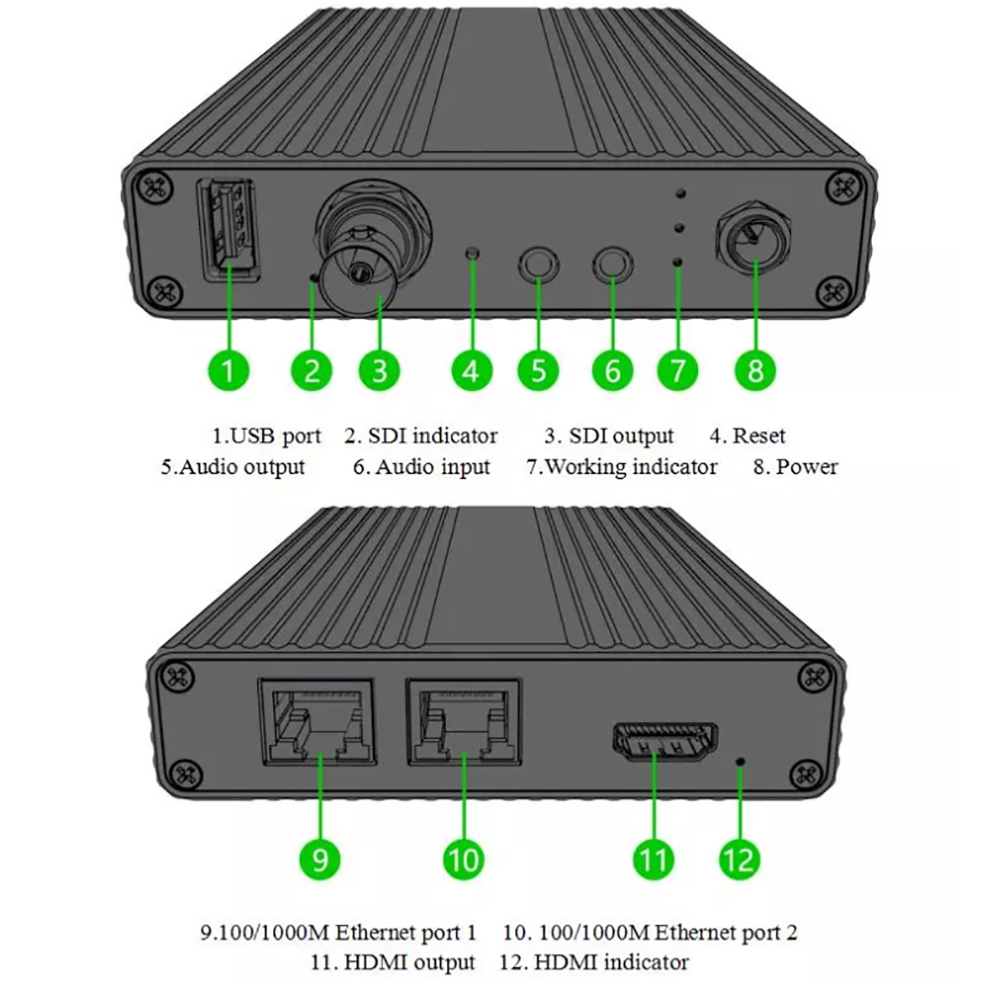

Illustration Appearance:

Applications:

Multimedia Splicing Project

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Events Streaming

Government, Education, Healthcare and Music
