Order Guide:

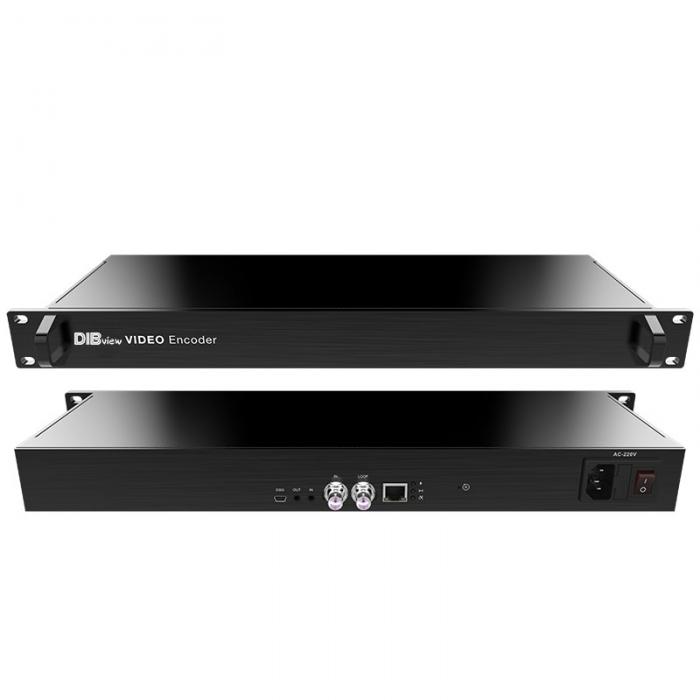

OTV-U11 Single Channel SDI To IPTV Streaming Encoder

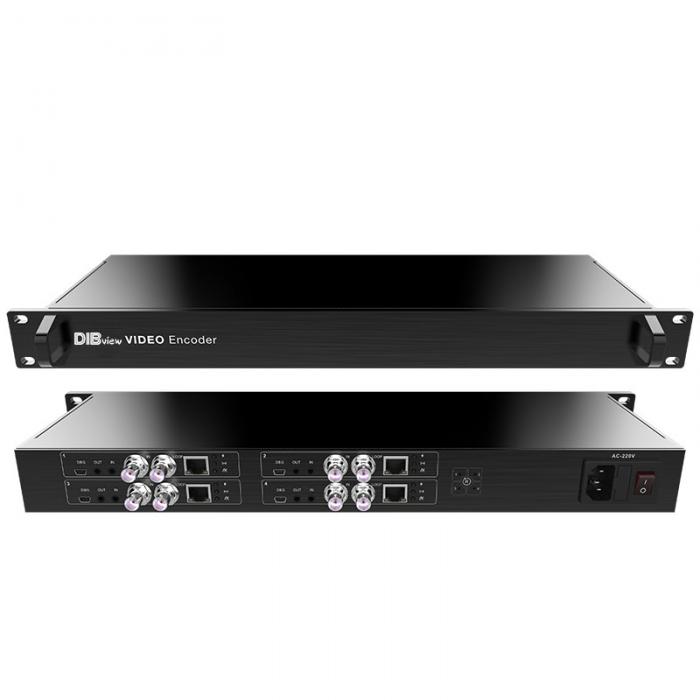

OTV-U14 Quad Channel SDI To IPTV Streaming Encoder

OTV-U21 Single Channel HDMI To IPTV Streaming Encoder

OTV-U24 Quad Channel HDMI To IPTV Streaming Encoder

Overview:

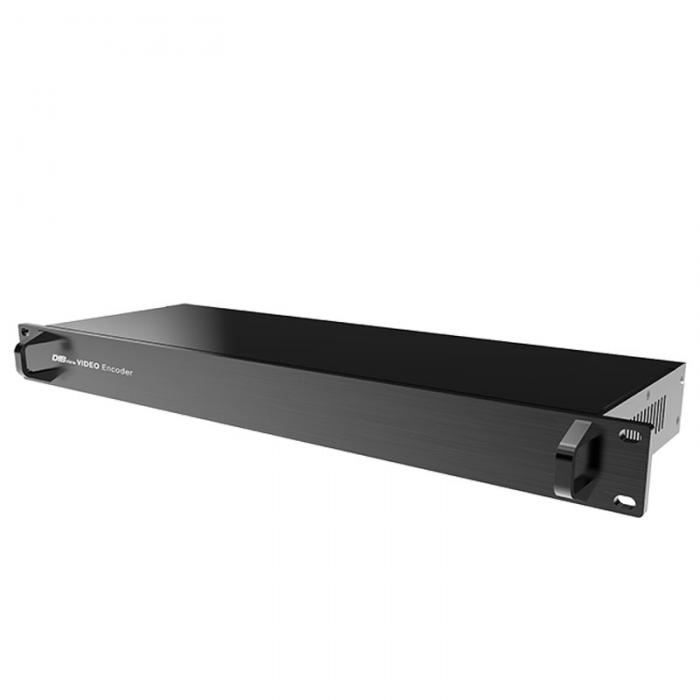

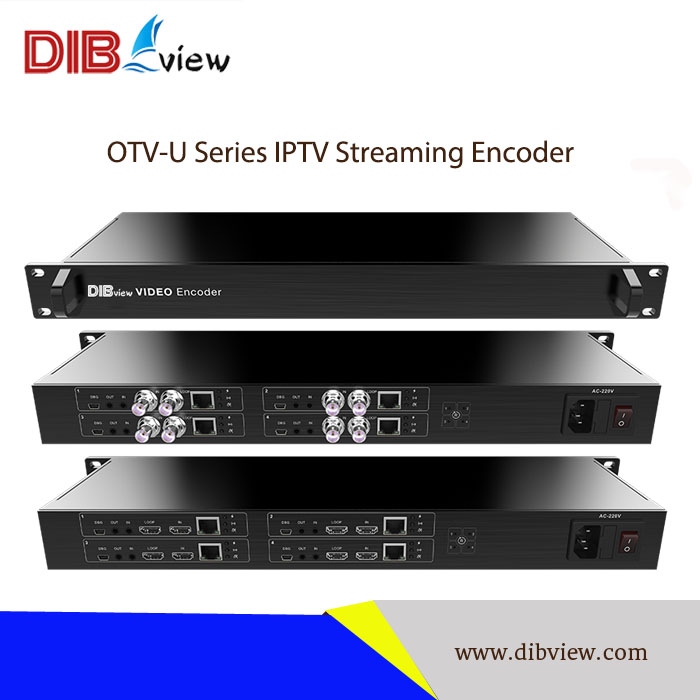

OTV-U Series Professional H.264 Video IPTV Streaming Encoder refers to an integrated single, quad or multi-channel SDI/HDMI video encoding module in a 1U/3U rack-mount frame through plug-in card. Through wired network to realize remote video & Audio transmission / live broadcasting to the media platform.

For easy management, OTV-U Series can be controlled and upgraded via web server. Its high integration and cost effective design have made it widely used in the IPTV Broadcasting system.

Key Features:

• 1-CH/4CH HDMI/SDI input

• Video Encoding support H.264/ AVC High/ Main/ Baseline profile (up to Level 5.3). Motion-JPEG.

• Dual stream output, the main code rate up to 1080P60fps resolution

• With lower encoding latency

• Support various of protocols, such as RTMP/SRT/HLS/TS over UDP/RTP/RTSP/Onvif/SIP, etc., can be customized for NDI compatible, GB/T28181 protocol

• Support all live platform, such as facebook, Youtube, Ustream and so on.

• Easy and convenient control by web.

Technical Specifications:

Application:

DTV & Professional Broadcasting Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Events Streaming

Government, Education, Healthcare and Music

Digital Signage Project

Public Security Video Monitoring

Advantage:

Highly integrated, low power consumption, stable operation.

It can integrate 3U multi-channels SDI/HDMI video encoding module, and supports up to 4-channels in 1U rack. SDI encoding module and HDMI encoding module can be integrated into the same rack for customization .

Advanced low-power consumption design (20w only for 4 channels at full load), together with built-in intelligent cooling device, it can ensure stable operation, makes 24h continuous working available.

High bandwidth adaptability, it can transmit high-definition, low-latency image without padding even under a low-bandwidth network environment.

With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission.

Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network. In the normal scene, 1Mbps@720p,1.5Mbps@1080p can get high quality video quality.

Advanced video buffering technology and FEC technology ensures video encoding delay≤67ms, and transmission stable without non-padding.

Adjustable bit rate from 64kbit/s~40Mbit/s.

Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.

Powerful streaming media service function, all types of streaming media protocol supported.

RTP/RTSP/RTMP/HLS/TS/Onvif/SIP/NDI (Customization available) and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform/NVR system.

SRT supported to ensure secure and reliable transmission.

Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding, output resolution can be self-defined.

Powerful streaming media service function, all types of streaming media protocol supported.

Open API programming, SDK provided for second development.

Customization service available based on client's needs.
