Your Location : Home >> Product Center >> DVB Multiplexer/Scrambler >> OTV-IP0101 512IP (SPTS/MPTS) to ASI IP Multiplexer

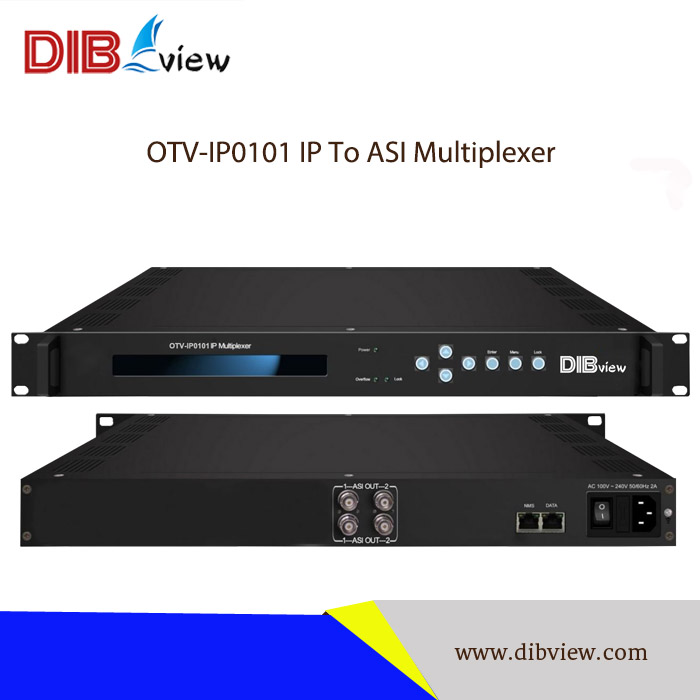

Name	OTV-IP0101 512IP (SPTS/MPTS) to ASI IP Multiplexer
Brand Name:	Dibview
Model Number:	OTV-IP0101
Product name:	IP TO ASI IP Multiplexer
Input:	512 IP (SPTS/MPTS) input over UDP
TS Output:	2 independent groups of ASI output
IP Output:	2 IP (Unitcast/Multicast), UDP Protocol
Re-multiplex:	PID re-mapping
Amount of output PID (Per channel):	2048
MOQ:	1 set for ip to asi Multiplexer

Product Description

Overview:

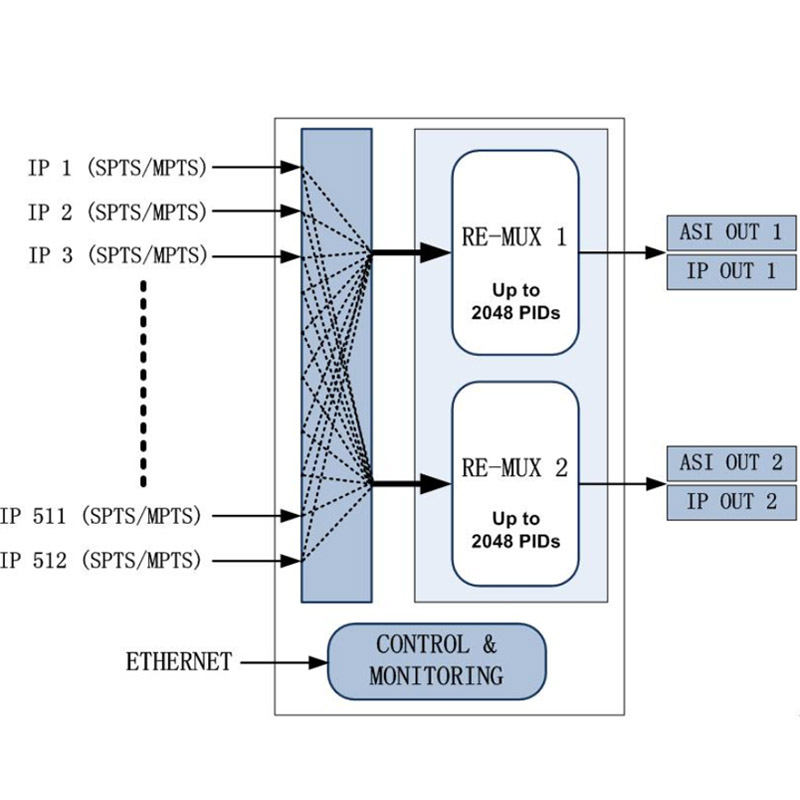

OTV-IP0101 512*IP (SPTS/MPTS) to ASI IP Multiplexer is a professional TS processor used in digital TV broadcasting head-end system. It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into 2 TS stream output with EPG (electronic program guide), CA (conditional access), data broadcasting and etc inserted.

For easy management, OTV-IP0101 can be controlled and upgraded via web server in addition to front panel keyboard. Its high integration and cost effective design have made it widely used in the Digital TV & IPTV Broadcasting system

Key Features:

Fully complying with ISO13818 and EN300 468 standard
512 IP (SPTS/MPTS) input over UDP
2 independent groups of ASI output (each group has 2 ports)
2 IP output over UDP
Support accurate PCR adjusting
Support PID passthrough, re-mapping, multiplex up to 2048 PIDs per out channel
Support PSI/SI rebuilding and editing
Huge buffer memory for saving the overflowing code stream

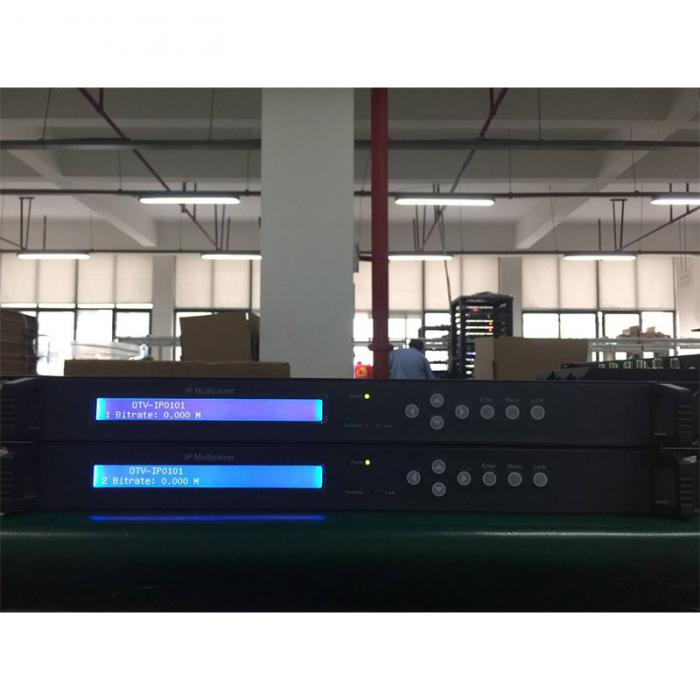

LCD/keyboard and Web-based NMS management

Technical Specifications:

Item	Description
Input
IP (RJ45,GE) : 512 x MPTS/SPTS, Unicast/Multicast, UDP Protocol, IGMP V2/V3
Re-multiplex
PID re-mapping (auto or manually available) PCR accurate adjusting Automatic generating PSI/SI table PID passthrough Support multiplex maximum 2048 PIDs each output channel

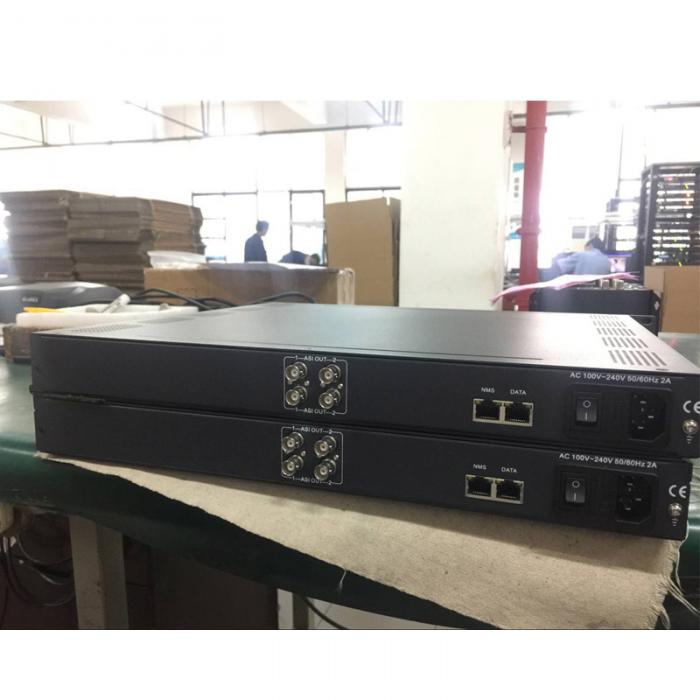

Output port
ASI	2 x independent channels of ASI output (each channel has 2 ports) (up to 210Mbps)
IP(RJ45,GE)	2 x IP (Unicast/Multicast), UDP Protocol (up to 230Mbps)
NMS Port
Ethernet port: GE
Stream Management
RJ45 Port	100/1000M GbE Port
Upgraded	Via web Interface
The Working Environment
Voltage: 110VAC±10%, 50/60Hz; 220VAC±10%, 50/60Hz Consumption: less than 25W Operating temperature: 0~45℃(operation), -20~80℃(storage) Dimensions: 482mm(W)410mm(D)44mm(H) Weight: 5.5Kg/pc
