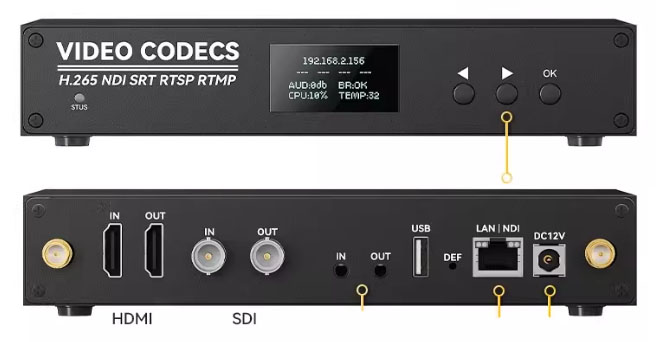

This all-in-one 4K SDI video encoder and decoder combines high performance with low latency, designed specifically for professional live streaming and production workflows. Powered by a 1.2GHz ARM Cortex A7 quad-core processor, it comes equipped with 2GB of DDR4 memory and 8GB of eMMC storage. The unit supports both input and output at 4KP30 or 1080P60 via HDMI 1.4 and 3G-SDI, with compatibility for resolutions up to 4K30 and frame rates adjustable between 1 and 60fps.

On the encoding and decoding front, it supports H.264, H.265, and MJPEG formats, incorporating SmartP and DualP technologies to achieve an end-to-end latency of just 60 to 80 milliseconds, ensuring real-time video delivery. It is compatible with a wide range of protocols including NDI, SRT, RTSP, RTMP, HTTP, HLS, and GB28181. Certified by NewTek for NDI, it offers full NDI encoding and decoding capabilities (with a 30-minute free trial available without a license) and integrates seamlessly with platforms such as vMix and OBS for secondary editing and multi-platform streaming.

Connectivity options include wired Ethernet (10/100M), Wi-Fi 6/5, and 4G/5G cellular networking, allowing connection to a variety of peripherals such as TV boxes, cameras, and gaming consoles, with HDCP support included. Additional features include on-device visual effects like watermarks and subtitles, image optimization, multi-screen mixing, mobile app-based remote control, and flexible audio encoding with AAC and MP3 support at sampling rates ranging from 8kHz to 48kHz. With low power consumption under 15W and a wide operating temperature range of 0 to 70°C, this device is well-suited for broadcast, live events, and mobile production environments.
