Introduction

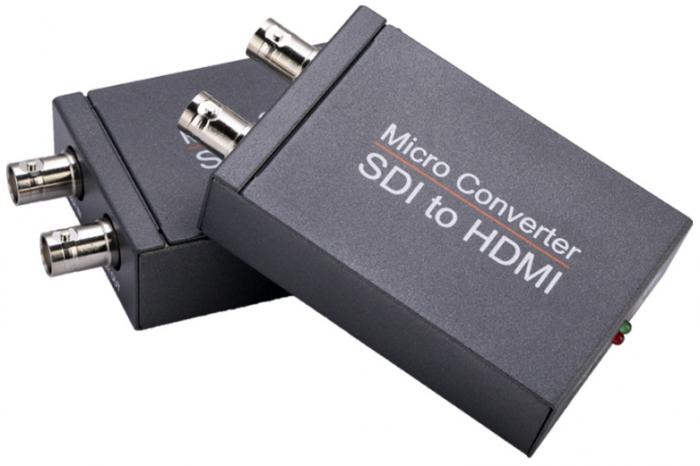

The SDI to HDMI converter allows HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

   Features

1. Operation at 2.970Gbit/s, 1.485Gbit/s

2. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C

3. Connect with other units to extend your signal over long distances

   Package

1.   Mirco SDI to HDMI Converter---------------------------1PCS

2.   USB Power Supply Adaptor------------------------------1PCS

3.   Operation Manual ---------------------------------------1PCS

Specificaitons

Input Port: 1 x BNC (HD-SDI/3G-SDI)

Output Port: 1 x HDMI

SDI Transmission Rates: 2.970 Gbit/s

In/Output Resolution: 720p1080i1080p

Power Supply: DC 5V

ESD Protection Human body model: ±8kV (air-gap discharge) ,

                          ±4kV (contact discharge)

Dimension: 97mm x 55mm x 23mm

Weight: 130g

Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

elative Humidity: 20 ~ 90% RH (Non-condensing)

Power Consumption (Max): 5W
