Your Location : Home >> Product Center >> DVB IPTV Transcoder >> OTV-HT1 H.265 H.264 ProVideo Streaming IPTV Transcoder

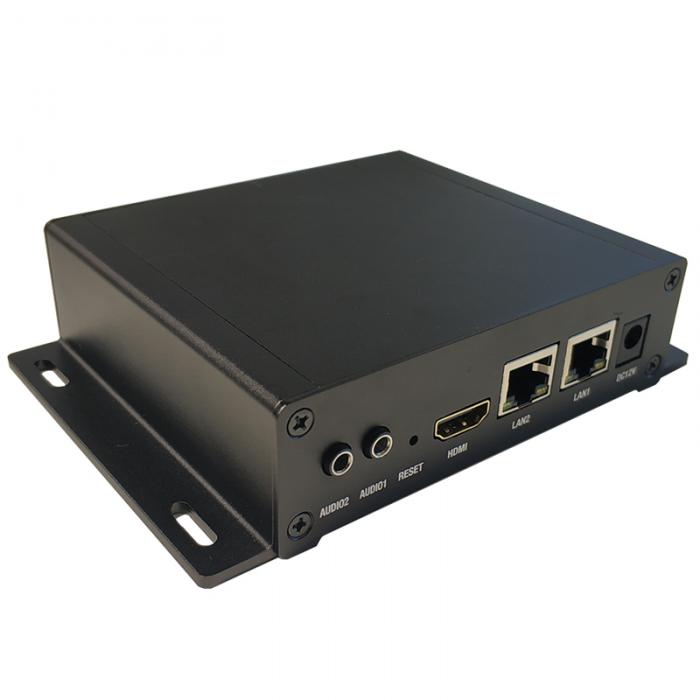

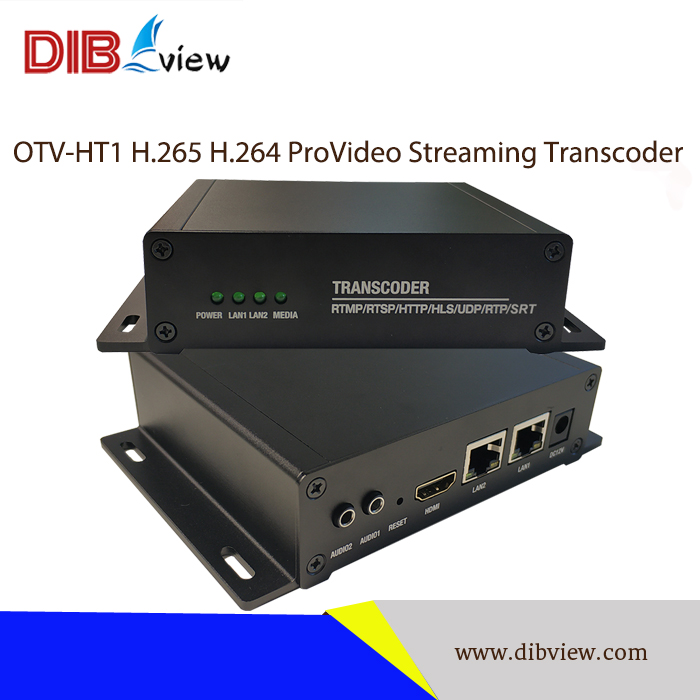

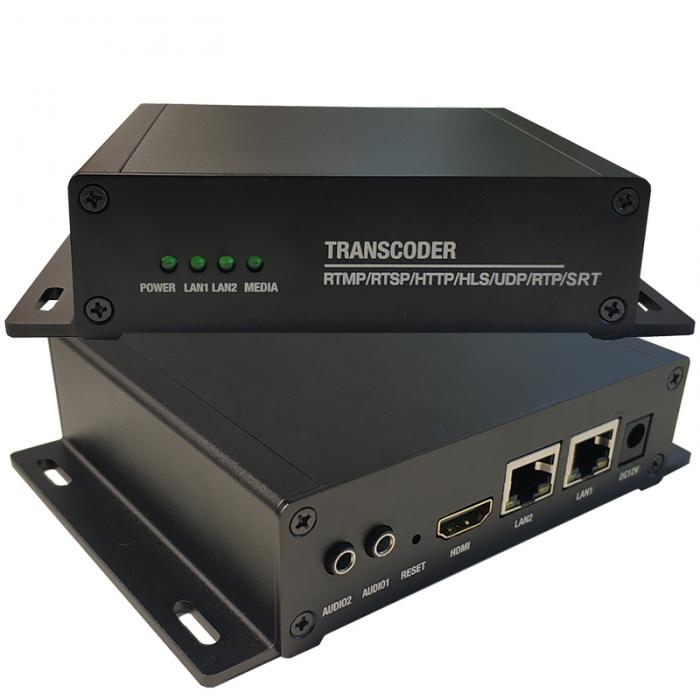

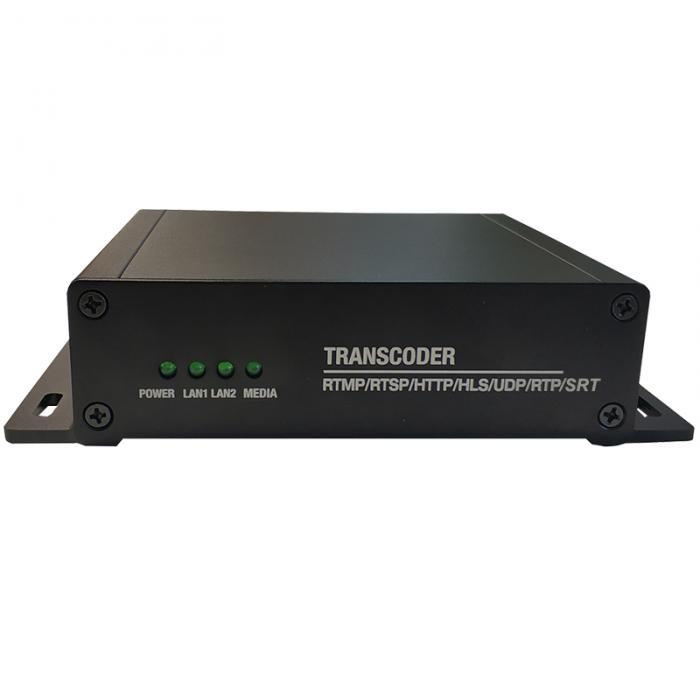

Name	OTV-HT1 H.265 H.264 ProVideo Streaming IPTV Transcoder
Brand Name:	Dibview
Model Number:	OTV-HT1
Product name:	OTV-HT1 H.265 H.264 ProVideo Streaming IPTV Transcoder
Input:	8Network streaming+8built-in audio
Output:	IP HLS/RTMP/UDP/RTP/HTTP
Audio Input:	8-Channels built-in audio
Video Encoding:	H.264 & H.265
Audio format:	MP3, MP2, AAC, AC3
CBR VBR:	Yes, support
Application:	Internet TV Broadcast

Product Description

Overview:

OTV-HT1 is a new generation HD H.265 HEVC H.264 Video Streaming Transcoder which adopts state-of-the-art transcoding technology of H.265 HEVC, H.264 Mpeg4, supporting RTSP/RTMP/UDP/HLS/HTTP/FLV/SRT(currently no support SRT) protocol 8-channel network streaming IP input, with 8 channels built-in audio, 2-Channels of external audio reserved, 1-Channel HDMI output reserved, and meantime support IP stream output RTSP,RTMP, HTTP, HLS,UDP unicast, multicast and other protocols.

With embedded operating system, OTV-HT1 HD H.265 HEVC H.264 Video Streaming Transcoder possesses the features of stability, reliability, powerful function, network agility, develop malleability, which makes it a new generation HD network media terminal. It’s Low Power Consumption physical design, with decoding in compact size, benefit customers for more flexible to use, and avoid the trouble of gathering multiple devices.

Key Features:

Input 8*network streaming+8*built-in audio
Input/output streams support to work under HTTP/HLS/RTSP/RTP/RTMP, HTTP/UDP unicast, multicast, etc. (Username and password verification are allowed under RTMP)
Low bit-rate by H.265 with high quality image
Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC)
Support transcoding function, change IP input/output, protocol, compression format (H264 to H265, H265 to H264), resolution, etc.
Audio format: MP3, MP2, AAC, AC3; sampling rate: 44.1Khz, 48KHz.
Transport method: TCP,UDP,1000M (RJ45 duplex interface)
Web-based management easy for configuration.
Scrollable English OSD, picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the screen
Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance
Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
The setting comes into effect once finished while reboot is unnecessary
Default configuration can be done by one key recovery

Technical Specifications:

Item	Description
Streaming Input
Video Input: 8-Channel network streaming Audio Input: 8-Channels built-in audio, 2-Channels of external audio reserved.
Video Transcoding
Encoding: H.264/H.265 optional Encoding frame rate: 5-60fps adjustable Key frame interval (frame): 5-300 adjustable Bit rate (kbit): 32-32000 adjustable The resolution after coded: 1920x1080/1680x1056/1280x720/1024x576/850x480/ 720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/ 480x384/480x360/480x320/480x272/480x270/400x320/400x352x480/ 352x228/320x256/320x240/320x180/240x180/176x144/same as the input resolution H.264 level: baseline profile/main profile/high profile Stream control: CBR/VBR optional Stream protocol: Support RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast
Audio Transcoding
Encoding sampling rate: 44100/48000 optional Coding type: AAC /AAC+/AAC++/MP3/MP2/AC3 optional Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable/ AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/ MP2: 64000-320000 adjustable/ AC3: 40000-640000 adjustable Digital volume: -50~50 adjustable RTSP stream uses G711A encoding: Disable/enable optional
OSD
Transparency: 0-128 adjustable Type: Text/Picture/Scrolling Text/Time Area: 4 areas available for optional X coordinate: 0-1920 Y coordinate: 0-1080 LOGO: user can upload 4 LOGO for selection Font size: 8-72 Background color: transparent/white/black Font color: RGB color optional
Management
Configuration Interface: web-based UI
Connector: RJ45 duplex interface 100/1000M
Support ONVIF to find and browse videos
The Working Environment
Power consumption	5W
Dimension	155(L)93(W)32(H)mm
Operating Temperature	-20 to 60 (For working), -20 to 80(For storing)
Input Voltage	12V/DC 2A
