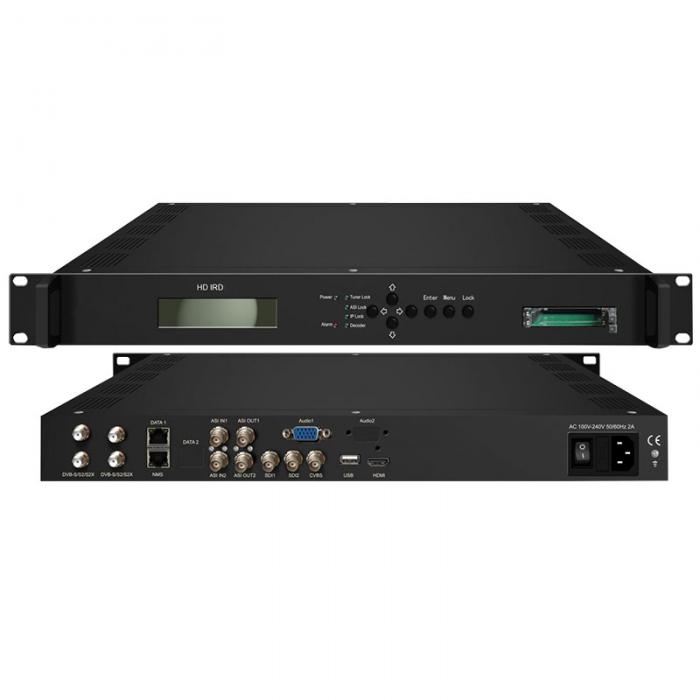

NameOTV-75B H.265 Professional HD IRD
Brand Name:Dibview
Model Number:OTV-75B
Product name:H.265 Professional HD IRD
Input 1:2 Tuner
Input 2:ASI +IP
Output 1:IP (1MPTS & 8SPTS)+ASI
Output 2:CVBS/HDMI/SDI
BISS descrambling:Yes, support
Video Decoding:MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 decoding
CC:Supported
Application:DTV Headend Systems

Product Description

Order Guide :

OTV-75B:

Audio output: 1* Stereo

Support: Mini LED Screen for Monitoring

OTV-75C

Audio output: 2* Stereo

No Support Mini LED Screen for Monitoring

Overview:


OTV-75B H.265 Professional HD IRD is DIBVIEW's new design device. It can receive signals from tuners (DVB-C, DVB-T/T2, DVB-S/S2/S2X, ATSC-T, ISDBT optional). After demodulating, de-scrambling, re-multiplexing and decoding, it gives content out through various video/audio interfaces. Its video/audio outputs support HDMI, CVBS, SDI, BNC, XLR interface and SPDIF.



The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted Tuner, ASI and IP.



Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.



To meet customers' various requirements, OTV-75B H.265 Professional HD IRD is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port..


Key Features:


  • Demodulator+descrambler+re-mux+decoder modules in one box

  • 2 Tuner (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDBT optional ) input

  • 1 ASI & 1 IP (UDP) input for re-mux

  • Each CAM can decrypt multiple programs from Tuner/ASI/IP

  • BISS descrambling (Up to 120Mbps)

  • Support 4:2:0 HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 decoding

  • Support MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital Plus decoding and AC3 passthrough

  • One Stereo audio (OTV-75B) or two Stereo audio (OTV-75C SDI interface) out

  • IP (1 MPTS & 8 SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out

  • Support CC (EIA608, EIA708) & Teletext (Only for SDI)

  • Support maximum 128 PID mapping per input

  • Pluggable and changeable design

  • LCD/Keyboard and web-based NMS management


Technical Specifications:

Item

Description

Input

2 *Tuner, F type

1*ASI input for re-mux, BNC interface

1*IP input for re-mux (UDP)

Multi-mode tuners switchable (New)

DVB-C Input Frequency: 60~890 MHz

DVB-C Standard & Constellation:

J.83A, J.83C (16/32/64/128/256 QAM)

J.83B (64/256 QAM)

DVB-T/T2 Input Frequency: 60~890 MHz

DVB-T/T2 Input Bandwidth: 6/7/8 M

ISDB-T Input Frequency: 60~890 MHz

Tuner input Version 1

DVB-S

Input Frequency: 950~2150MHz

Symbol rate: 1~45 Msps

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

Constellation: QPSK

Signal Strength: - 65~-25dBm

Max input bitrate: ≤120 Mbps



DVB-S2

Input Frequency: 950~2150MHz

Symbol rate: 1~45 Msps

FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation: QPSK, 8PSK

Max input bitrate: ≤120 Mbps

Tuner input Version 2 (New)

DVB-S

Input Frequency: 950~2150MHz

Symbol rate: 0.5~45 Msps

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

Constellation: QPSK

Signal Strength: - 65~-25dBm

Max input bitrate: ≤160 Mbps



DVB-S2

Input Frequency: 950~2150MHz

Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps

32APSK: 0.5~40Msps

FEC: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Constellation: QPSK, 8PSK,16APSK, 32APSK

Max input bitrate: ≤160 Mbps



DVB-S2X

Input Frequency: 950~2150MHz

Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps

8APSK/32APSK: 0.5~40Msps

FEC: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L,

26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6,   8/9, 2/3-L, 32/45, 11/15, 7/9

Constellation:QPSK/8PSK/8APSK/16APSK/32APSK

Max input bitrate: ≤160 Mbps



ATSC-T

Input Frequency: 54~858MHz

Bandwidth: 6M

Constellation: 8VSB

Descrambling

CAM/CI Qty: 2

BISS Mode: Mode 1, Mode E (up to 120Mbps)

Output

IP (1*MPTS & 8*SPTS) out over UDP, RTP/RTSP.

100Base-T Ethernet interface (unicast/multicast)

2×ASI mirrored out, BNC interface

Decode Output Video

Interface: CVBS/HDMI/SDI

Number of channels: 1

Decode: 4:2:0 MPEG-2, MPEG4 AVC/H.264 and HEVC/ H.265

Resolution:1920×1080_60p,1920×1080_60i,1920×1080_50p,1920×1080_50i,

1280×720_60P, 1280×720_50P; 480i, 576i

Decode Output Audio

Interface: HDMI, SDI, SPDIF, BNC, XLR, AES

Number of channels: 1 or 2 for option

Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/ Dolby Digital Plus

Audio Output Mode: Left, Right, Stereo

Stereo audio*1 (OTV-75B)

Stereo audio*2 (OTV-75C SDI only)

Management

Local interface: LCD + control buttons

Remote management: Web-server Management

Language: English

Upgrade: USB, web management

The Working Environment

Dimension

(WxLxH) 482mm×300mm×45mm

Gross Weight

3.9KG

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

AC 100V-220V±10%, 50/60Hz

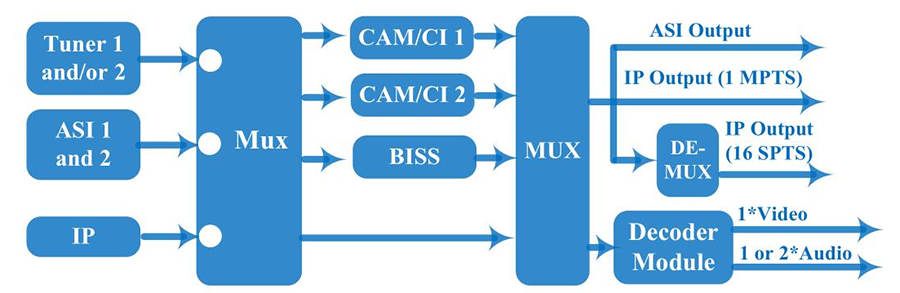

Key Diagram:
