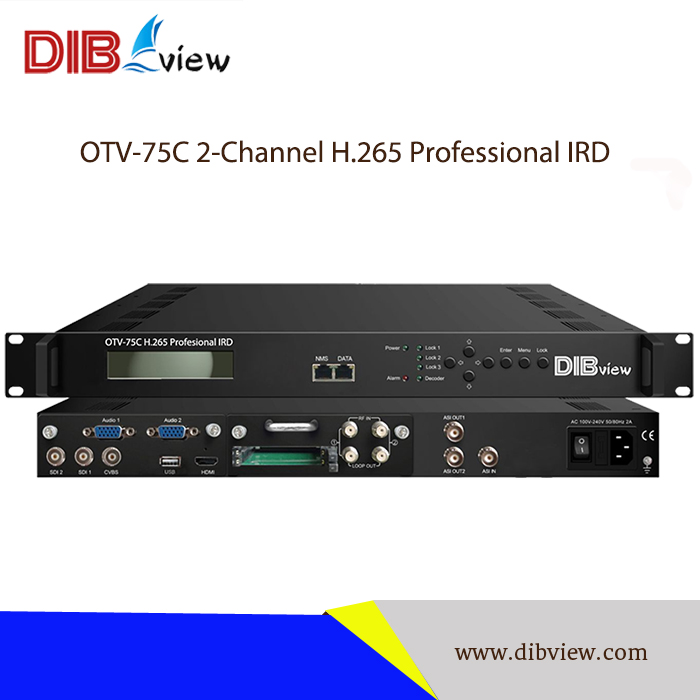

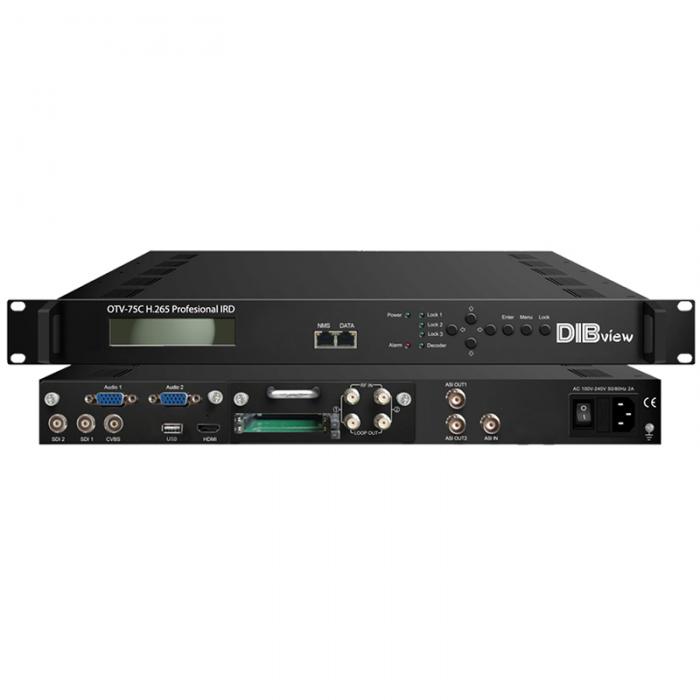

| Name | OTV-75C H.265 Professional HD IRD (Old Version) |
| Brand Name: | Dibview |
| Model Number: | OTV-75C |
| Product name: | H.265 Professional HD IRD |
| Input 1: | 2 Tuner |
| Input 2: | ASI +IP |
| Output 1: | IP (1MPTS & 8SPTS)+ASI |
| Output 2: | CVBS/HDMI/SDI |
| BISS descrambling: | Yes, support |
| Video Decoding: | MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 decoding |
| CC: | Supported |
| Application: | DTV Headend Systems |
Product Description
Order Guide :
OTV-75B:
Audio output: 1* Stereo
Support: Mini LED Screen for Monitoring
OTV-75C
Audio output: 2* Stereo
No Support Mini LED Screen for Monitoring
Overview:
OTV-75C H.265 Professional HD IRD is DIBVIEW's new design device. It can receive signals from tuners (DVB-C, DVB-T/T2, DVB-S/S2/S2X, ATSC-T, ISDBT optional). After demodulating, de-scrambling, re-multiplexing and decoding, it gives content out through various video/audio interfaces. Its video/audio outputs support HDMI, CVBS, SDI, BNC, XLR interface and SPDIF.
The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted Tuner, ASI and IP.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers' various requirements, OTV-75C H.265 Professional HD IRD is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port..
Key Features:
Demodulator+descrambler+re-mux+decoder modules in one box
2 Tuner (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDBT optional ) input
1 ASI & 1 IP (UDP) input for re-mux
Each CAM can decrypt multiple programs from Tuner/ASI/IP
BISS descrambling (Up to 120Mbps)
Support 4:2:0 HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 decoding
Support MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital Plus decoding and AC3 passthrough
One Stereo audio (OTV-75B) or two Stereo audio (OTV-75C SDI interface) out
IP (1 MPTS & 8 SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out
Support CC (EIA608, EIA708) & Teletext (Only for SDI)
Support maximum 128 PID mapping per input
Pluggable and changeable design
LCD/Keyboard and web-based NMS management
Technical Specifications:
Item | Description |
Input | |
2 *Tuner, F type 1*ASI input for re-mux, BNC interface 1*IP input for re-mux (UDP) | |
Multi-mode tuners switchable (New) | |
DVB-C Input Frequency: 60~890 MHz DVB-C Standard & Constellation: J.83A, J.83C (16/32/64/128/256 QAM) J.83B (64/256 QAM) | |
DVB-T/T2 Input Frequency: 60~890 MHz DVB-T/T2 Input Bandwidth: 6/7/8 M | |
ISDB-T Input Frequency: 60~890 MHz | |
Tuner input Version 1 | |
DVB-S Input Frequency: 950~2150MHz Symbol rate: 1~45 Msps FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Constellation: QPSK Signal Strength: - 65~-25dBm Max input bitrate: ≤120 Mbps
DVB-S2 Input Frequency: 950~2150MHz Symbol rate: 1~45 Msps FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK Max input bitrate: ≤120 Mbps | |
Tuner input Version 2 (New) | |
DVB-S Input Frequency: 950~2150MHz Symbol rate: 0.5~45 Msps FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Constellation: QPSK Signal Strength: - 65~-25dBm Max input bitrate: ≤160 Mbps
DVB-S2 Input Frequency: 950~2150MHz Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps 32APSK: 0.5~40Msps FEC: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK,16APSK, 32APSK Max input bitrate: ≤160 Mbps
DVB-S2X Input Frequency: 950~2150MHz Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps 8APSK/32APSK: 0.5~40Msps FEC: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 Constellation:QPSK/8PSK/8APSK/16APSK/32APSK Max input bitrate: ≤160 Mbps
ATSC-T Input Frequency: 54~858MHz Bandwidth: 6M Constellation: 8VSB | |
Descrambling | |
CAM/CI Qty: 2 BISS Mode: Mode 1, Mode E (up to 120Mbps) | |
Output | |
IP (1*MPTS & 8*SPTS) out over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast/multicast) 2×ASI mirrored out, BNC interface Decode Output Video Interface: CVBS/HDMI/SDI Number of channels: 1 Decode: 4:2:0 MPEG-2, MPEG4 AVC/H.264 and HEVC/ H.265 Resolution:1920×1080_60p,1920×1080_60i,1920×1080_50p,1920×1080_50i, 1280×720_60P, 1280×720_50P; 480i, 576i Decode Output Audio Interface: HDMI, SDI, SPDIF, BNC, XLR, AES Number of channels: 1 or 2 for option Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/ Dolby Digital Plus Audio Output Mode: Left, Right, Stereo Stereo audio*1 (OTV-75B) Stereo audio*2 (OTV-75C SDI only) | |
Management | |
Local interface: LCD + control buttons Remote management: Web-server Management Language: English Upgrade: USB, web management | |
The Working Environment | |
Dimension | (WxLxH) 482mm×300mm×45mm |
Gross Weight | 3.9KG |
Temperature | 0 to 45(For working), -20 to 80(For storing) |
Input Voltage | AC 100V-220V±10%, 50/60Hz |

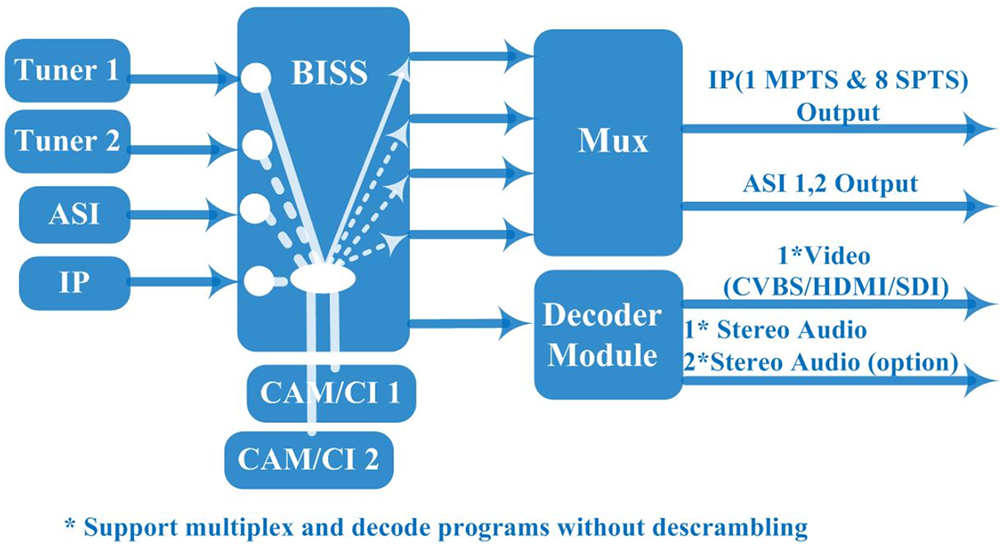

Key Diagram:
Kindly Note: (Old Version, Stopped Production)
