Your Location : Home >> Product Center >> DVB Multiplexer/Scrambler >> OTV-IPM51 IP TO ASI Multiplexer Digital broadcasting catv multiplexer Scrambler

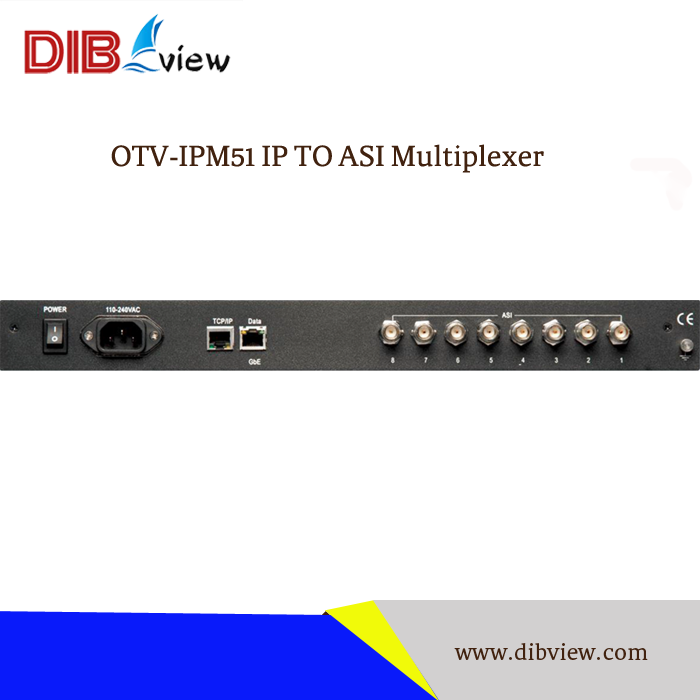

Name	OTV-IPM51 IP TO ASI Multiplexer Digital broadcasting catv multiplexer Scrambler
Brand Name:	Dibview
Model Number:	OTV-IPM51
Input Signal:	800Mbps GbE IP RJ45, 250IP(SPTS or MPTS) inputs
Output signal:	8xASI 100Mbps
Scrambler:	Option up to 4 cas
TS process:	Multiplexing

Product Description

Overview:

OTV-IPM51 IP to ASI Multiplexer is a professional Transport Stream processor and new generation IP Multiplexer used in digital TV broadcasting and IPTV head-end system. OTV-IPM51 Performs the adaptation of interfaces between Gigabit Ethernet and ASI, and then multiplex the MPEG transport streams before sending to local head-end system.

OTV-IPM51 receives 250*IP (SPTS/MPTS)/GigE channels and multiplex & de-multiplex the input programs into 8 TS stream output(MPTS/STPS). For easy management, it can be controlled and upgraded via web server in addition to front panel keyboard. This flexibility and versatility enables operators to reduce total cost of ownership.

OTV-IPM51 can be widely applied to central head-end and remote head-end system in CATV, DTT and SATV networks.

Key Features:

Support ASI each channel 1.5-100Mbps
250*IP(SPTS orMPTS) inputs
8 independent ASI output
Supports up to 4*DVB SimulCrypt CAS
Real-time statistics and analysis of program bit rates
Support UDP, RTP, ARP, ICMP, IGMP protocol etc.
Auto-generation of Network information.
Up to 250 re-multiplexing channels.
Support accurate PCR auto-correction
Support PID pass-through, re-mapping, filtering.
Supports various customizable PSI/SI table extraction and manual insertion
Huge buffer memory for saving the overflowing code stream

Technical Specifications:

Item	Description
Stream Input
IP Input	1xIP(RJ45, GigE)
250 MPTS/SPTS, Unitcast/Multicast, RTP/UDP, ARP, ICMP, IGMP Protocol
Re-multiplex
PID re-mapping (auto or manually available)
PCR accurate adjusting Automatic generating PSI/SI table
PID Passthrough
Stream Output
8 x independent channels of ASI output, BNC interface.
MPTS/SPTS from IP inputs.
Management
LCD/keyboard, Web-based and SNMP management, remote upgrading
Power off memory, saving the settings for auto-loading after reboot
The Working Environment
Warranty	3 years with free telephone support
Power Supply	AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz
Power consumption	25W
Operation temperature	0 -50°C
Storage temperature	-20-80°C
Dimensions	482mm x 456mm x 44mm
Weight	4.5Kg
