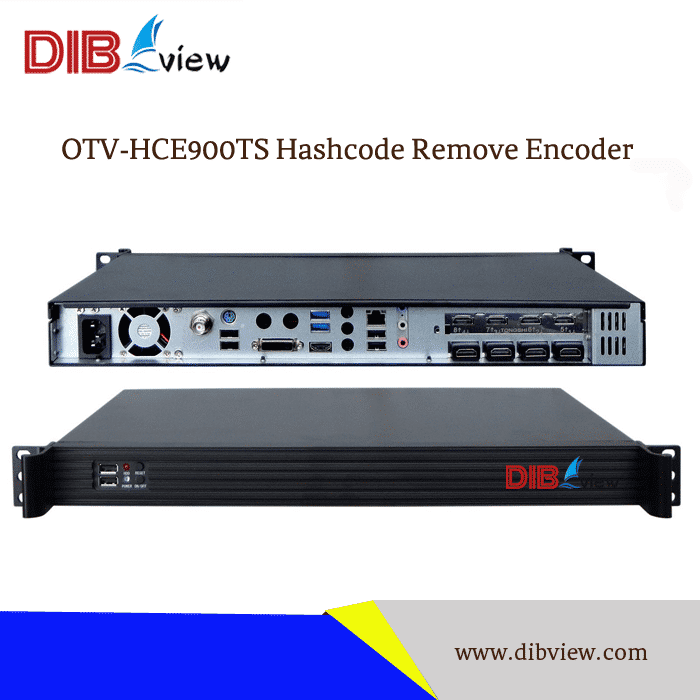

NameOTV-HCE900TS IPTV Encoder Server ( IP & ASI Out ) Hotel TV System 8 HDMI to ASI IP Streamer Hashcode Remove Encoder
Brand Name:Dibview
Model Number:OTV-HCE900TS
Application:IPTV HR100 hashcode hashcode remove encoder
Input:8HDMI Input
Output:IP & ASI
Video Encoding:H.264
Protocols:RTMP/UDP/RTP

Product Description

Overview:

HR100 hashcode Encoder, HR100 Encoder, Hashcode HR100, HR100 converter, HR100 Device, HR100 IPTV, HDMI HR100, HR100 remove hashcode encoder, HR100 hash code Encoder.

OTV-HCE900TS Eight-Channel HD HDMI Encoder highly integrated hardware and software. With 8 channels HDMI input, by real-time H.264 encoding, output RTMP/HTTP/RTP/UDP Standard TS & ASI for DVB-C/DVB-T/DVB-S/S2 system.


OTV-HCE900TS is convenience for you to send streaming to IPTV Media Streaming Server, such as wowza, Xtream Codes, or DVB modulators.


OTV-HCE900TS by compare with 2 STBs' HDMI input signals, automatically detect & hide the different video contents, such as the hashcode/video logo/watermark, etc.. (2 HDMI input, 1 stream output) *1, Two STBs' output HDMI must be same channels (programs), and STB need to be same brand, same settings.


OTV-HCE900TS only support output 4 hashcodes remove streams when do compare for hiding watermark. TS8100HD encoder



OTV-HCE900TS will greatly save the network traffic, electricity and space utilization rate, improve the live operator front-end equipment reliability, reduce operating costs and entry barriers


Key Features:


  • 8 channel HDMI capture, real-time HD encoding

  • Add/Remove water-mark dynamically 4 channel simultaneously from 8 channels

  • Providing Multiple Protocol RTMP/UDP/HTTP/RTP

  • Support 1280*720P@50/60, 1080i@50/60 resolution input, output ASI &RJ45 100/1000Mbps

  • Support multiple equipments display at the same time on a computer

  • 1U chassis , low power consumption, less than 70W

  • Greatly save on network traffic, electricity and space usage


our TS8100HD Hashcode hash code encoder, support asi out

Technical Specifications:


Item

Description

Basic Parameters

Input Interface

8 x HDMI

Output

ASI & RJ45 100/1000Mbps

HD format

1280x720p@50/60, 1080i@50/60

Protocol

RTMP/UDP/HTTP/RTP

AC in

110/220

AC rate

50/60Hz

Power consumption

Less than 70W

OS

Cent OS

Size

1U chassis

Weight

4.5kg

HDMI Input & The suggestion streaming quality as below

HDMI Input

Stream Quality

Stream Resolution

1080i@50/60

Super

1920*1080P@25/30

Ultra

1440*1080P@25/30

720P@50/60

Excellent

1280*720P@25/30  50/60

Good

1120*630P@25/30  50/60

Fair

960*540P@525/30  50/60

Poor

800*468P@25/30 50/60

Mobile

480*270P@25/30 50/60





Basic Functions:







Field Of Application & Details:

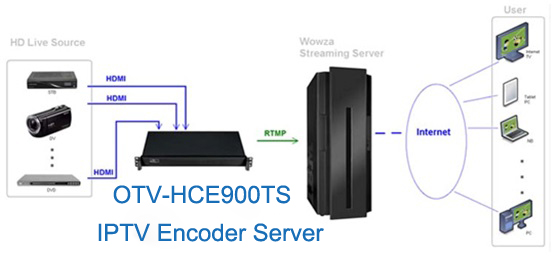

IPTV Encoder Server Apllication.jpg
