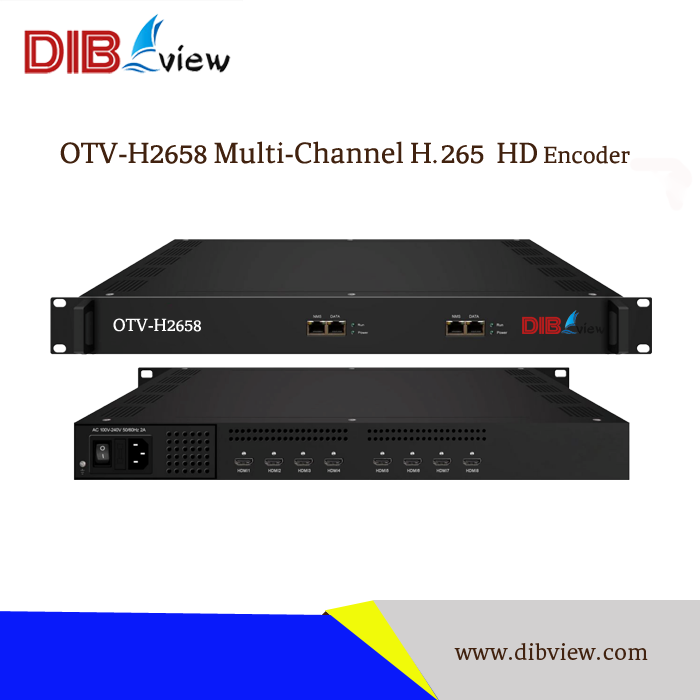

NameOTV-H2658 H.265 HEVC 8 In 1 HD Encoder with ASI out fujitsu chipset
Brand:Dibview
Model:OTV-H2658
Product Name:H.265 HD Encoder
Encoding:H.265/HEVC, MPEG-4 AVC/H.264
Input:4/8/12 HDMI Input
Support:1080P 60fps
CBR video bitrate mode:Yes, support
IP Output:1/2/3 MPTS & 4/8 SPTS over UDP and RTP
Output ASI:Sure support

Product Description

Overview:


OTV-H2658 H.265 HEVC 8 In 1 HD Encoder is a professional HD audio & video encoding and multiplexing device. It has HDMI Channels (4/8/12 HDMI optional) video input interfaces, supporting H.265 video encoding and MPEG 1 Layer 2 audio encoding.



OTV-H2658 HD Encoder can simultaneously encode (4/8/12 HDMI optional) channel HD audio & video; moreover, it has an IP output port can support 1MPTS and (4/8/12 SPTS) IP out.



In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.


Key Features:


  • Support 4/8/12 HDMI 1.4 input, HDCP 1.4

  • Support H.265/HEVC and H.264/AVC video encoding

  • Support up to 1080P 60Hz input

  • Support CBR video bitrate mode

  • Support MPEG1 Layer 2 audio encoding

  • Support IP Output 1/2/3 MPTS & 4/8 SPTS over UDP and RTP; IP null packet filter

  • Real-time output bit-rate monitoring


Technical Specifications:


Item

Description

Input

4/8/12HDMI inputs ( 4/8/12 input for optional)

Video Resolution

Input

1920×1080_60P, 1920×1080_59.94P

1920×1080_50P, 1920×1080_30P

1280×720_60P, 1280×720_59.94P

1280×720_50P, 1280×720_30P

Encoding

H.265/HEVC, MPEG-4 AVC/H.264

Bit-rate

0.5Mbps~15Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IBBP (low bitrate) IPPP

Audio Encoding

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

48kbps~384kbps each channel

Audio Gain

0~255

Stream Output

1/2/3 MPTS and 4/8/12 SPTS output over UDP/RTP, 1000M/100M Base-T Ethernet   interface (unicast/ multicast)

IP null packet filter

System Function

Network management(WEB)

Chinese and English language

Ethernet software upgrade

The Working Environment

Warranty

3 years with free telephone support

Power Supply

AC 100V-220V±10%,   50/60Hz

Power consumption

75W

Operation temperature

-10 -50°C

Storage temperature

-20-80°C

Dimensions

482mm x 328mm x 45mm

Weight

4.1Kg

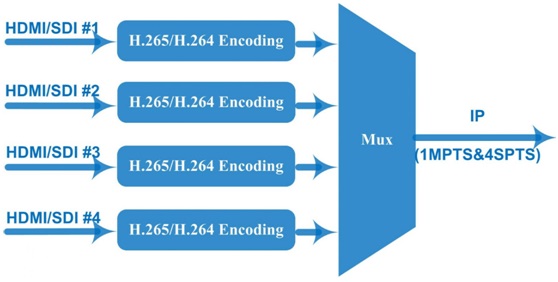

Key Diagram:


Encoder HEVC.jpg



H.265 Advantage:


1. High Compression Ratio:



TS (1080P)

Video Bitrate

1M

1.5M

2M

Audio Bitrate

128kbps

128kbps

128kbps

PAT, PMT, SDT, table

640kbps

691kbps

896kbps

Total Bitrate

1.75M

2.3M

3M



2. Save Frequency:



Video Format

Mpeg-4 HD

H.265 HD

Bitrate

8M

3M~4M

Program No.

2

5~7



3. High Quality Picture:




1 Set SD Program

1 Set HD Program

Video format

H.264

H.265

Bitrate

3M/4M

3M/4M
