NameOTV-IPMC ASI/IP to ISDB-T RF modulator
Brand Name:Dibview
Model Number:OTV-IPMC

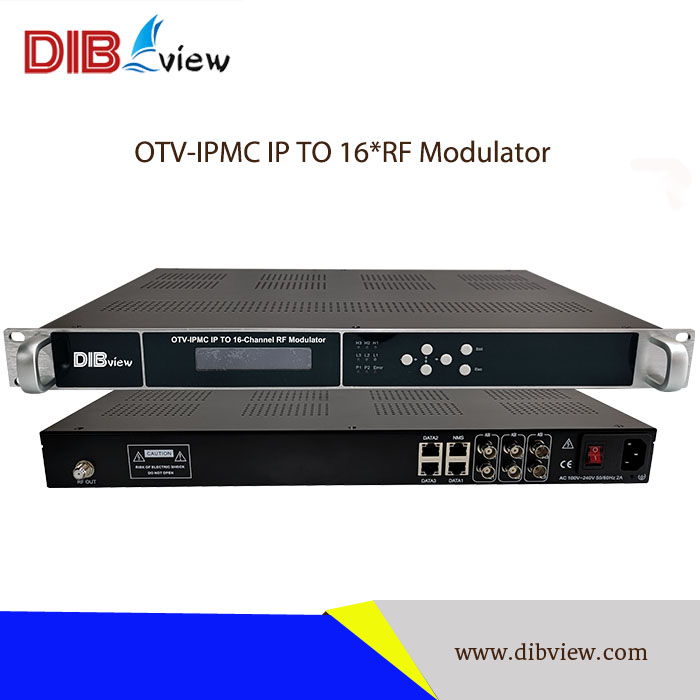

Product name:IP to RF ISDB-Tb modulator
Input 1:3port 128 IP
Output 1:8 MPTS Output
Input 2:6ASI
Output 2:16 RF ISDB-T
Output 3 (optional):32 DVB-C
Yes, correct:32 in 1 IP QAM Modulator
Support:PCR adjusting
Application:DTV and IPTV Project

Product Description

Overview:

OTV-IPMC ASI/IP to RF modulator, with ASI input and output, optional modulation (DVB-C, DVB-T, ATSC, ISDB-T/Tb, DTMB) to convert Video/Audio signals into RF over exist Coax Cable distribution. It provides a best-of-class modulator platform for Digital TV Owners and IPTV operators.



The platform can change the modulation signal by software upgrade, this flexible operation can help to reduce the cost in the operation of the project. OTV-IPMC supports modulation channel independent multiplexing, with DVB-T, ISDB-T/Tb, DVB-C, ATSC-T, DTMB modulation output, and each module can output different modulation signals.



By using PSI/SI technology, inserting NIT information table in WEB, ASI/IP to RF modulator series increased compatibility with terminal products in cable TV application.

This is an ideal solution used largely to Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or IP Source signals convert to Cable TV broadcast environments.


Key Features:

  • Input: 3 *Date(1,2,3)UDP/IP port .each data port support 128*IP(SPTS/MPTS)

  • 6*ASI in

  • output 16*RF DVB-T/ATSC/ISDB-T/DTMB or 32 DVB-C for option, 1 IP(8*MPTS/SPTS) from date1 output

  • Front panel : L1/L2/L3/H1/H2/H3 indicator light for 6*ASIinput

  • NMS port for management

  • PID Remapping & Filtering

  • PSI/SI editing & inserting

  • Low cost solution for Hotel TV System

  • Support PCR correct and PCR interval adjusting

  • Superior Shoulders and Excellent modulation, quality MER

  • Low power consumption, high reliability with MTBF(Mean Time Between Failure)≦87600 Hours

  • Easy-to-Use System Management via Web

  • Support:(LCN Logical Channel Number)


Technical Specifications:

Item

Description

ISDB-T Modulation

Modulation:

Standard: ARIB STD-B31

FFT mode: 2K,4K,8K

Bandwidth: 6M

Constellation: QPSK, 16QAM, 64QAM

RF out: 16 Channels ISDBT

RF frequency: 96~864MHz, 1kHz step

RF output level: -35dBm~-5dBm

MER:≥40db

Guard Interval: 1/32, 1/16, 1/8, 1/4

ATSC-T

Constellation: 8VSB

DVB-C

Standard J83.A (DVB-C, J83.B, J83.C)

DVB-T

Standard: EN300744

Bandwidth: 6M, 7M, 8M

FFT mode: 2K, 8K

Constellation QPSK, 16QAM, 64QAM

Guard Interval 1/4, 1/8, 1/16, 1/32

FEC 1/2, 2/3, 3/4, 5/6, 7/8

IP Input

3*128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast

ASI Input

6*ASI input

Connector: BNC female, 75Ω

Signal Level: 200-800mVp-p

Packet Length:188 bytes

Maximum bit-rate: per port≤100Mbps

Number of Input Ports: Dual separate ASI ports

IP Output

Support 1*IP(8 MPTS/SPTS) UDP/RTP from Data 1 output

Mux

ONLY capable of multiplexing when running with max. 1 module in one device.

Maximum PID Remapping 180 input per channel PID remapping by automatically or manually

Accurate PCR adjusting

Capable of PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert

The Working Environment

Power Supply: AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Power Humidity: AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Operation temperature: 0 -50°C

Storage temperature: -20-80°C

Dimensions: 482mm*325mm*44mm

Weight: 5.5Kg

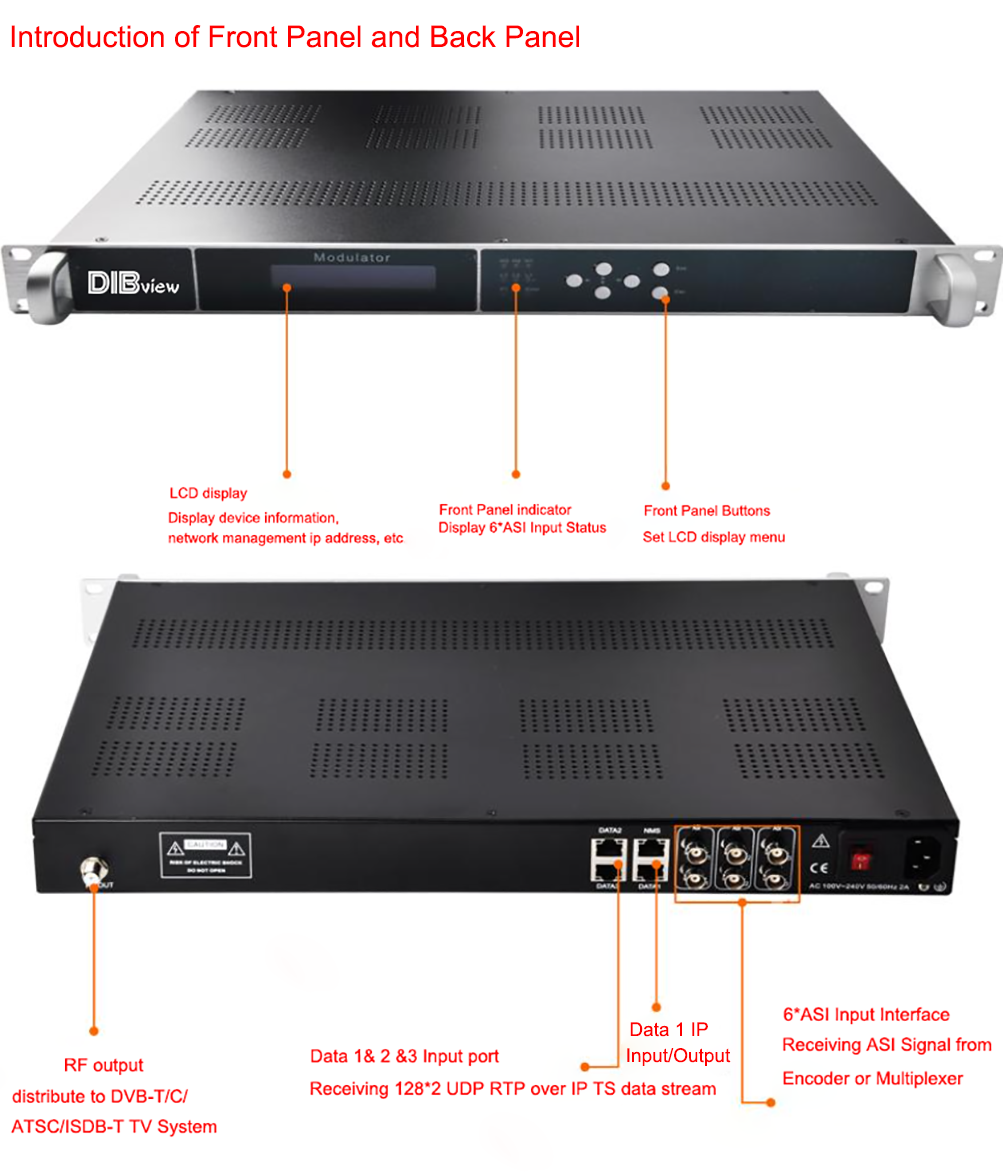

 Front Panel & Back Panel.png

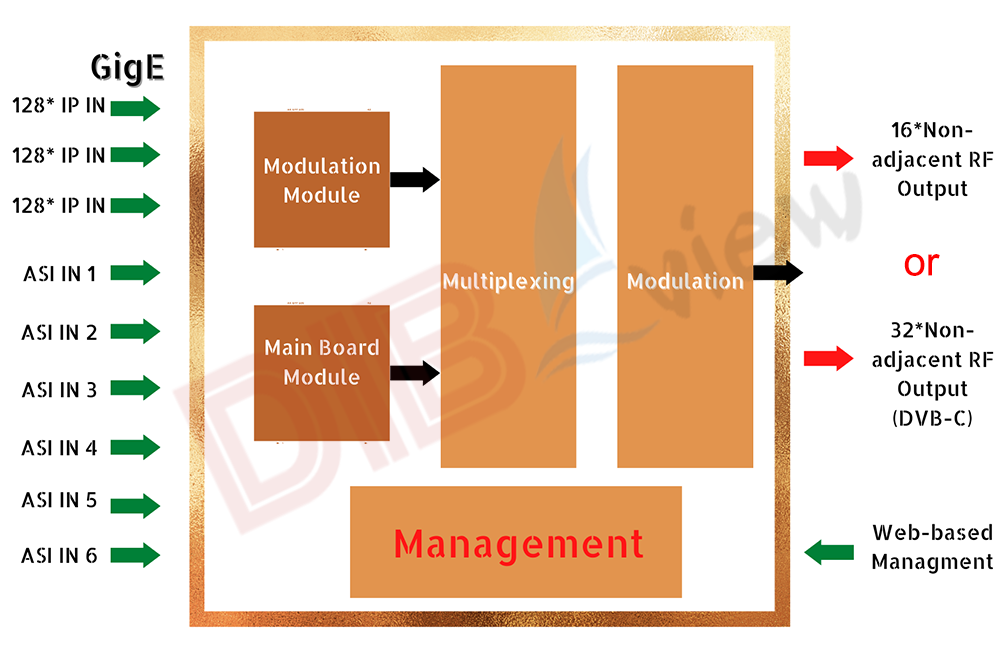

Diagram of OTV-IPMC 1003.png
