Your Location : Home >> Product Center >> SDI Encoder >> OTV-SS10 SDI IPTV Streaming Encoder

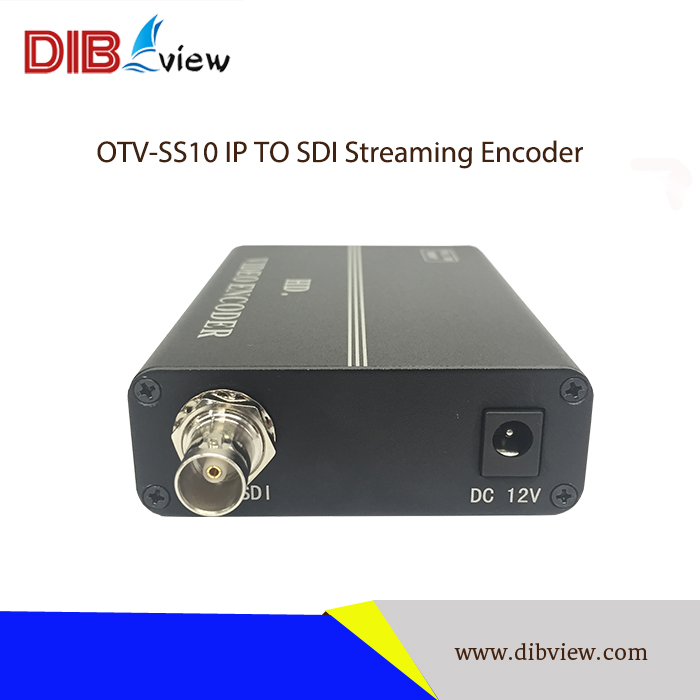

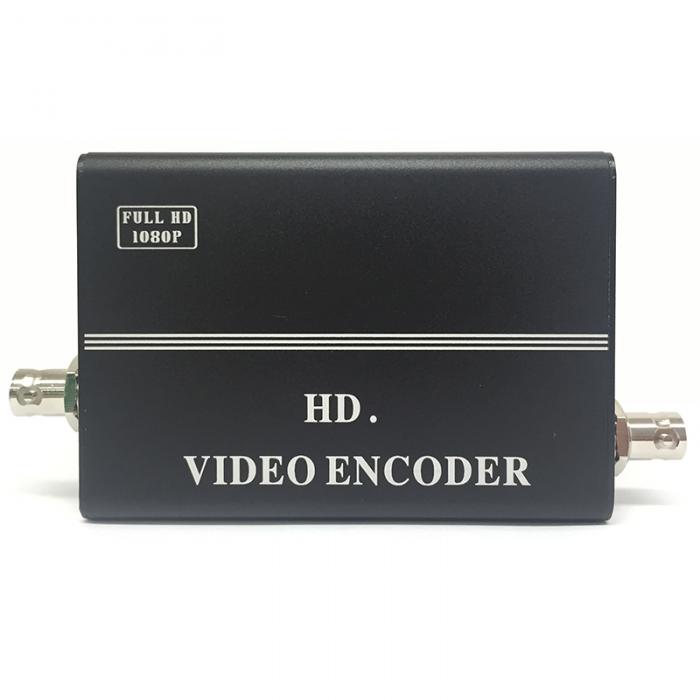

Name	OTV-SS10 SDI IPTV Streaming Encoder
Brand Name:	Dibview
Model Number:	OTV-SS10
Product name:	SDI IPTV Streaming Encoder
Input:	1SDI
Output:	IP With SRT/HLS/RTMP/UDP/RTP/HTTP
Video Encoding:	H.264 or H.265
Application:	IPTV Head-end System

Product Description

Overview:

OTV-SS10 H.264/H.265 IPTV Streaming Encoder (with built-in chargeable battery for optional) (with Wifi for optional) features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/AVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. OTV-SS10 IPTV Streaming Encoder accepts 1* SDI input, then output 4 channels TS over IP in H.264/H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.

OTV-SS10 H.265/H.264 Streaming IPTV SDI Video Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.

Not only 1-channel SDI, we also produce multichannel SDI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.

Key Features:

Video Input: 1-Channel SDI
Support up to 720P, 1080P HD video input
Support WIFI function with built-in chargeable battery for running up to 5 hours. (The specific working time would be depended by the settings).
Support H.264/H.265 Main Profile/H.264/H.265 High Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s
Support streaming resolution settings
GOP frame rate settings supported
Capable of image parameter settings
Insertable of logo and Scroll Caption; Adjustable of audio gain;
Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
Support up to 4*TS over IP stream out.
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-rate, Multi-resolution, Multi-protocol
Providing SRT/HLS/RTSP/HTTP/UDP or RTMP protocol
Support HDCP protocol, ONVIF Network Video Protocol
Support multiple equipments display at the same time on a computer
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Web-based management
Full-duplex mode 1000MNetwork interface adopts 100/1000M adaptive/full duplex mode

Technical Specifications:

Item	Description
Video Encoding
Video compression: H.264/H.265 AVC High/Main/Baseline Profile Level 4.0 Video inputs: 1*SDI for option Resolution: SDI main stream: 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480, 720x404,704x576,640x480,640x360,auto SDI sub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480, 640x300,352X288,320X240,320X180 auto Bit-rate: 16kbps~12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering
Audio Encoding
Audio compression: AAC, MP3 Sampling rate: Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bit Rate: 48000,64000,96000,128000,160000,192000,256000 Re-sample:32000,44100
IP Streaming Output
Transport protocol: TS over IP output, SRT, HLS, RTSP, HTTP, UDP and RTMP protocol
For each SDI to IP output, 4*TS over IP stream out(HLS/HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application) Connector: RJ45, 1000M
Management
Configuration Interface: web-based UI
Upgraded: via network
Connector: RJ45,100/1000M Ethernet interface.
The Working Environment
Voltage: 12V Consumption: less than 5W Built-in chargeable battery for running up to 5 hours. (The specific working time would be depended by the settings). Operating temperature: 0~45℃(operation), -20~65℃(storage) Dimensions: 103mm(W)71mm(D)25mm(H) Net Weight: 0.19 KG
