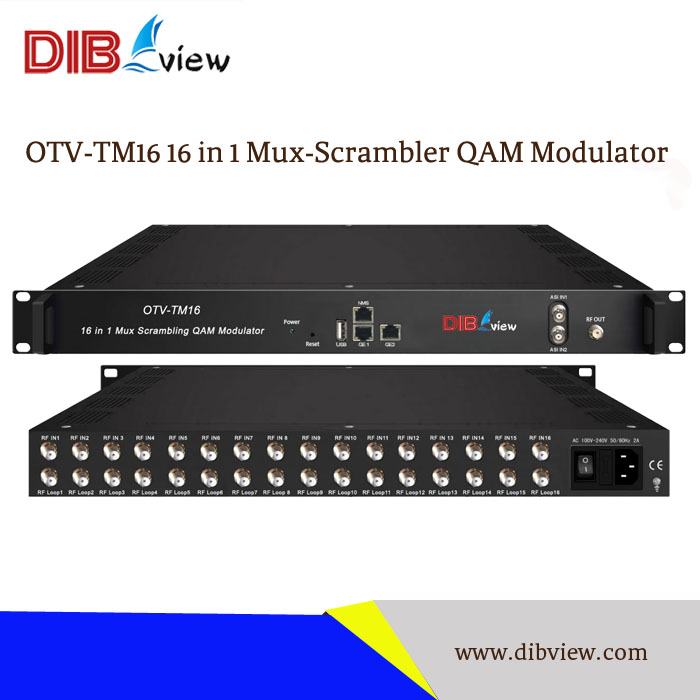

NameOTV-TM16 16 in 1 Mux-Scrambler QAM Modulator
Brand Name:Dibview
Model Number:OTV-TM16
Product Name:OTV-TM16 16 in 1 Mux-Scrambler QAM Modulator
Tuner Input:16DVB-S2/S/S2X (T/T2/ATSC/ISDB-T optional) FTA Tuner
IP INPUT:512IP(GE1 only) input over UDP and RTP protocol
ASI input:2ASI BNC interface
Output:8DVB-T or 16DVB-C RF Output for option
Maximum PID Remapping:128 input per channel
Max simulscrypt CA:4
Management:Web browser via Ethernet interface
Application:IPTV & OTT, Digital Signage Digital TV Broadcasting ,Hotel

Product Description

Overview:


OTV-TM16 is a high performance and cost-effective QAM modulator designed by DIBVIEW. It supports 16 DVB-C (DVB-T/-(T2)/-S/-S2/S2X, ATSC, ISDB-T optional) FTA tuner input, maximum 512 IP input through GE1 and TS input for re-mux through 2 ASI ports. After multiplexing, scrambling and QAM modulating, it gives 16 non-adjacent carriers output and 1 IP (MPTS) output through GE1.



OTV-TM16 is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation CATV broadcasting system.


Key Features:


  • Up to 16*DVB-S2X/S2/S (T/T2/ATSC/ISDB-T optional) FTA Tuner, 2*ASI and 512*IP(GE1 only) input over UDP and RTP protocol.

  • 8*DVB-T or 16*DVB-C RF Output for option.

  • Capable of scrambling only for DVB-C Modulation.

  • 1 IP (MPTS) output over UDP and RTP/RTSP, as mirror of one carrier

  • Up to 16 groups multiplexing, 16 groups scrambling and 16 groups QAM modulation

  • Excellent RF output performance index, MER≥40db

  • Support PSI/SI editing and inserting

  • Offering adjust the PCR in precisely.

  • Redundancy Power Supply (optional)

  • Easy to configure via Web-based management, updates via web


Technical Specifications:


Item

Description

Input

16 DVB-C (DVB-T/-(T2)/-S/-S2/-S2X, ATSC, ISDB-T Optional) FTA Tuner

512 IP input through GE1 over UDP and RTP protocol

2 ASI input, BNC interface

Tuner Optional

Multi-mode tuners switchable(NEW)

DVB-C

Standard: J.83A(DVB-C), J.83B, J.83C

Frequency In: 60~890MHz

Constellation: 16/32/64/128/256 QAM

DVB-T/T2

Frequency In: 6/7/8 M bandwidth

Bandwidth: 60~890MHz

ISDB-T

Frequency In: 60~890MHz

Version 1: DVB-S/S2

Frequency In

950~2150MHz

Symbol rate

QPSK 1~45Mbauds

8PSK 1~45Mbauds

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

Version 2: DVB-S/S2/ S2X

& ATSC-T



DVB-S

Frequency In: 950~2150MHz

Symbol rate: 0.5~45Msps

Signal Strength: -65~-25dBm

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

Constellation: QPSK

Max input bitrate: ≤129 Mbps

DVB-S2

Frequency In: 950~2150MHz

Symbol rate: QPSK/8PSK/16APSK: 0.5~45 Msps, 32APSK: 0.5~40Msps;

FEC:

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9,  9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Constellation: QPSK,   8PSK, 16APSK, 32APSK

Max input bitrate: ≤129 Mbps

DVB-S2X

Frequency In: 950~2150MHz

Symbol rate: QPSK/8PSK /16APSK: 0.5~45 Msps, 8APSK/32APSK: 0.5~40Msps

FEC:

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4,   5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 ,   2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6,   8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9

Constellation: QPSK, 8PSK, 8APSK, 16APSK, 32APSK

Max input bitrate: ≤129 Mbps

ATSC-T

Frequency In: 30~1000MHz

Bandwidth: 6M

Bandwidth: 8VSB

Multiplexing

Maximum PID Remapping

360 output per channel

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Generate PSI/SI table automatically

Scrambling Parameters

Max. Simulscrypt CA

4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation Function

QAM Channel

16 non-adjacent carriers output

Standard

EN300 429/ITU-T J.83A/B

MER

≥40db

RF frequency

50~960MHz, 1KHz step

RF output level

-20~+10dbm(87~107 dbµV),0.1db step

Symbol Rate

5.0Msps~7.0Msps, 1ksps stepping

J.83A Constellation

16/32/64/128/256QAM

J.83B Constellation

64/256 QAM

J.83A Bandwidth

8M

J.83B Bandwidth

6M

IP Streaming Output

16 RF output (F type interface)

1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only), as mirror of one carrier

Control and Monitoring

Network management (WEB)

Chinese and English language

Ethernet software upgrade

The Working Environment

Power Supply

AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Power Humidity

9~ 89% non-condensed

Operation temperature

0 -50°C

Storage temperature

-20-80°C

Dimensions

482mm x 300mm x 44.5mm

Weight

5.5Kg

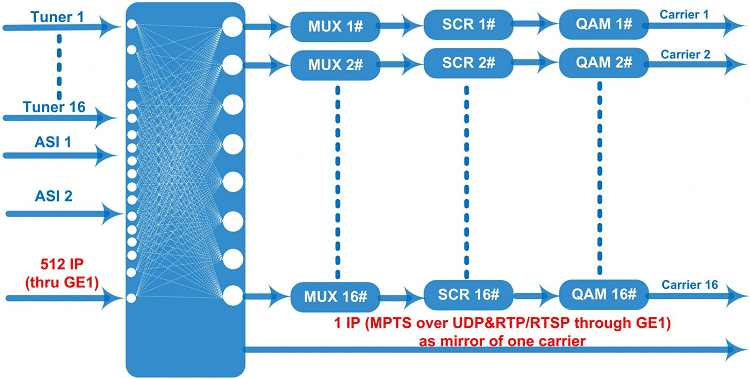

Key Diagram:


OTV-TM16 Modulator.png
