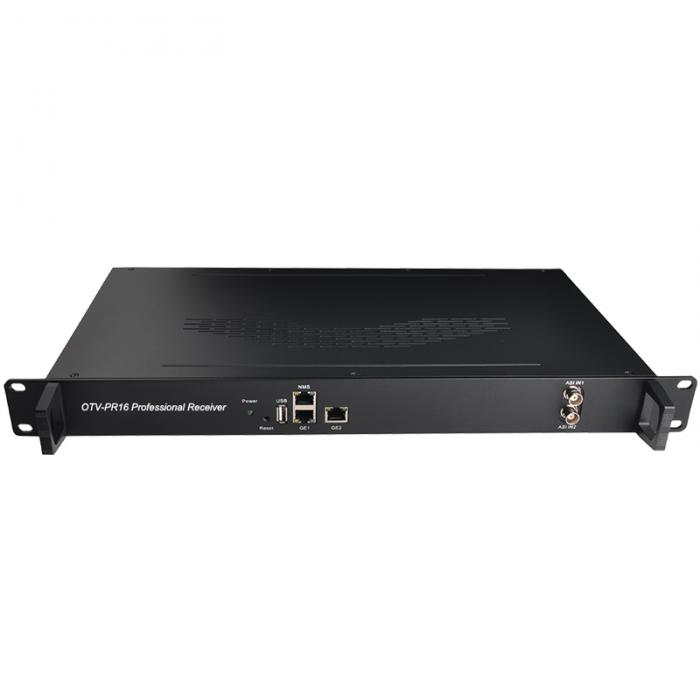

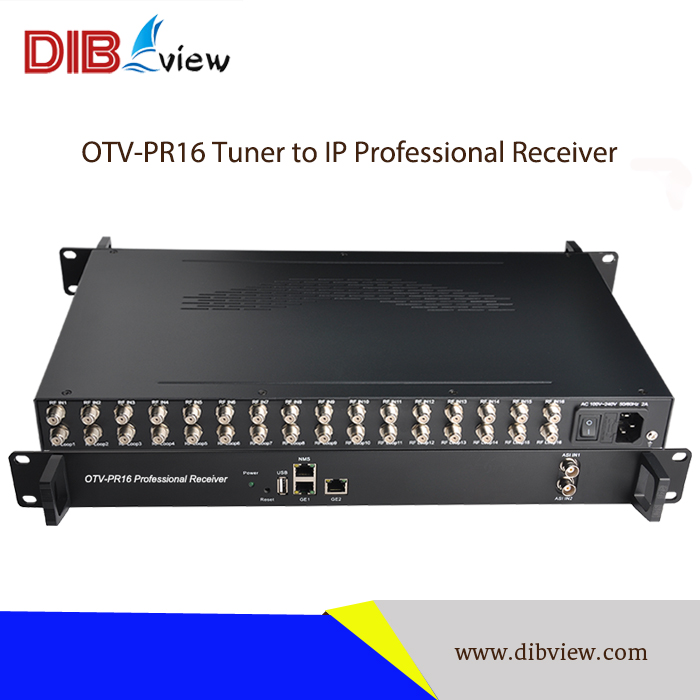

Name	OTV-PR16 16 Channel Professional Receiver
Brand Name:	Dibview
Model Number:	OTV-PR16
Product Name:	16 Channel Professional Receiver
Input 1:	16 FTA DVB-S/S2/S2X + 2 ASI
Input 2:	16 DVB-C/T/T2/ISDB-T/ATSC-T tuner
Output:	16 MPTS or 512 SPTS IP output
Application:	Digital TV IPTV Head-end System
Support:	BISS descrambling
Supports:	DiSEqC function
Optional 1:	16 tuners input +2 ASI input---SPTS output
Optional 2:	14 tuners input +2 ASI input --- MPTS output
Optional 3:	16 tuners input --- MPTS output
Application:	DTV Headend System

Product Description

Overview:

OTV-PR16 Dibview 16 Channel professional receiver can accepts 16*Tuners (DVB-S/S2/S2X/T/T2/C/ISDB-T/ATSC-T optional) input, demodulate to TS and encapsulated output IP packet. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol through different IP address and ports. At the same time, it can capable of multiplexing, BISS descrambling and DisEqc. Largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction.

OTV-PR16 16 Channel Professional Receiver enables service providers to offers a wide range of cost-effetive, high-quality and reliable services to subscribers with a lower cost, It can be widely used in DTV front-end system and remote front-end systems.

Key Features:

Tuner inputs support DVB-S/S2/S2X,DVB-T/T2,DVB-C,ISDB-T/Tb, ATSC-T, DTMB for option, 2*ASI Input
2 GigE mirrored output, up to 850Mbps---SPTS mode
Offering PID filtering, re-mapping (Only for SPTS output)
2 independent GigE output ports, GigE1 + GigE2---MPTS mode
Support 'Null PKT Filter' function (Only for MPTS output)
Capable of BISS descrambling and DisEqc function
16 MPTS or 512 SPTS output mode (MPTS and SPTS output switchable)
Providing web-based management

Technical Specifications:

Item	Description
Transport Stream Input
Optional 1:16 tuners input +2 ASI input---SPTS output Optional 2:14 tuners input +2 ASI input --- MPTS output Optional 3:16 tuners input --- MPTS output
Multi-mode tuners switchable (New Type)
DVB-C	Frequency In: 60~890MHz Standard: J.83A(DVB-C), J.83B, J.83C Constellation: 16/32/64/128/256 QAM
DVB-T/(T2)	Frequency In: 60~890MHz Bandwidth: 6/7/8 M bandwidth
ISDB-T	Frequency In: 60~890MHz
Version 1
DVB-S	Frequency In: 950-2150MHz Symbol rate: 1~45 Msps FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Constellation: QPSK
DVB-S2	Frequency In: 950-2150MHz Symbol rate: 1~45 Msps FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK
Version 2 (New Type)
DVB-S	Frequency In: 950~2150MHz Symbol rate: 0.5~45Msps Signal Strength: - 65- -25dBm FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Constellation: QPSK Max input bitrate: ≤125 Mbps
DVB-S2	Frequency In: 950~2150MHz Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps 32APSK: 0.5~34Msps FEC: QPSK: 1/2,3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK, 16APSK, 32APSK Max input bitrate: ≤125 Mbps
DVB-S2X	Frequency In: 950~2150MHz Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~34Msps FEC: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 Constellation: QPSK, 8PSK, 8APSK, 16APSK, 32APSK Max input bitrate: ≤125 Mbps
ATSC-T Terrestrial Input Option

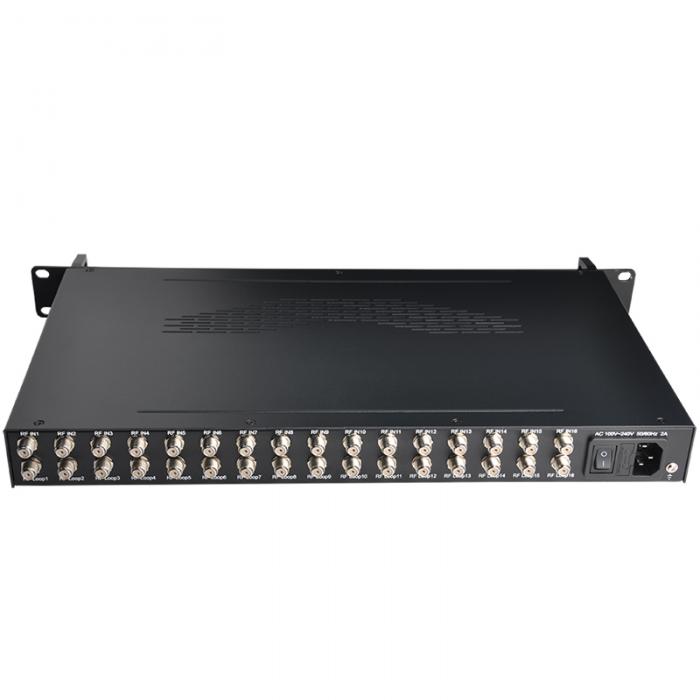

Number of Inputs	16x RF Input (with Loop Out each)
Connector Type	F-Type (Female, 75Ω)
Standards	ATSC A-53
Constellations	8VSB, 16VSB
Bandwidth	6MHz
Frequency Range	54 to 900MHz
BISS Descrambling
Mode 1,Mode E (Up to 850Mbps)(descramble individual program)
DVB ASI Output
Numbers of ASI	2 x ASI Output
Connector Type	BNC (Female, 75Ω)
Data Format	188/204 Bytes MPEG-TS packet length
Bit Rate	1.5 to 100Mbps each
IP Streaming Output (below two options switchable)

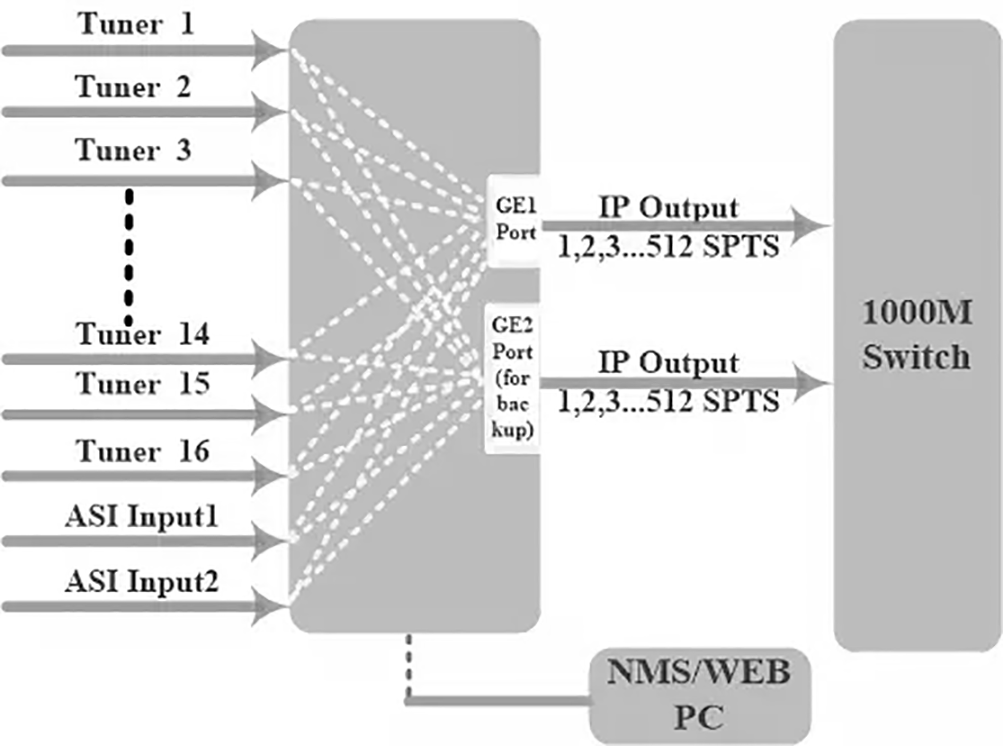

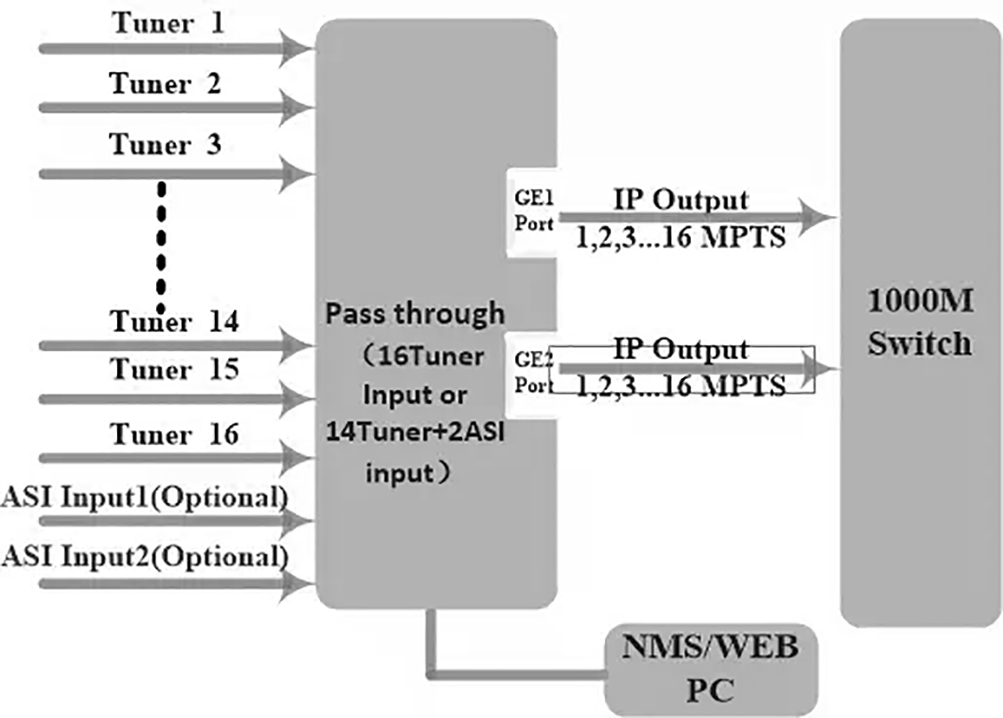

Output option1: 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast Output Option2: 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast
Connector	GigE port(100/1000M base-T Ethernet),RJ45
Transmission protocol	UDP, RTP, ARP, ICMP, IGMP protocol
Transmission mode	Unicast or Multicast
Supported Protocol	UDP, RTP, ARP, ICMP, IGMP
TS packet Length	7 x 188Byte
Control and Monitoring
Interface	1*RJ-45,10/100 Base-T network interface
Remote control	web-based management
Local operation	keyboard on front panel, LCD display
The Working Environment
Power Supply	AC110V±10%,50/60Hz or AC 220V±10% 50/60Hz
Power Humidity	9~ 89% non-condensed
Operation temperature	0 -50°C
Storage temperature	-20-80°C
Dimensions	482mm x 410mm x 44mm
Weight	4Kg
