NameISE04 ProHD 4 Channel Video Streaming Encoder
Brand Name:Dibview
Model Number:ISE04
Product Name:ISE04 ProHD 4 Channel Video Streaming Encoder
Input:4 HD Interface
Output IP Protocol:HLS, RTSP, HTTP, UDP and RTMP
Video Encoding:H.264 AVC
Audio Encoding:AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
Resolution:Up to 1080P Full HD@60HZ
Configuration:By using Web
Bitrate:VBR/CBR
Online Testing:Yes, support

Product Description

Overview:


In growing demand for live and local coverage presents new challenges for today's broadcasters, to get low latency live video from remote locations to broadcast centers for production is a trend, it need to deliver multiple broadcast channels and other internal streams to screens anywhere, anytime, while also reducing complexity and driving efficiency across all platforms.



DIBVIEW ISE04 ProHD Video Streaming multi-screen multi-protocol Encoder are designed to meet the increasing demand for high quality video delivery to Internet and all kinds of terminal devices. Our HD H.264 eight channel IPTV Streaming Encoder supports HD/SD audio and video collecting by using 4 Channel HD HDMI input. For signal source, each channel of HDMI input supports output 2 groups IP streaming with two different resolution (up to 1080p/60fps) and two different bit rates to meet different size screen and different bandwidth condition. Each groups of IP stream supports kinds of main protocols output (HTTP, HLS, RTMP, , RTSP, UDP), there multi-view broadcast streams to deliver more impactful and unique content to viewers.



Besides that, ISE04 also support to push streaming to Facebook Server, YouTube Server, Ustream Server, Windows Media Server, Adobe Flash Server, Wowza Media Server and other servers based on standard UDP/HLS/RTSP/RTMP/HTTP/ONVIF protocols. Further more, to provide username, password matching function that required from destination server, to make the system working efficiently.

With it's powerful program processing capabilities and leading technology advantages, ISE04 ProHD 8 Channel Streaming Encoder meets the market demands such as broadcasting, VOD, education, medical care, health center, live broadcast and so on, help to save bandwidth resources for operators, and while also providing users with a better viewing experience.


Key Features:


  • Support image parameter settings

  • Input signal: 4 Channel HDMI work simultaneously

  • Supports high-definition video input of up to1080P@60fps

  • Video format: HD H.264/MPEG-4 AVC, up to 1080P@60fps

  • Audio format: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3

  • Supports the GOP frame rate setting

  • Main bitstream and sub bit stream can be transmitted using different network protocols

  • Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMI channel input

  • Audio input: support 4*HDMI embedded audio

  • Support RTMP User name and Pass word for authentication of IPTV Server

  • Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;

  • Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression

  • Bitrate mode: CBR/VBR

  • Capable of image parameter settings

  • Configurable of Multi-Screen, Multi-Protocol HLS, HTTP, RTSP, UDP and RTMP, Low bitrate with high quality image.

  • Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

  • Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).

  • Supports the HDCP protocol and supports Blu ray HD

  • Support ONVIF Network Video Protocol

  • Support multiple equipment display at the same time on a computer

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

  • WEB interface authority management

  • Network interface adopts 100/1000M adaptive/full duplex mode


Technical Specifications:


Item

Description

Video Codes

Video format

H.264/AVC High/Main/Baseline Profile Level 4.0

Frame rate

Up to 60fps

Recommended to be setup under the max. capability of 4CH@60fps

Video input

Video input: 4*HDMI (HDCP compatible)

Resolution

Main Stream

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,

720x480,720x404,704x576,640x480,640x360, auto

Second Stream

720x576,720x540,720x480,720x404,704x576,640x480,

640x300,352X288, 320X240,320X180 auto.

Bit-rate: 16kbps~12Mbps, CBR/VBR

Video pre-processing: Noise reduction, Sharpen, Filtering

Audio Codes

Audio compression

AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3

Audio input

4 HDMI embedded

Sampling accuracy

24-bit

Bit rate

48kbps~320kbps

Sample-rate

44.1KHz, 48KHz

IP Streaming Output

Transport protocol

TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol

For each HDMI to IP output

Supporting output 2 groups TS over IP streams

(for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled).

with 2 different resolutions (up to 1080p)

and 2 different bitrates to meet different size screen and different bandwidth condition.

Connector

RJ45, 1000M

The Working Environment

Power Supply

DC 12V

Operation temperature

0 -50°C

Storage temperature

-20-60°C

Dimensions

236mm x 112mm x 60mm

Weight

0.8Kg

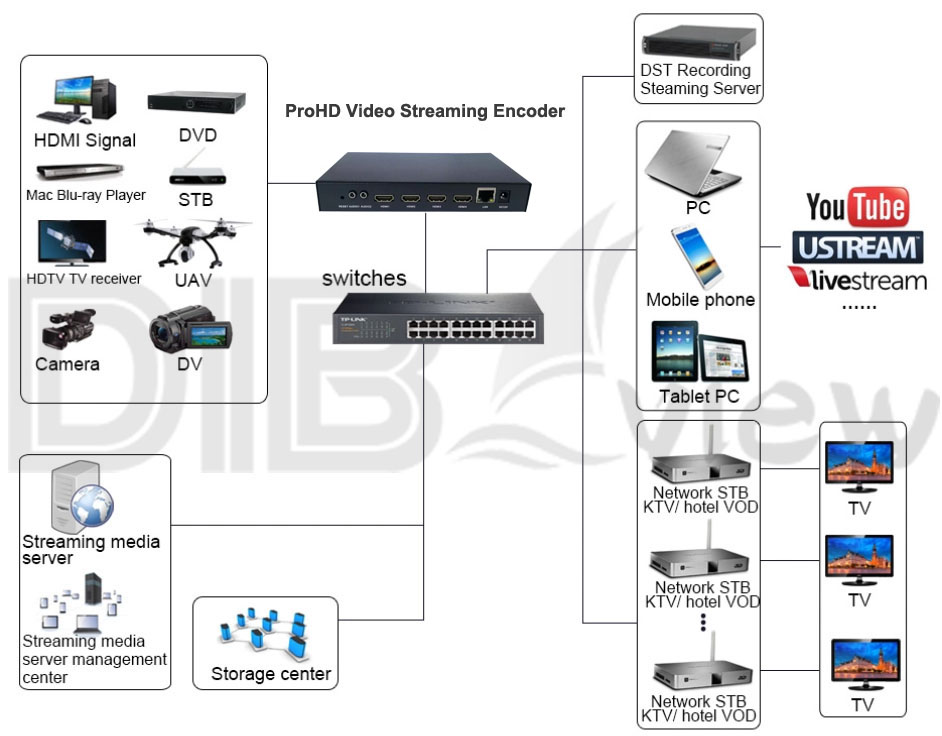

Application:


HD video via private IP networks

Remote live Rebroadcasts and real-time transmission

Hotel, Campus, Enterprise IPTV & OTT system

Head-end system of Digital TV branch network

Digital TV Broadcasting System

CATV Broadcasting system

Edge side of Digital TV backbone network

Digital Signage Project

Remote Video Conference

Video Monitoring

Digital TV Programs Transmission

Live Streaming

Internet TV

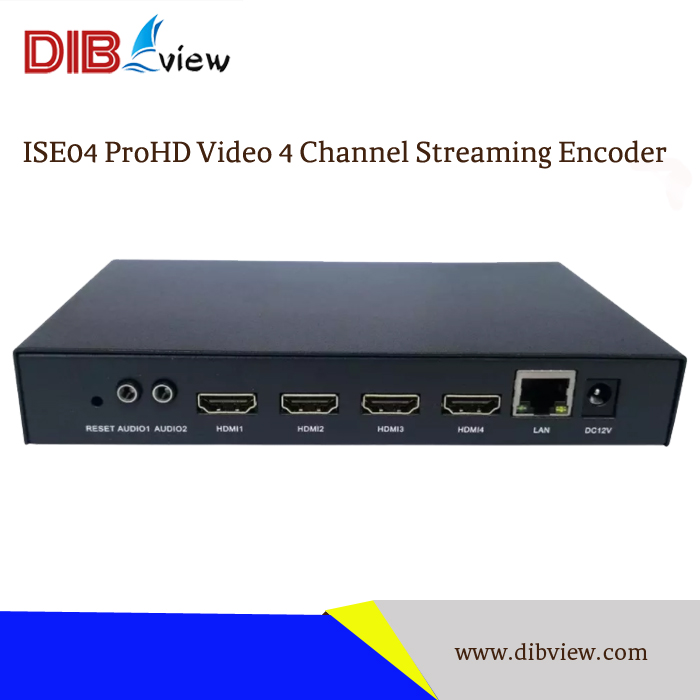

ISE04 ProHD Video Streaming Encoder.jpg
