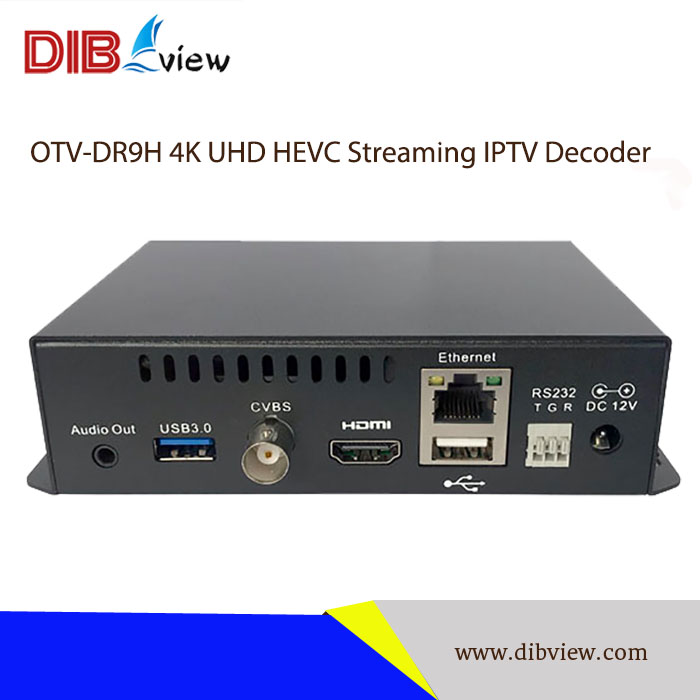

NameOTV-DR9H H.265 HEVC UHD 4K Streaming IPTV Decoder
Product Name:OTV-DR9H H.265 UHD HEVC 4K Streaming Decoder
Decoding:H.265 & H.264
USB3.0:Yes, support
Application:For Real Time IPTV

Product Description


OTV-DR9H H.265 HEVC 4K Streaming Decoder is DIBVIEW professional IPTV decoder developed based on the embedded hardware platform. This decoder with 1*HDMI output port, which also support H.265, H.264, MPEG4, MPEG2 and other mainstream encoding format decoding, adding the strong decoding performance, excellent network agility, it become more and more popular, besides that, it also supports 4*1080P or 9*720P resolution output.


OTV-DR9H H.265 HEVC 4K Streaming Decoder, support 1 channel 4K Ultra HD output, it is a new generation decoder. The product adopts embedded operating system, which has the characteristics of stability and reliability, high real-time performance, low power consumption, flexible group network, and strong expandability. Currently it can be widely used in variety of field such as Hotel IPTV system, remote education, news interview etc


Key Features:

  • Support H.265, H.264, MPEG4, MPEG2 and other mainstream code stream decoding;

  • Powerful decoding capabilities, support simultaneous real-time decoding of 4 channels of 1080P, or 9 channels of 720P and below resolution;

  • HDMI output resolution supports up to 4K (3840*2160@30HZ);

  • Support SRT/HLS/RTMP/RTSP/HTTP/UDP/MULTICAST/Onvif and other mainstream network protocols;

  • Support standard TS stream format audio and video stream decoding

  • Support G.711, AAC-LC, HE-AAC, MPEGI-Layer2 audio format decoding

  • Supports URL decoding from encoding devices using URL method;

  • Supports platforms to integrate devices in SDK.

Technical Specifications:



Video Parameters

Output Resolution

4K: 3840*2160@30Hz; 2K:2560*1600@60Hz

1080P:1920*1080@60/50Hz; UXGA:1600*1200@60Hz;

SXGA:1280*1024@60Hz; 720P:1280*720@60/50Hz;


Encoding & Decoding

Decoding Type

HEVC/H.265 Or H.264 /AVC,Mpeg-2, Mpeg-4

Decoding Ability

1CH 4K@30Hz, 4CH 1080P30, or 9CH 720P and below resolutions

Audio Decoding

HE-AAC, AAC-LC, G.711A, MPEG1, Layer2

Picture Processing

Picture Segmentation

1/2/3/4/6/8/9 /Customized


Support CMI, SRT,   Onvif, TCP, RTSP, RTMP, HTTP, UDP/Multicast

Peripheral Interface

Video Output


Audio Output

1*Output, 3.5mm interface (level: 2.0Vp-p, impedance: 1KΩ)

SD Card

1*SDXC interface, support 128G memory card

Network Port

1*10M/100M adaptive network interface

USB Port

1*USB3.0 Host and 1 USB2.0 Host

Low-speed Interface

1-Ch RS-232

The Working Environment



Gross Weight




Input Voltage

DC5.5/2.1 interface, DC12V

Power Consumption

≤ 8W


Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference

IPTV/OTT system

Government, Education and Music

Digital Signage Project

Video Monitoring
