Overview:

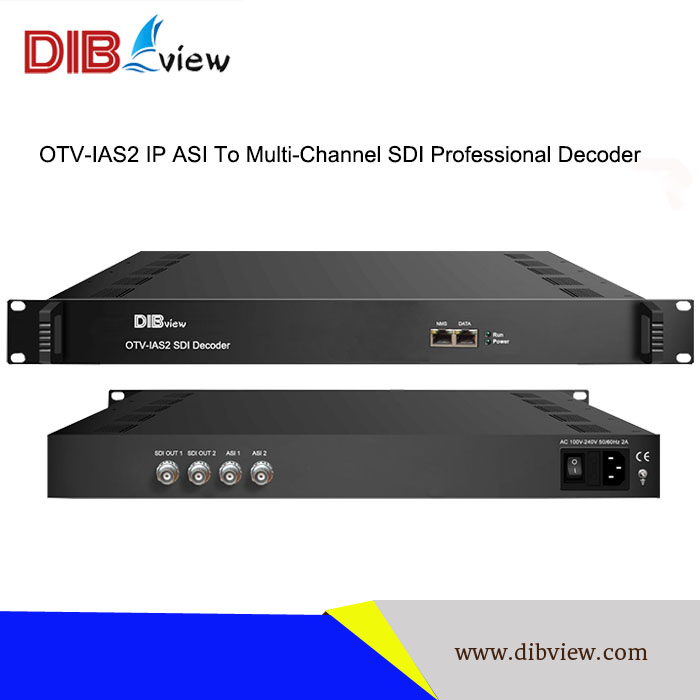

OTV-IAS2 IP ASI To Multi-Channel SDI Professional Decoder provides a high-integrated and cost-effective solution for digital TV head-end system project. Which is a 1-U case supporting both IP and ASI input. After decoding process, it outputs 2 channels of HD/SD-SDI videos with dual stereo audios embedded in each port. It also supports 1*IP (MPTS) output and featured with dual bi-directional ASI ports for input and output alternatively, capable of MPEG-2 and MPEG-4 AVC/H.264 Decoding.

Based on the users' request for multi-channels decoding with the TSoIP or ASI input signal source, the OTV-IAS2 IP ASI To Multi-Channel SDI Professional Decoder can work properly together with other head-end equipments for kinds of system applications including DVB, IPTV/OTT, Hotel TV, Industrial surveillance, etc.

With the newest and advanced IP stream processing technology, DIBVIEW's OTV-IAS2 IP ASI To Multi-Channel SDI Professional Decoder becomes a very cost-effective product in the worldwide market of multi-channels decoder.

Key Features:

• Low power consumption, rack-mount design

• 2*IP input and 1*IP output

• 2 bi-directional ASI ports with input and output alternatively

• 2*HD/SD-SDI decoding out with dual stereo audios embedded in each port

• Support MPEG-2 and MPEG-4 AVC/H.264 Decoding for video

• MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough for audio

• Support CC/Subtitle

• Easy manage with web-server remote control

• Management by NMS

Technical Specifications:

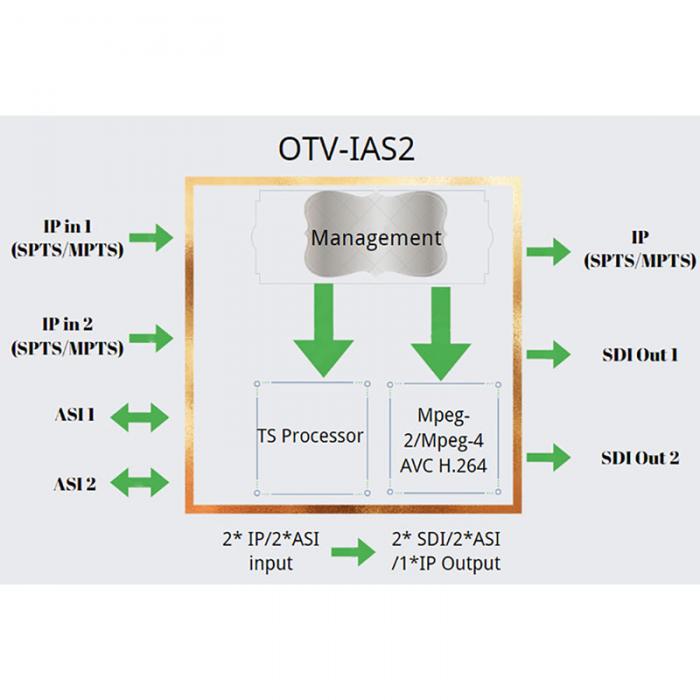

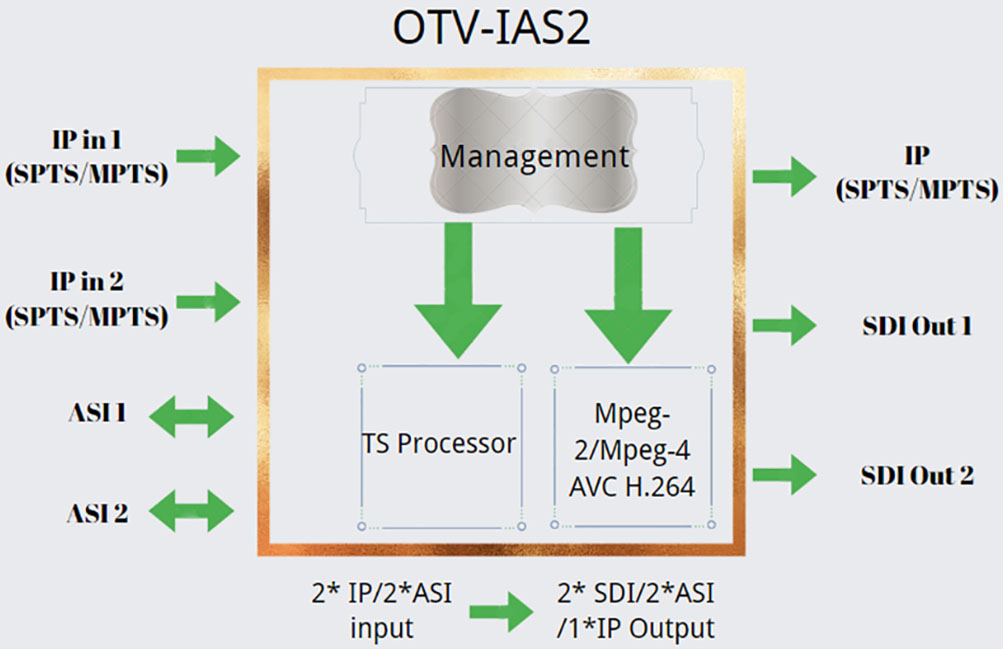

Key Diagram:
