Overview:

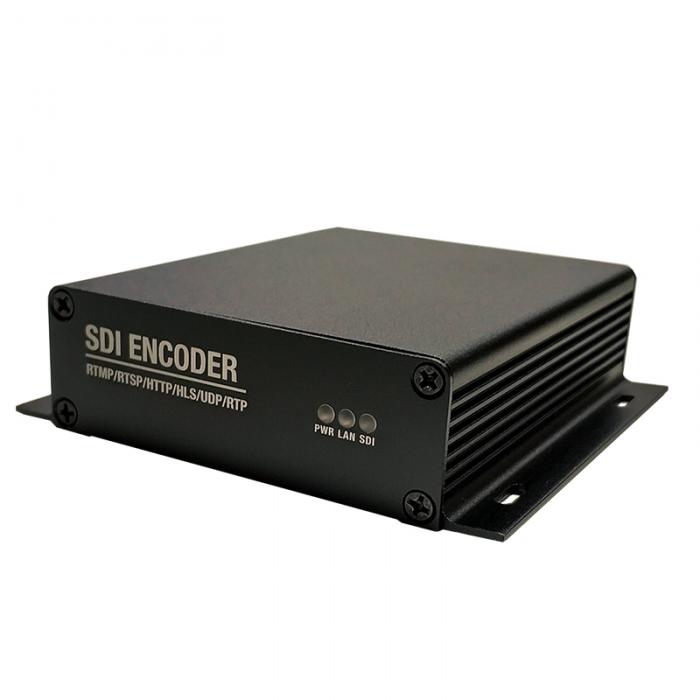

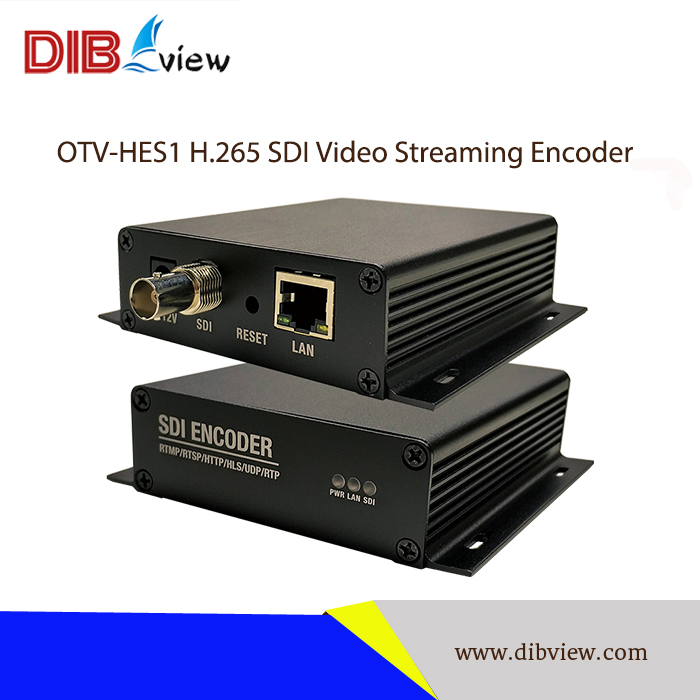

OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder is DIBVIEW newest professional HD audio and video encoding device with powerful functionality, which is equipped with 1 channel SDI input, multi-screen multiprotocol series IP Encoder are designed to demand the increasing needs for video delivery to Internet and mobile devices.

OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder supports audio and video collection by 1-Channel SDI input. For SDI input, each channel of SDI input supports output 4 groups IP streams with four different resolution (up to 1080p) and another four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (HLS, RTMPs, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, and some other servers based on HLS/UDP/RTSP/RTMPs/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, to avoid the streaming which does not authorized.

OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.

Not only 1-channel SDI, we also produce multichannel SDI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.

Key Features:

• Video Input: 1-Channel SDI

• Video Compression: H.265/H.264 Baseline Profile/Main Profile/High Profile, up to Full HD 1080P@60fps

• Dolby AC3 audio compression

• Support AC3, AAC, AAC+, AAC++, MP3, MP2 audio compression

• Support output up to 4 groups TS over IP streams with 4 different resolutions and 4 different bitrates by each SDI channel input

• Support RTMP User name and Pass word for authentication of IPTV Server

• Capable of OSD settings for logo, upload 4 LOGO options, text and Scroll Caption; Adjustable of audio gain;

• Bitrate mode: CBR/VBR

• Capable of image parameter settings

• Configurable of Multi-Screen, and Multi-Protocol HLS/HTTP/RTSP/RTMPs/FLV/ ONVIF/UDP Multicast /RTP Multicast

• Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

• Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMPs protocol with software players (such as VLC).

• Supports the HDCP protocol and supports Blu ray HD

• Support multiple equipment display at the same time on a computer

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

• WEB interface authority management

• Network interface adopts 100/1000M adaptive/full duplex mode

Technical Specifications:

Applications:

Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Streaming

Government, Education and Music

Digital Signage Project

Video Monitoring
